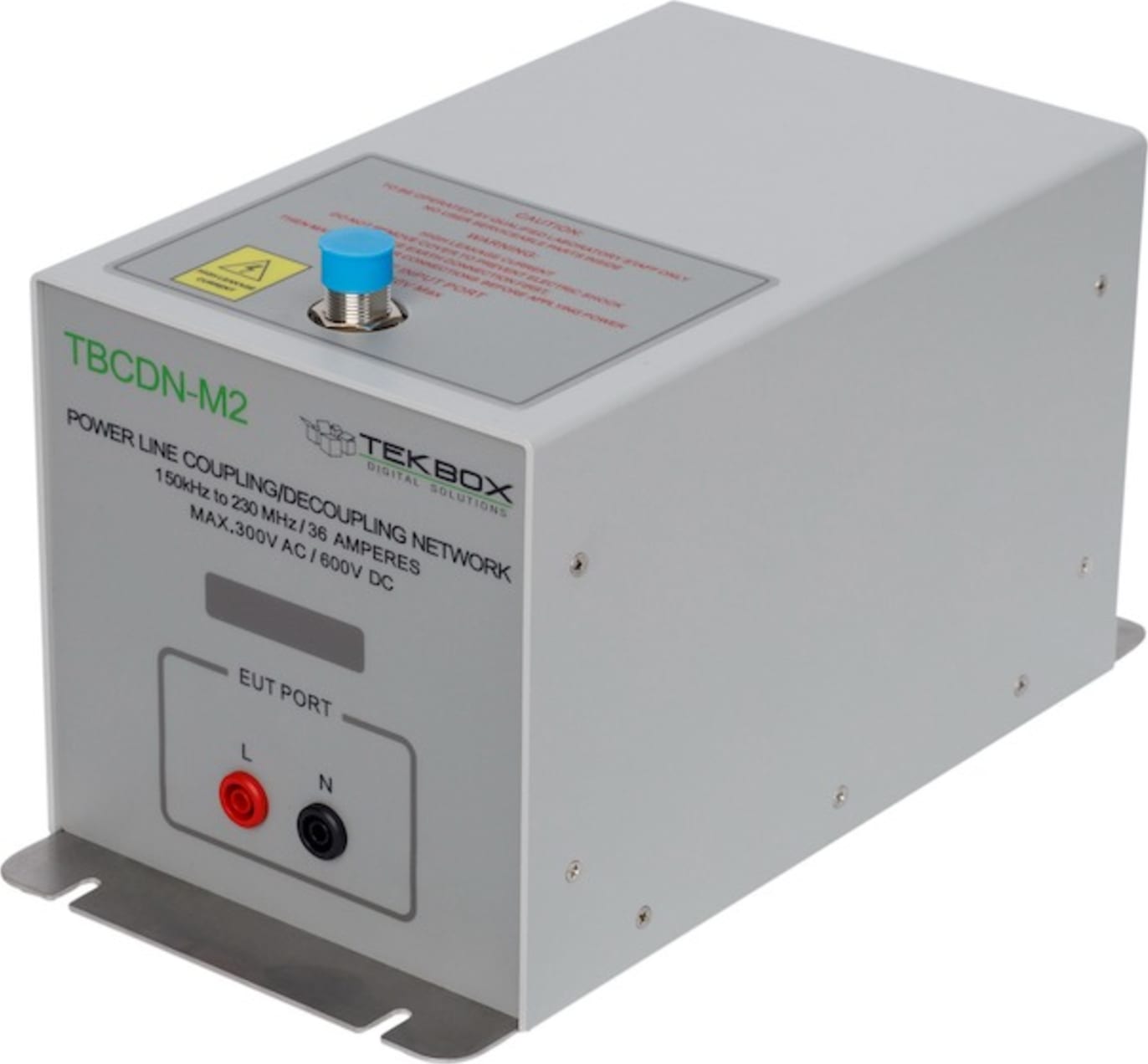

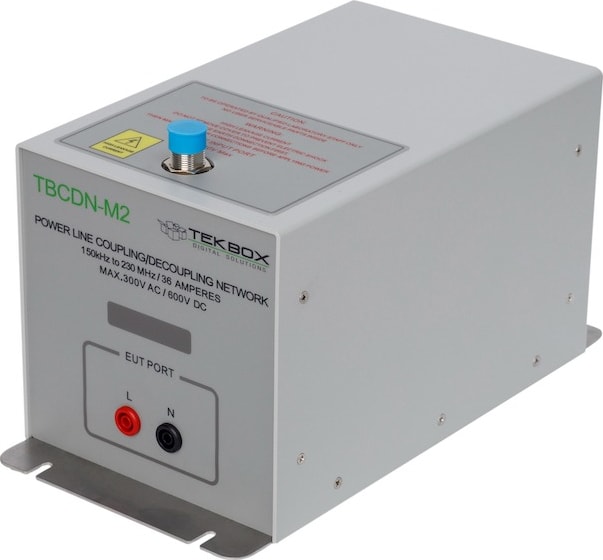

TekBox TBCDN-M2 - Coupling Decoupling Network M2 (36A Max Current)

0 reviews | Model: TekBox TBCDN-M2


Coupling Decoupling Network M2

  • Maximum supply voltage: 300V AC, 600V DC
  • Maximum current: 36A
  • Frequency range: 150 kHz - 230 MHz
  • Maximum RF input power: 6.5W CW
  • Maximum RF input voltage: 32 V
  • Common mode impedance: 150 kHz - 24 MHz: 150 Ω ± 20 Ω; 24 MHz - 80 MHz: 150 Ω + 60 Ω / - 45 Ω; 80 MHz - 230 MHz: 150 Ω ± 60 Ω
  • Voltage Division ratio: 150 kHz - 80 MHz: 9.5 dB ± 1 dB; 80 MHz - 230 MHz: 9.5 dB + 3 dB / - 2 dB
  • RF input connector: N - female
  • EUT / AE connectors: 4 mm banana safety jacks, 4mm slots in the base plate for GND connection
  • Housing material: powder-coated aluminum, stainless steel base plate
View Product Details

Your Price: $1,145.00

Sign-in for EDU Pricing!

In Stock:
