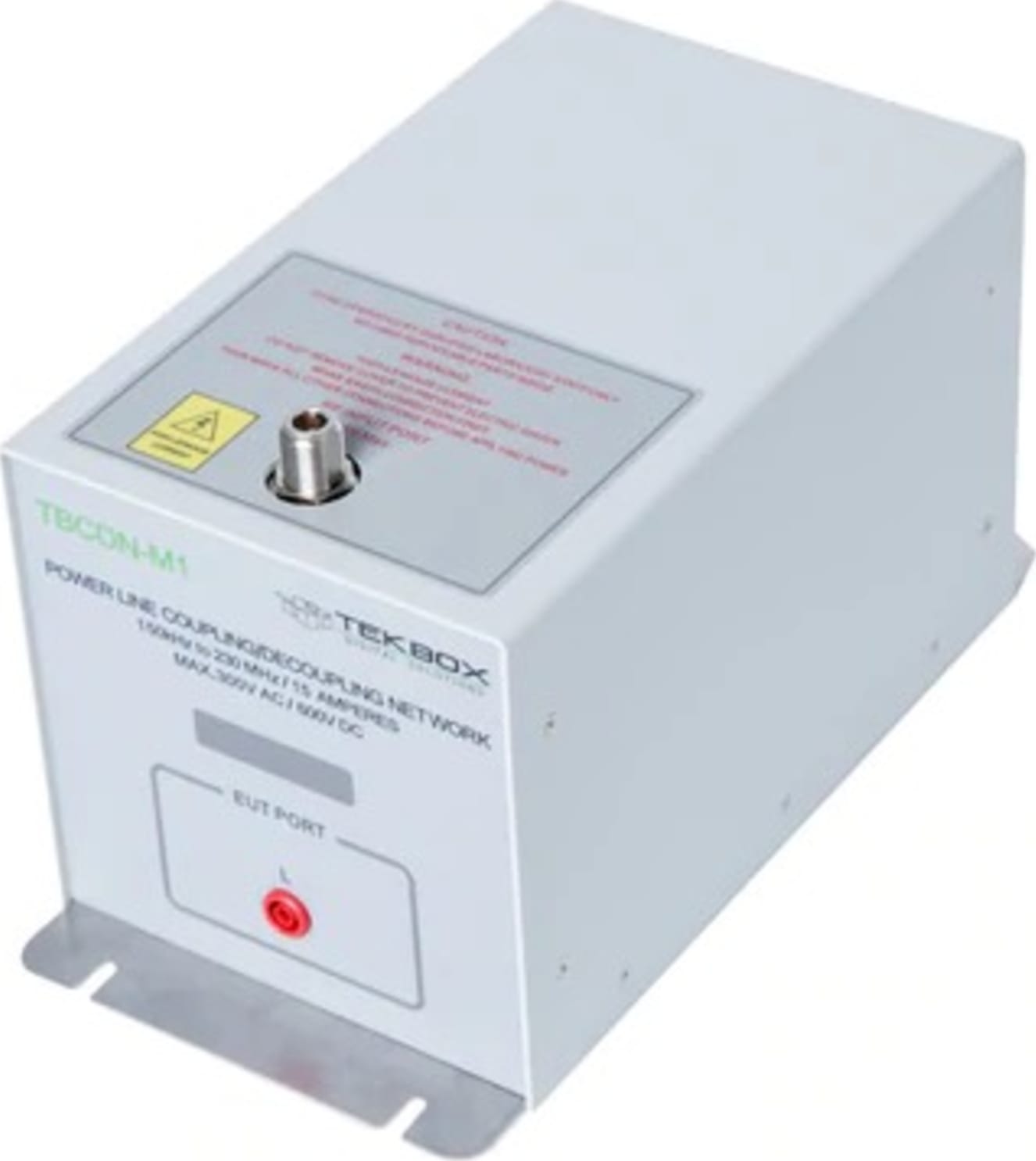

TekBox TBCDN-M1 - Coupling Decoupling Network M1 (15A Max Current)

Name: TekBox TBCDN-M1 - Coupling Decoupling Network M1 (15A Max Current)
Brand: TekBox
SKU: TekBoxTBCDN-M1
Price: 985.00 USD
Availability: InStock

0 reviews | Model: TekBox TBCDN-M1

Compare

Coupling Decoupling Network M1

Maximum supply voltage: 300V AC, 600V DC
Maximum current: 15A
Frequency range: 150 kHz - 230 MHz
Maximum RF input power: 6.5W CW
Maximum RF input voltage: 32 V
Common mode impedance: 150 kHz - 24 MHz: 150 Ω ± 20 Ω; 24 MHz - 80 MHz: 150 Ω + 60 Ω / - 45 Ω; 80 MHz - 230 MHz: 150 Ω ± 60 Ω
Voltage Division ratio: 150 kHz - 80 MHz: 9.5 dB ± 1 dB; 80 MHz - 230 MHz: 9.5 dB + 3 dB / - 2 dB
RF input connector: N - female
EUT / AE connectors: 4 mm banana safety jacks, 4mm slots in the base plate for GND connection
Housing material: powder-coated aluminum, stainless steel base plate

View Product Details

Your Price: $985.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	TekBox TBCDN-M1 Coupling Decoupling Network M1	TekBox TBCDN-M2 Coupling Decoupling Network M2	TekBox TBCDN-M3 Coupling Decoupling Network M3	TekBox TBCDN-M4 Coupling Decoupling Network M4 (36A Max Current)
Price	$985.00	$1,145.00	$1,275.00	$1,375.00
In Stock	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Add to cart

TekBox TBCDN-M1 Accessories

Choose a Category

Misc Connectors / Adapters

Misc Connectors / Adapters for the TekBox TBCDN-M1

TekBox TBCDN-50-150 50 Ohm to 150 Ohm N-male to N-female adapter

Catalog: TBCDN-50-150

(0)

Available to Order

Check Lead Time

$69.00

Add to Cart

TekBox TBCDN-M1-AP Adapter panel with shorting bar for M1 coupling decoupling network;...

Catalog: TBCDN-M1-AP

(0)

Available to Order

Check Lead Time

$74.00

Add to Cart

TekBox TBCDN-M1

Maximum supply voltage: 300V AC, 600V DC
Maximum current: 15A
Frequency range: 150 kHz - 230 MHz
Maximum RF input power: 6.5W CW
Maximum RF input voltage: 32 V

Coupling Decoupling Network M1 (15A Max Current)

The TBCDN-M1 is a Coupling Decoupling Network for conducting immunity testing according to IEC 61000-4-6.

The TBCDN-M1 is compliant with IEC 61000-4-6 Annex D2. It is designed to inject common mode disturbance signals in the frequency range from 150 kHz to 230 MHz into unscreened AC and DC power supply lines.
