• Bandwidth: 400kHz - 600MHz
• Frequency range: 10Hz - 600MHz
• Transfer impedance: 23 dB Ohm
• Connector type: N female
• Max primary current (RF): 12A

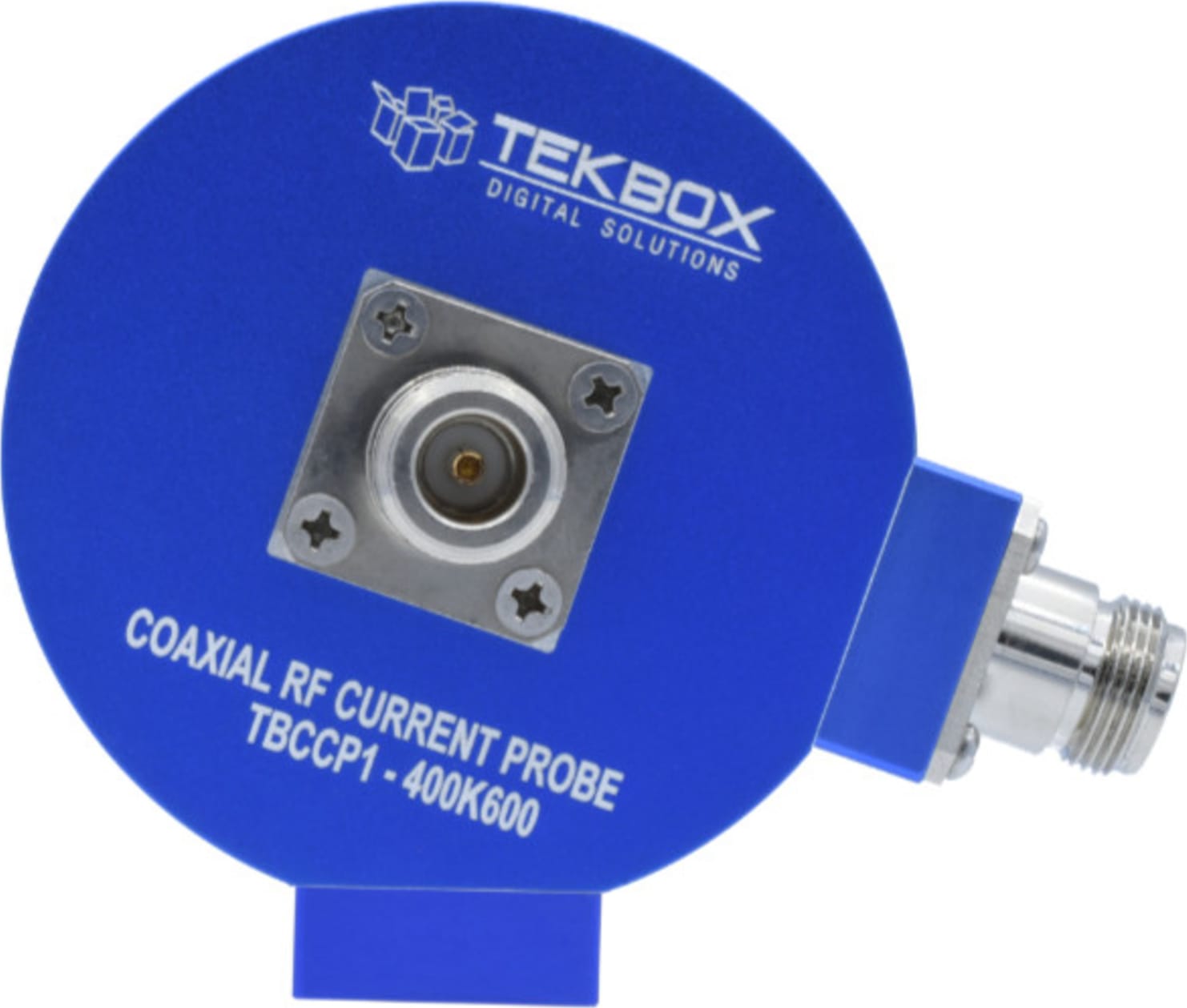

The TekBox TBCCP1-400K600 is a coaxial RF current monitoring probe designed to be used as a transducer for passive loop antennas or for applications that need to measure RF currents in coaxial cables. The probe has a 3 dB bandwidth from 400 kHz to 600 MHz and very flat response from 1MHz to 200MHz. The probe is equipped with N-connectors. An attachment with a 1/4-inch thread permits connectivity to standard tripods.

TekBox coaxial RF current monitoring probes are ideal transducers for active and passive magnetic loop antennas. Combining the transducer with a corrugated coaxial cable forms a magnetic loop antenna. Below are examples of a 60 cm and 30 cm passive loop antenna:

The shield of the coaxial cable provides shielding from electric fields. As the shield would create a shorted winding in parallel to the center conductor, the shield has to be slotted and stiffened with a sleeve as shown in the image to the right:

When using the probe with loop antennas for EMC testing applications, the model TBCCP1-3K100 probe is for use with active loop antennas, and the model TBCCP1-2K70 is for use with large loop antennas, while this version, TBCCP1-400K600, is for use with passive loop antennas.

TekBox coaxial RF current probes do not need a calibration fixture for the measurement of the transfer impedance. See the figure below for transimpedance measurement set up:

Calculate the transfer impedance ZT using the formula below:

ZT [dBΩ] = Pin [dBm] – Pprobe [dBm] +34 dB

or simply

ZT [dBΩ] = S21 [dB] +34 dB
