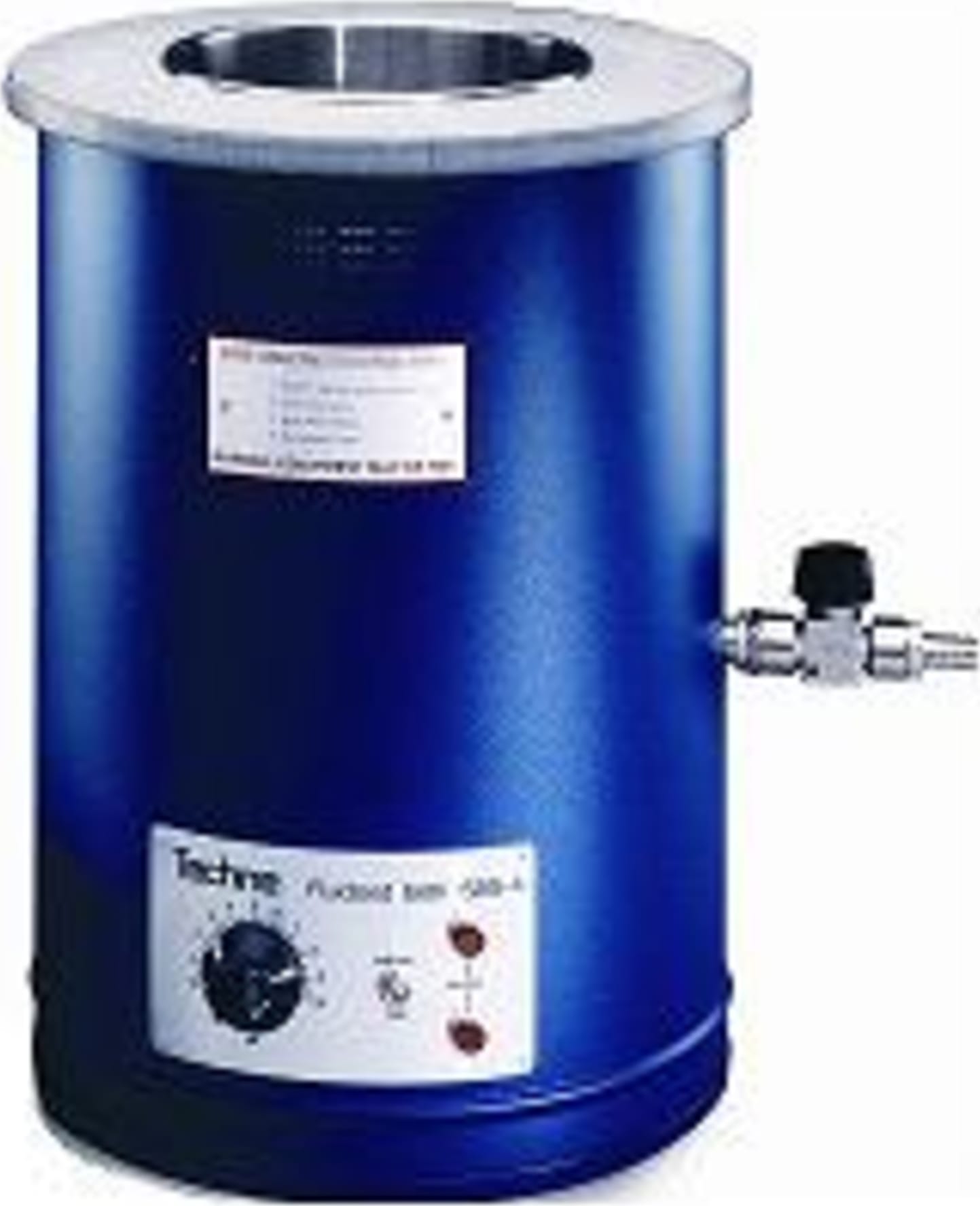

Techne SBL-2D Temperature Baths

Name: Techne SBL-2D Temperature Baths
Brand: Techne
SKU: TechneSBL-2D
Price: 5968.80 USD
Availability: InStock

0 reviews | Catalog: 99965-64 | Model: Techne SBL-2D

Compare

SBL-2D 600C228MM DIA BY 350MM DEPTH 230V

⛟ Freight Shipping Only

View Product Details

List Price: $6,632.00

In Stock:

View Payment Options

Non-Cancellable / Non-Returnable

Recommended for you

Accessories

Choose a Category

for the Techne SBL-2D

Techne F119D AIR COMPRESSOR220/240V 50HZ FOR SBS, SBL AND BFS

Catalog: 01184-83

(0)

In Stock!

Add to Cart

Techne F5915 IFB-51 AND IFB-52 FILTER/REGULATOR

Catalog: 01184-78

(0)

In Stock!

Add to Cart

Techne F7803 BASKETSTAINLESS STEEL FOR SBL-1

Catalog: 01184-84

(0)

In Stock!

Add to Cart

Techne F7804 BASKET STAINLESS STEEL SBL-2

Catalog: 01184-85

(0)

In Stock!

Add to Cart

Techne F7807 BASKET STAINLESS STEEL SBS-4

Catalog: 01184-87

(0)

In Stock!

Add to Cart

Techne 01184-61 BROW ALUMINUM OXIDE 100LBS

Catalog: 01184-61

(0)

In Stock!

Add to Cart

Techne 01184-63 Fluidized Sand Bath Fluidizing Sand, Brown Aluminum Oxide; 25 lb (11...

Catalog: 01184-63

(1)

In Stock!

Add to Cart

Techne F1116 OVERSPILL FLANGE SBS MODEL

Catalog: 01184-81

(0)

In Stock!

Add to Cart

Techne F1133 OVERSPILL FLANGE SBL

Catalog: 01184-82

(0)

In Stock!

Add to Cart

Techne F7805 BASKET STAINLESS STEEL SBL-2D

Catalog: 01184-86

(0)

In Stock!

Add to Cart

Techne F937D TC-9D TEMPERATURE CONTROLLER ( Degree C) FOR SBL-2 AND SBL-2D

Catalog: 01184-55

(0)

In Stock!

Add to Cart

Techne F937P TC-9D TEMPERATURE CONTROLLER ( Degree C) FOR SBL-1 AND SBS-4

Catalog: 01184-50

(0)

In Stock!

Add to Cart

The SB range of fluidised baths offers a safer alternative to the dangers associated with high temperature oil and salt baths.

These units are designed to be bench or floor standing and only require an electrical and air supply for operation. Air passes through the mass of the aluminium oxide (Alundum) particles via a porous plate in the base of the unit separating the individual particles and suspending them in free air, giving the properties of a liquid bath.

Heaters are fitted within the bath which allow temperatures of 500°C to 600°C to be maintained. Both models in the SB range feature a stainless-steel inner container insulated from the outer wall, a safety air pressure switch to protect against loss of air pressure and also a thermal cut-out.

It is highly recommended that the TC-9D temperature control unit is used in conjunction with these baths, greatly improving temperature stability and accuracy. See TC-9D link under "Further Information" on the left of this page.

Technical Specification

Specifications	SBS-4	SBL-2D
Temperature range	50°C to 500°C	50°C to 600°C
Temperature stability at 50°C	±1°C	±1°C
Heat up time 20°C to maximum	60 minutes	105 minutes
Cool down time maximum to 200°C	180 minutes	330 minutes
Air pressure kPa (psi)	21 (3)	21 (3)
Maximum flow Litresminute	57	57
Nominal heater power at 240V (W)	1500	4000
Weight of medium required	9 Kg	32 Kg
Working volume Diameter x depth (mm)	178 x 140	228 x 350
Diameter (excluding tap) x height (mm)	335 x 462	385 x 695
Shipping weight (Kg)	24	59

Ordering Information

Please note that the alundum must be ordered separately, it is no longer included with the product

Product Code	Description	Weight of Alundum required (BROWN/ALO)*
F932D	SBS- 4 (230V) including overspill flange but excluding alundum	25 kg
F932P	SBS- 4 (120V) including overspill flange but excluding alundum	25 kg
F946D	SBL- 2D (230V) including overspill flange but excluding alundum	50 kg

Please note:
- Model SBS-4 is available in both 120V and 230V variants.
- Model SBL-2D is available in 230V only (due to the larger heater and bath size).
- F946H has been replaced by F946D.

*Alundum is supplied in 25 kg lots. Weight required to fill the sand bath may be less than the order amount. Leftover alundum can be stored to replace alundum that is lost through normal operation and removal of items from the bath.

Calibration Baths
Type	Fluidized Bed
Min Temp (Calibration Baths)	50 C
Max Temp (Calibration Baths)	600 C
Accuracy (Calibration Baths)	1 C
Voltage (Calibration Baths)	220 VAC
Test Equipment General Attributes
Unique Features	60 minutes Heat up time 20°C to maximum 180 minutes Cool down time maximum to 200°C
Product Weight	32 KILOS (70.55 LBS)
Product Height	695 MM (27.36 IN)
Shipping Weight	59 KILOS (130.07 LBS)
Country of Origin	United Kingdom
