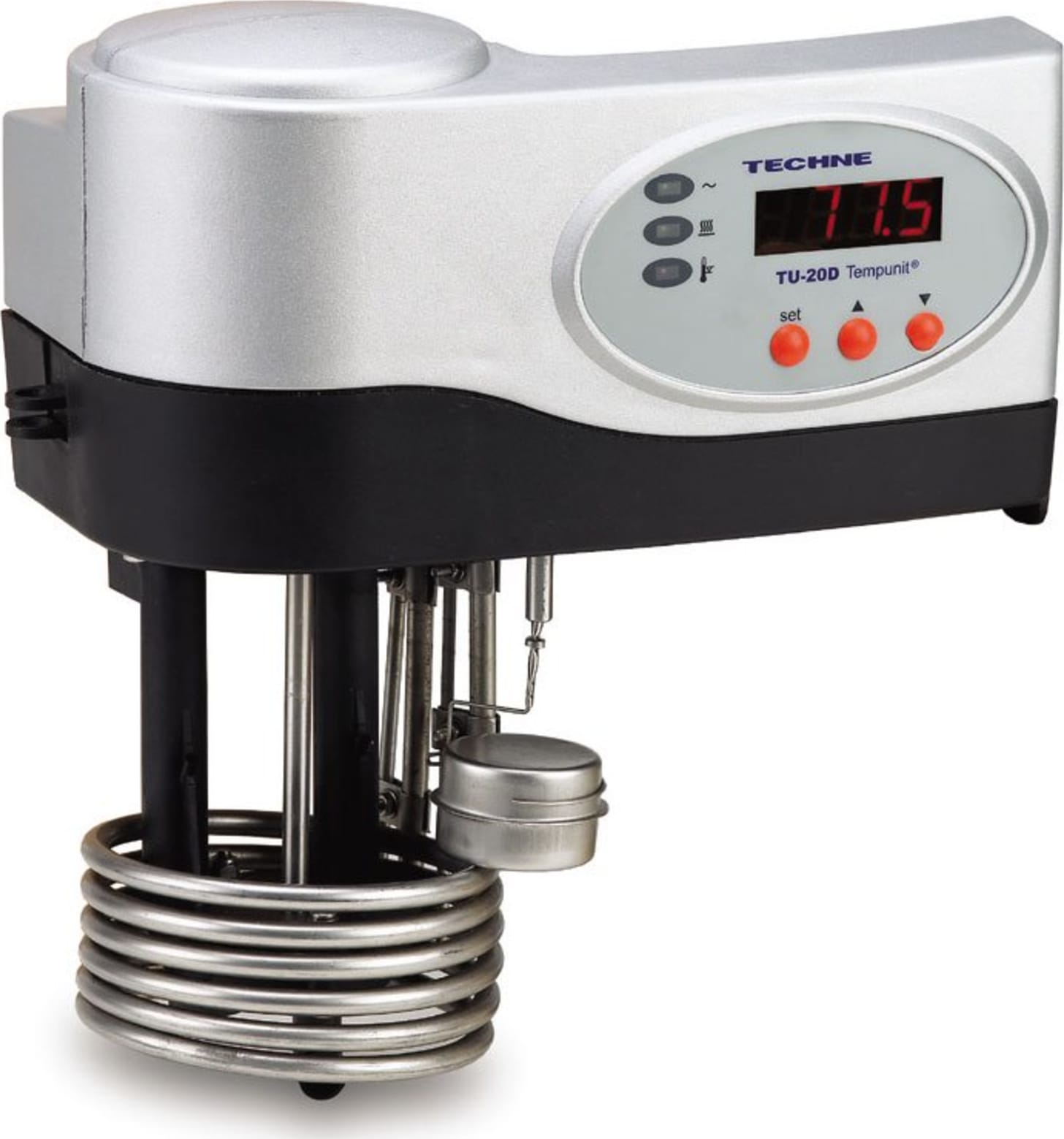

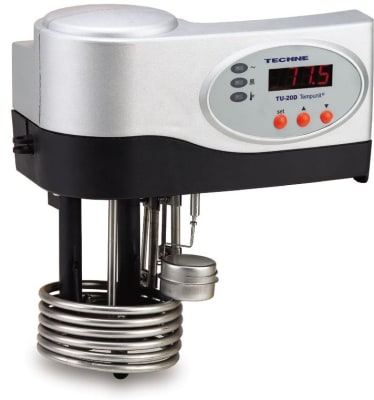

Techne FTU20DDC - TU-20D Advanced Thermoregulator with RS232 and TechneWorks Software, Supplied with Clamp (230V)

High Powered Thermoregulators

The Tempunit® offers increased heater power to enable accurate control over a wider temperature range, designed for applications requiring temperatures above 100°C. Techne also recommends the Tempunit® in conjunction with the larger 26 & 48 litre baths when temperature control above 50°C is required. Controlled heating rates and hold times can be achieved by linking the Tempunit® to the free TechneWorks software#

Cooling coil

Connects to the mains water supply; the water being circulated through the coil should be at least 5°C cooler than the set of the bath temperature.

Sub-ambient cooling

This thermoregulator can be used for sub-ambient cooling, right down to -40°C, although a low-temperature liquid is required below 0°C. Sub-ambient cooling can be achieved using the cooling coil accessory (part number FCC01) connected to an external chilling system, for example a cold tap. Alternatively a Techne dip-cooler or flow cooler could be used as a method of chilling.

External circulation

This thermoregulator can be used in several ways. (1) Stand-alone waterbath temperature controller with precision accuracy and stirring action. (2) Pump for recirculating chilled liquid produced in an external chiller allowing sub-ambient water bath temperature. (3) Pump for providing temperature control to an external system or device. (4) A combination of using externally chilled liquid and providing temperature control to an external system.

TechneWorks Software

TechneWorks is an easy to use control software for many of our RS-232 compatible products. This software has been designed to supersede the existing Calsoft and Thermsoft software packages.

It will allow customers to carry out all the tasks previously available on Calsoft and Thermsoft, plus many new options on one new package. It is fully compatible with all Techne RS-232 Calibration products including all current models and older discontinued models such as the TU-20C.

TechneWorks software allows connection to a range of Precision Thermometers, such as the Techne Accu-Temp, ASL model F250, Accu-Temp II and the Cropico 3000 series. TechneWorks software enables you to calibrate thermometers and sensors by comparison to one of the above listed thermometers using a Techne liquid bath or dry block as a temperature source. Alternatively, the bath or dry block calibrator display can be used as the reference. After data is collected, a calibration certificate can be printed.

Software Features:

• Create, open and save programs with up to 20 set points.
• Specify either °C or °F.
• Specify ramp rates and hold times.
• Log data from the instrument while connected to the computer and export the data in an Excel spreadsheet.
• Open, save, view and print logged data.
• Perform a calibration where temperature of the probe is manually entered.
• Perform an automatic calibration routine where the temperature reference probes data is added automatically.
• Run a program in real time mode.
• Specify the logging interval from every 5 seconds to 60 seconds
• Free download from website
