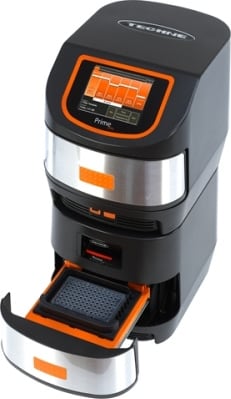

Techne ELITE/05 Prime Elite Thermal Cycler, 60 x 0.5 ml

Name: Techne ELITE/05 Prime Elite Thermal Cycler, 60 x 0.5 ml
Brand: Techne
SKU: TechneELITE/05
Price: 8550.36 USD
Availability: InStock

0 reviews | Catalog: ELITE/05 | Model: Techne ELITE/05

Compare

Prime Elite thermal cycler, 60 x 0.5ml

Latest 5.7 inch colour touchscreen provides optimal brightness and clarity.
Intuitive software allows fast and simple program setup.
Three block options are available 96x0.2ml, 60x0.5ml and 384-well (all with gradient).
Last 5°C/sec ramp rate.
TERS Thermal Energy Recovery System saves energy by utilising heat produced in cooling phase.
A mechanically operated heated lid automatically provides an even 75 newton force to stop sample evaporation.
Prime Elite is a low noise, high speed, high-throughput, networkable system.
Double, triple and quad block systems are created by adding Satellites in a space-saving, stackable design.
A 4-block Prime Elite requires only 56cm of bench space.
Front-facing USB port facilitates easy program transfer and software updates.
Rear-facing USB connectivity allows simple networking of instruments.
A powerful processor drives seamless software performance and fast startup.
On-board gradient calculator and Tm calculator.
Advanced electrical power filter improves robustness by smoothing electricity fluctuations.
4 year warranty.

View Product Details

List Price: $9,500.40

In Stock:

View Payment Options

Accessories

Choose a Category

Adapter Kits

Adapter Kits for the Techne ELITE/05

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(8)

In Stock!

Add to Cart

Techne ELITE/05 Prime Elite Thermal Cycler, 60 x 0.5 ml

Prime Elite Thermal Cyclers

Prime Elite is the new high-performance networkable thermal cycler, equipped as standard with all the latest features including large colour touchscreen, fast ramping, innovative front-loading PCR plate drawer, automatic non-motorised heated lid, TERS thermal energy recovery system and a unique space-saving, stackable design. Prime Elite and Prime Elite Satellites can be combined to form a two, three or four block instrument with Satellites controllable from the Prime Elite or a PC. Gradient blocks and 4 year warranty are included as standard.

Clever Communications

The Prime Elite thermal cycler connects to 3 satellites via rear-facing USB ports. Alternatively, Prime Elite Satellites can be controlled by PC. Cables and software are provided as standard. Prime Elite also contains a front-facing USB port which allows easy program transfer between instruments or PC. At least 1000 programs can be stored on each Prime Elite with unlimited storage on USB sticks, ideal for multi-user laboratories. The Prime Elite USB ports also allow free software updates, which are available to download from this Techne website.

Technical Specification
Sample capacity: 0.2ml	96
Sample capacity: 0.5ml	60
Sample capacity: 384-well	Yes
Block temperature range	4°C to 100°C
Block uniformity at 50°C	± 0.3°C
Temperature accuracy at 50°C	± 0.2°C
Gradient range	10°C to 100°C
Maximum gradient	30°C
Minimum gradient	1°C
Pre-run sample cooling	Yes at 4°C
Maximum heating rate	5.0°C per second
Maximum cooling rate	3.0°C per second
Maximum hold time	99h 59m 59s
Maximum number of programs stored	1000
Maximum fan noise	60dB
Adjustable heated lid temperature	35 to 115°C or off
Over-temperature cut-out	Yes
Regulated heated lid pressure	Automatic
Program interface	5.7 inch touchscreen
Gradient calculator	Yes
Incremental decremental temperature	Yes
Incremental decremental time	Yes
Password protection	Yes
Auto re-start on power failure	Yes, 10m, 30m, 1h, always
Connection to PC control software	Yes
Tm primer calculator	Yes
Dimensions (L x W x H)	375 x 276 x 312mm
Weight	14kg
Voltage	100-230V 50-60Hz
Power	1000W
Electricity used in a standard 2 step, 30 cycle program	0.39 kWh

Test Equipment General Attributes
Unique Features	5.7 inch colour touchscreen On-board gradient calculator and Tm calculator A low noise, high speed, high-throughput, networkable system
Warranty	4 YEARS
Product Weight	30.86 LBS
Product Height	312 MM (12.28 IN)
Product Length	375 MM (14.76 IN)
Product Width	276 MM (10.87 IN)
Shipping Weight	30.86 LBS
