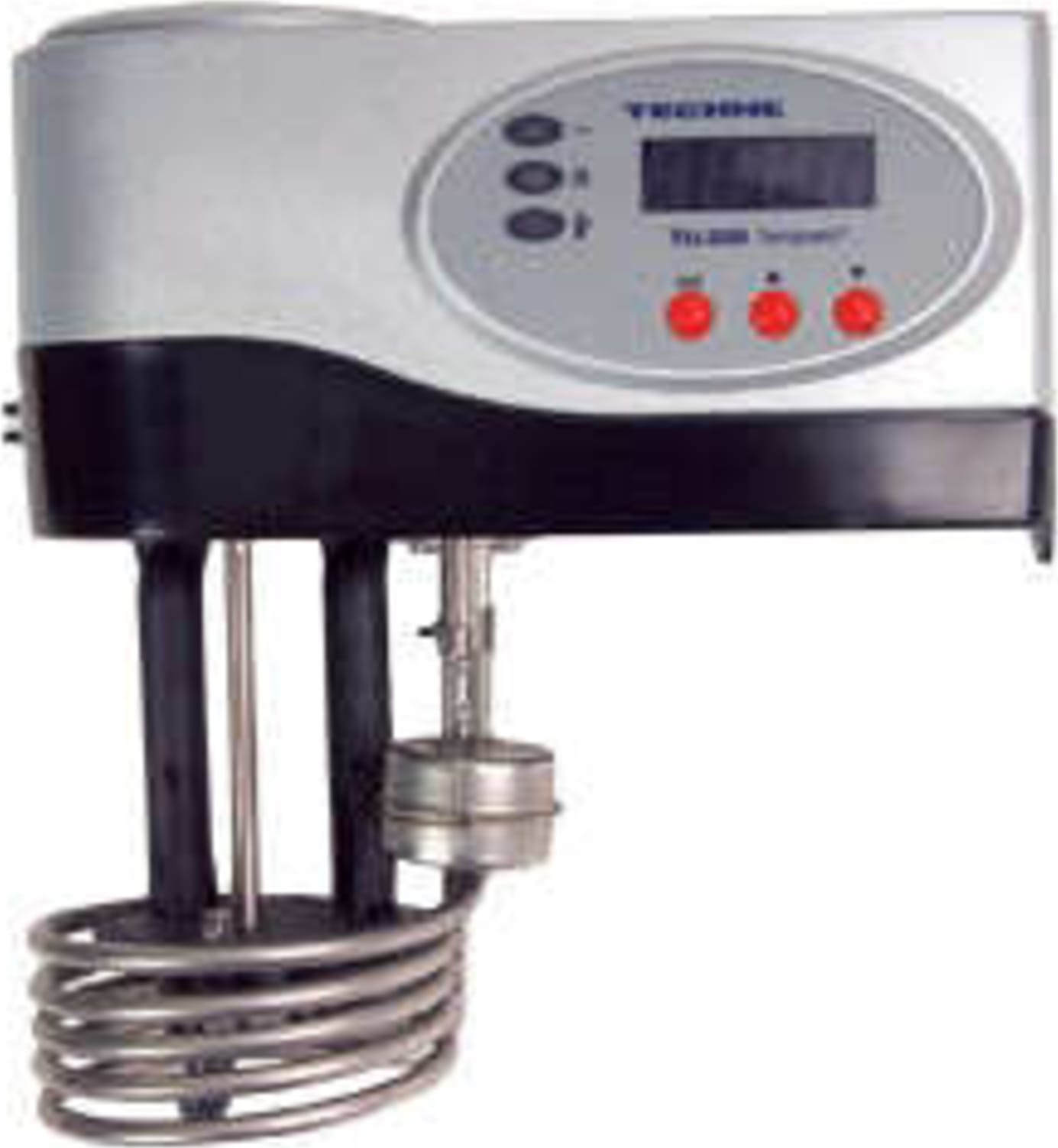

Techne TU-20HT Liquid Temperature Baths Thermoregulators

Name: Techne TU-20HT Liquid Temperature Baths Thermoregulators
Brand: Techne
SKU: Techne1017650
Price: 2440.80 USD
Availability: InStock

0 reviews | Catalog: 16112-55 | Model: Techne 1017650

Compare

CRCLTR IMMRSN HP HT 230V

A wider temperature range of -40°C* to 200°C
Excellent temperature stability: ±0.005°C at 40°C
4 digit setting with a bright LED digital temperature display
This unit incorporates an RS232 connection
User adjustable over-temperature cut-out
Low liquid level cut-out as standard

View Product Details

List Price: $2,712.00

Your Price: $2,440.80

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Techne 1017650 CRCLTR IMMRSN HP HT 230V	Techne 1017600 1017600:TU20HT -117VOLT
Price
In Stock
Voltage (Life Science)	208-240 VAC Only	100-120 VAC Only
Type (Chillers/Baths)	Immersion Circulator (Thermoregulator)	Immersion Circulator (Thermoregulator)
Compare	Add to compare	Add to compare

Recommended for you

Thermoregulators

Techne invented the ”Clip On” thermoregulator in 1948 and now offers four “Clip On” units. Thermoregulators are designed to be used with the Techne® unheated water baths or any other suitable laboratory vessels. They will heat, circulate and safely control the temperature of the liquid in the bath within precise limits.

Cooling coil

Connects to the mains water supply; the water being circulated through the coil should be at least 5°C cooler than the set of the bath temperature.

TechneWorks Software

TechneWorks is an easy to use control software for many of our RS-232 compatible products. This software has been designed to supersede the existing Calsoft and Thermsoft software packages.

It will allow customers to carry out all the tasks previously available on Calsoft and Thermsoft, plus many new options on one new package. It is fully compatible with all Techne RS-232 Calibration products including all current models and older discontinued models such as the TU-20C.

TechneWorks software allows connection to a range of Precision Thermometers, such as the Techne Accu-Temp, ASL model F250, Accu-Temp II and the Cropico 3000 series. TechneWorks software enables you to calibrate thermometers and sensors by comparison to one of the above listed thermometers using a Techne liquid bath or dry block as a temperature source. Alternatively, the bath or dry block calibrator display can be used as the reference. After data is collected, a calibration certifi cate can be printed.

Software Features:

Create, open and save programs with up to 20 set points.
Specify either °C or °F.
Specify ramp rates and hold times.
Log data from the instrument while connected to the computer and export the data in an Excel spreadsheet.
Open, save, view and print logged data.
Perform a calibration where temperature of the probe is manually entered.
Perform an automatic calibration routine where the temperature reference probes data is added automatically.
Run a program in real time mode.
Specify the logging interval from every 5 seconds to 60 seconds
Free download from website

Technical Specifications
Specifications to DIN 12876	TU-20D	TU-20HT
Temperature range*	-40°C to +200°C	-40°C to +250°C
Temperature selection	Digital	Digital
Temperature stability using water @ 40°C	±0.005°C	±0.005°C
Method of control	PID	PID
Temperature sensor	PRT	PRT
Adjustable over-temperature cut-out	Yes	Yes
Low liquid level cut-out	Yes	Yes
PC Interface	Yes RS232	Yes RS232
Heating/Pumping
Pump capacity liters/minute	10	N/A internal circulation only
Nominal heater power at 240V (W)	1000	1000
Pump capacity (mbar)	145	-
Nominal heater power at 120V (W)	1500	1500
Nominal heater power at 240V (W)	1800	1800
Cooling coil	Option	Option
Dimensions
Extension below base (cm)	14.5	14.5
Dimensions L x W x H (cm)	23.7 x 12.4 x 26	23.7 x 12.4 x 26
TechneWorks software package	TechneWorks	TechneWorks
* Refrigeration or cooling coil required for near or below ambient operation.
Liquid Calibration Bath	LCB -7/12	LCB-7/12
Thermoregulator	TU-20D	TU-20HT
Bath Capacity	7 /12 liters	7 / 12 liters
Operating temperature range¹	-35 to 200ºC	Ambient +10 to 250
Working temperature range²	25 to 200ºC	30 to 250
Stability at -35°C (short term*)	+/-0.015	N/A
Stability at 0°C (short term*)	+/-0.020	N/A
Stability at 50°C (short term*)	+/-0.005	+/-0.005
Stability at 100°C (short term*)	+/-0.015	+/-0.015
Stability at 200°C (short term*)	+/-0.024	+/-0.024
Stability at 250°C (short term*)	N/A	+/-0.040
Uniformity ºC (full range**)	0.008	0.008
Accuracy ºC (full range)	+/-0.5	+/-0.5

1) With an FC-500 fl ow cooler;
2) Ambient of 20°C
*Stability is over a 15 minute period.
**Two SPRT’s 3” apart in the working area of bath
