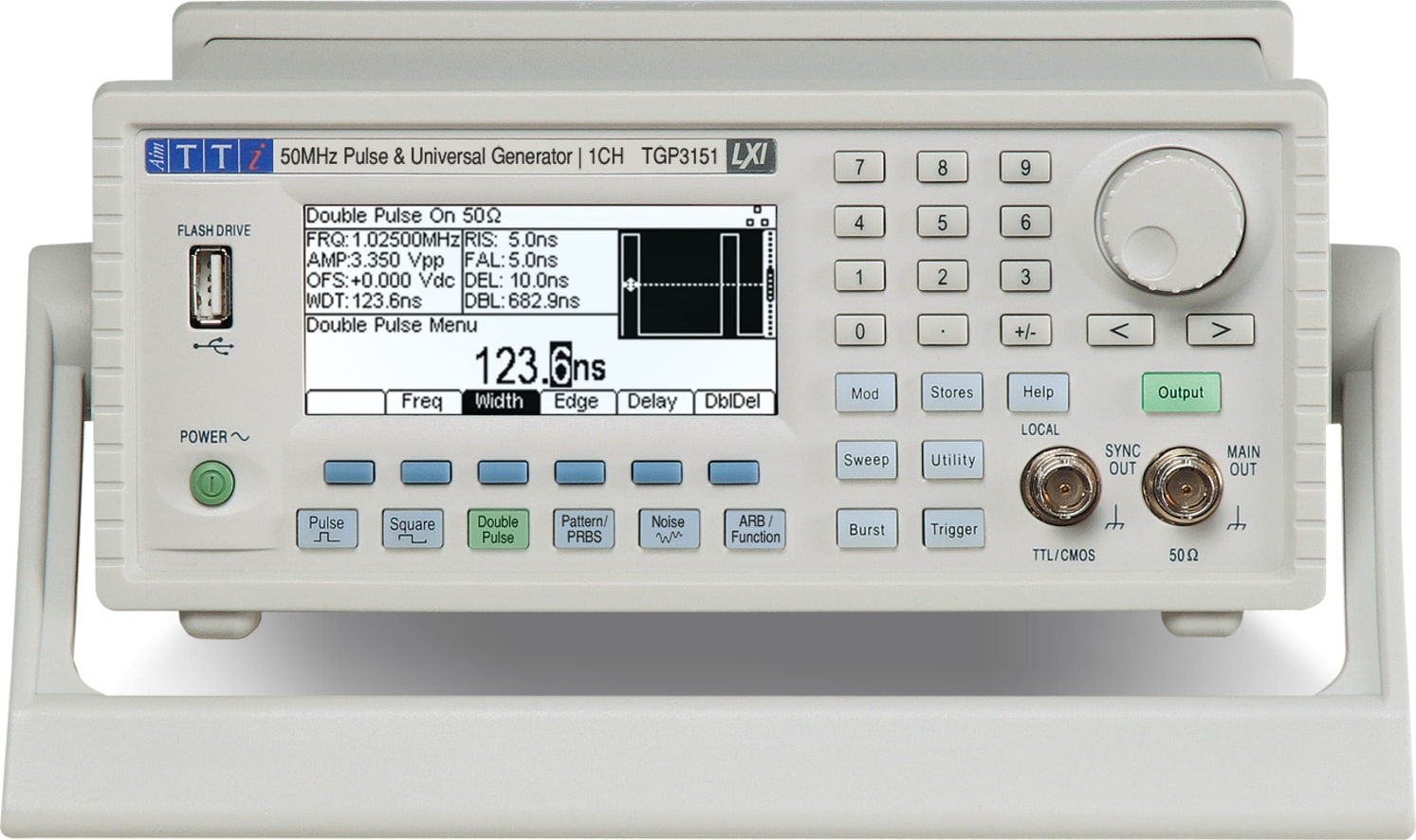

TTi TGP3151 - Pulse and Universal Generator

Name: TTi TGP3151 - Pulse and Universal Generator
Brand: Aim-TTi
SKU: TTiTGP3151
Price: 1775.00 USD
Availability: InStock

0 reviews | Catalog: 59120-5320 | Model: Aim-TTi TGP3151

Compare

50MHz Pulse and Universal Generator USB/LXI

Pulse waveforms from 1mHz to 50MHz, minimum rise time 5ns
Pulse, pulse pattern and PRBS waveforms
Pulse period, width and delay resolutions of 100ps or 11 digits
Independently variable rise and fall times from 5ns to 800 seconds
Low jitter asynchronous operation, externally triggered pulses or pulse reconstruction
High drive capability output can provide 20V pk-pk into 50 (unmatched)
Wide range of pulse modulations including AM.FM, PM, FSK, BPSK, SUM, PWM, PDM
using internal or external modulation sources.
Triggered (burst count) or gated operation using internal or external trigger sources
Full Noise generator to 25MHz with selectable crest factor and user defined distribution
Full Arbitrary/Function generator with 16 waveform types
Sine waves up to 50MHz
Arbitrary waveforms at 800MS/s sampling rate and 16-bit vertical resolution
Extensive internal/external modulation of all waveform types
Linear and logarithmic sweeps of all waveform types
Front panel mounted USB Flash drive interface
GPIB, USB and LXI compliant LAN interfaces

View Product Details

Your Price: $1,775.00

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
