TTi TGP3122 - Pulse and Universal Generator

Name: TTi TGP3122 - Pulse and Universal Generator
Brand: Aim-TTi
SKU: TTiTGP3122
Price: 2169.00 USD
Availability: InStock

0 reviews | Catalog: 59120-5620 | Model: Aim-TTi TGP3122

Compare

25MHz, 2ch Pulse and Universal Generator USB/LXI

Pulse waveforms from 1mHz to 50MHz [25MHz], minimum rise time 5ns [8ns]
Pulse, double pulse, pulse pattern and PRBS waveforms
Pulse period, width and delay resolutions of 100ps or 11 digits
Independently variable rise and fall times from 5ns [8ns] to 800 seconds
Low jitter asynchronous operation, externally triggered pulses or pulse reconstruction
High drive capability output can provide 20V pk-pk into 50 (unmatched)
Wide range of pulse modulations including AM.FM, PM, FSK, BPSK, SUM, PWM, PDM
using internal or external modulation sources.
Triggered (burst count) or gated operation using internal or external trigger sources
Full Noise generator to 25MHz with selectable crest factor and user defined distribution
Full Arbitrary/Function generator with 16 waveform types
Sine waves up to 25MHz
Arbitrary waveforms at 800MS/s sampling rate and 16-bit vertical resolution
Extensive internal/external modulation of all waveform types
Linear and logarithmic sweeps of all waveform types
Front panel mounted USB Flash drive interface
GPIB, USB and LXI compliant LAN interfaces

View Product Details

List Price: $2,169.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Aim-TTi TGP3122

Cal Test CT4036 Function Generator And Freq. Counter Accessory Kit

Catalog: CT4036

(8)

In Stock!

Add to Cart

Cal Test CT4037 Advanced Function Generator Accessory Kit

Catalog: CT4037

(11)

In Stock!

Add to Cart

Aim-TTi GPIB 1A GPIB InterfaceOption Retrofits TG/F/P/R, LD, TSX-P and MX-P, QPX, CPX,...

Catalog: 59130-1810

(0)

In Stock!

Add to Cart

Aim-TTi RM200A 2U Rack Mount for half rack instrument, incl 1/2 rack blanking plate

Catalog: 51200-0340

(0)

In Stock!

Add to Cart

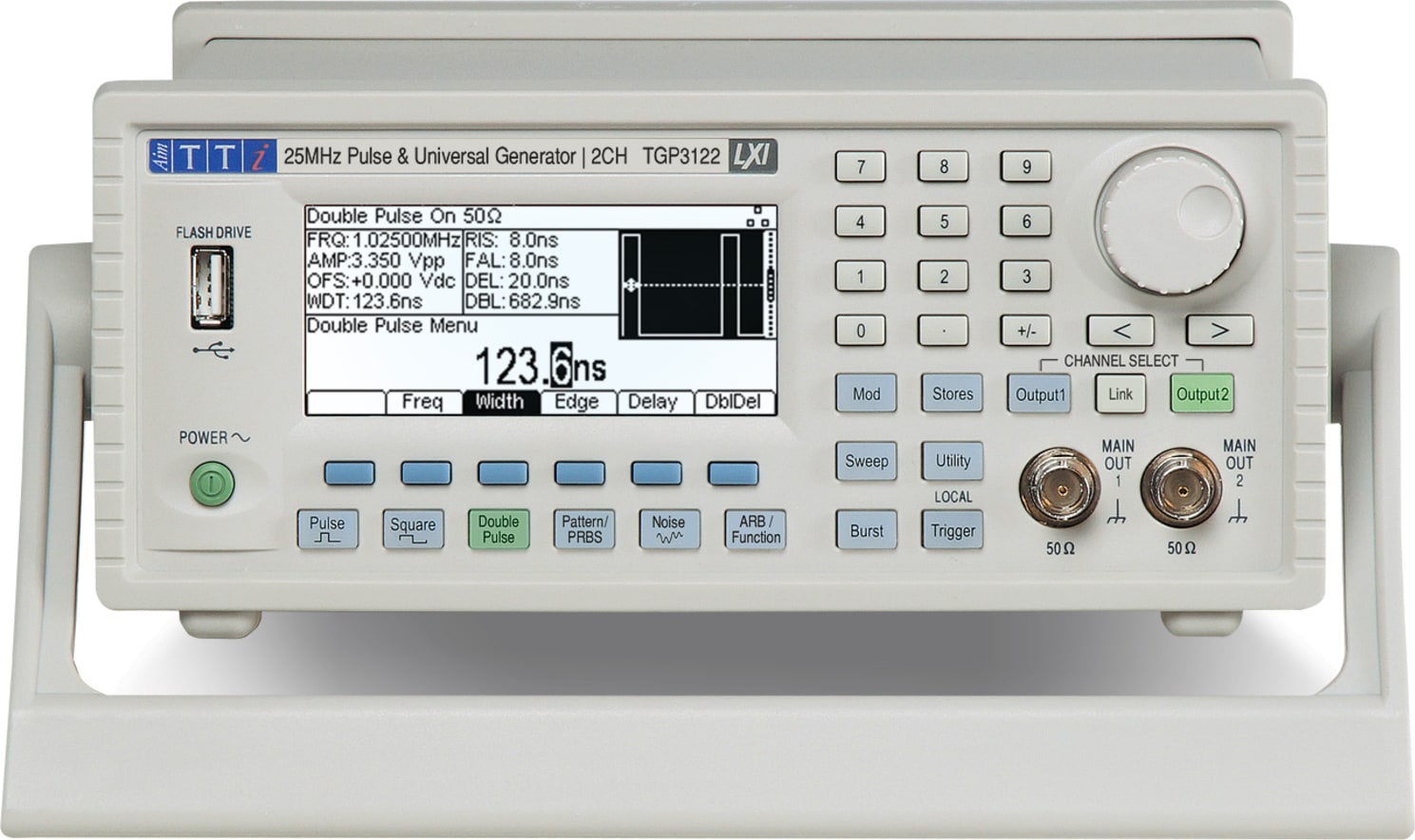

TTi TGP3122 - Pulse and Universal Generator

The TGP3100 Series are true pulse generators using all digital techniques. They can replicate the capabilities of traditional pulse generators whilst adding many additional facilities such as pulse modulations.

Unlike DDS based function generators the TGP3100 Series can generate pulses with very high resolution of width and delay (100ps), and can operate in an asynchronously triggered mode with low jitter.

A high drive capability output stage enables up to 20 volts pk-pk to be driven into a 50 Ohm load.

As well as operating as pulse generators, the instruments can act as high performance noise generators and as function/arbitrary generators - making them truly universal waveform generators.

Single and dual channel models are available with a maximum frequency of either 50MHz or 25MHz.

TTi TGP3122 Pulse and Universal Generator Specifications
Waveforms -Standard Waveforms	Pulse, Square, Double Pulse, Pattern, PRBS (Pseudo Random Binary Sequence), Noise, Pre Defined Function Waveforms (Sine, Square (User Defined Duty Cycle), Triangle, Ramp (User Defined Symmetry), Negative Ramp, DC, Sin(x)/x (User Defined Zero Crossings), Exponential Rise (User Defined Time Constant), Exponential Fall (User Defined Time Constant), Logarithmic Rise (User Defined Time Constant), Logarithmic Fall (User Defined Time Constant), Haversine, Gaussian (User Defined Width), Lorentz (User Defined Width), D-Lorentz and Cardiac) and 4 User Defined Arbitrary Waveforms
Pulse
Frequency Range	1mHz to 50MHz [1mHz to 25MHz]
Frequency Resolution	1mHz, 11 digits
Jitter RMS	<30ps (cycle to cycle)
Double Pulse
Frequency Range	1mHz to 25MHz [1mHz to 12.5MHz]
Frequency Resolution	1mHz, 11 digits
Jitter RMS	<30ps (cycle to cycle)
General
Display	256 x 112 pixel monochrome graphics display. White LED backlight with adjustable brightness and contrast. Black-on-white or inverse modes
Data Entry	Keyboard selection of mode, waveform etc.; value entry direct by numeric keys or by rotary control
Stored Settings	Up to 9 complete instrument setups may be stored and recalled from non-volatile memory
Size	Bench Top: 97mm height; 250mm width; 295mm long
Rack mount	86.5mm (2U) height; 213.5mm (½rack) width; 269mm long
Weight	3.2kg
Power	110-240VAC ±10% 50/60Hz; 100-120VAC ±10% 400Hz; 60VA max. Installation Category II
Operating Range	+5°C to 40°C, 20-80% RH
Storage Range	-20°C to + 60°C
Environmental	Indoor use at altitudes up to 2000m, Pollution Degree 2.
Options	19 inch rack mounting kit
Safety	Complies with EN61010-1
EMC	Complies with EN61326

Generators / Counters/Pulse Generator Template
Pulse Frequency Range Min	1 mHz (milihertz) (0.000000001 MHz)
Pulse Frequency Range Max	25 MHz (25000000 Hz)
Min Time Range Single Pulse	20 ns
Max Time Range Single Pulse	1000 MIN (60000 s)
Number of Channels	2
Internal Trigger	Yes
External Trigger	Yes
Burst Mode	Yes
Built in Noise Generator	Yes
Built in Arbitary Generator	Yes
Test Equipment General Attributes
Unique Features	2 Channel Pulse waveforms from 1mHz to 25MHz
Interfaces I/O	LAN / Ethernet, USB
Storage	Internal Memory
Product Weight	3.2 KILOS (7.05 LBS)
Product Height	97 MM (3.82 IN)
Product Length	295 MM (11.61 IN)
Product Width	250 MM (9.84 IN)
Shipping Weight	9.00 LBS
Country of Origin	United Kingdom
