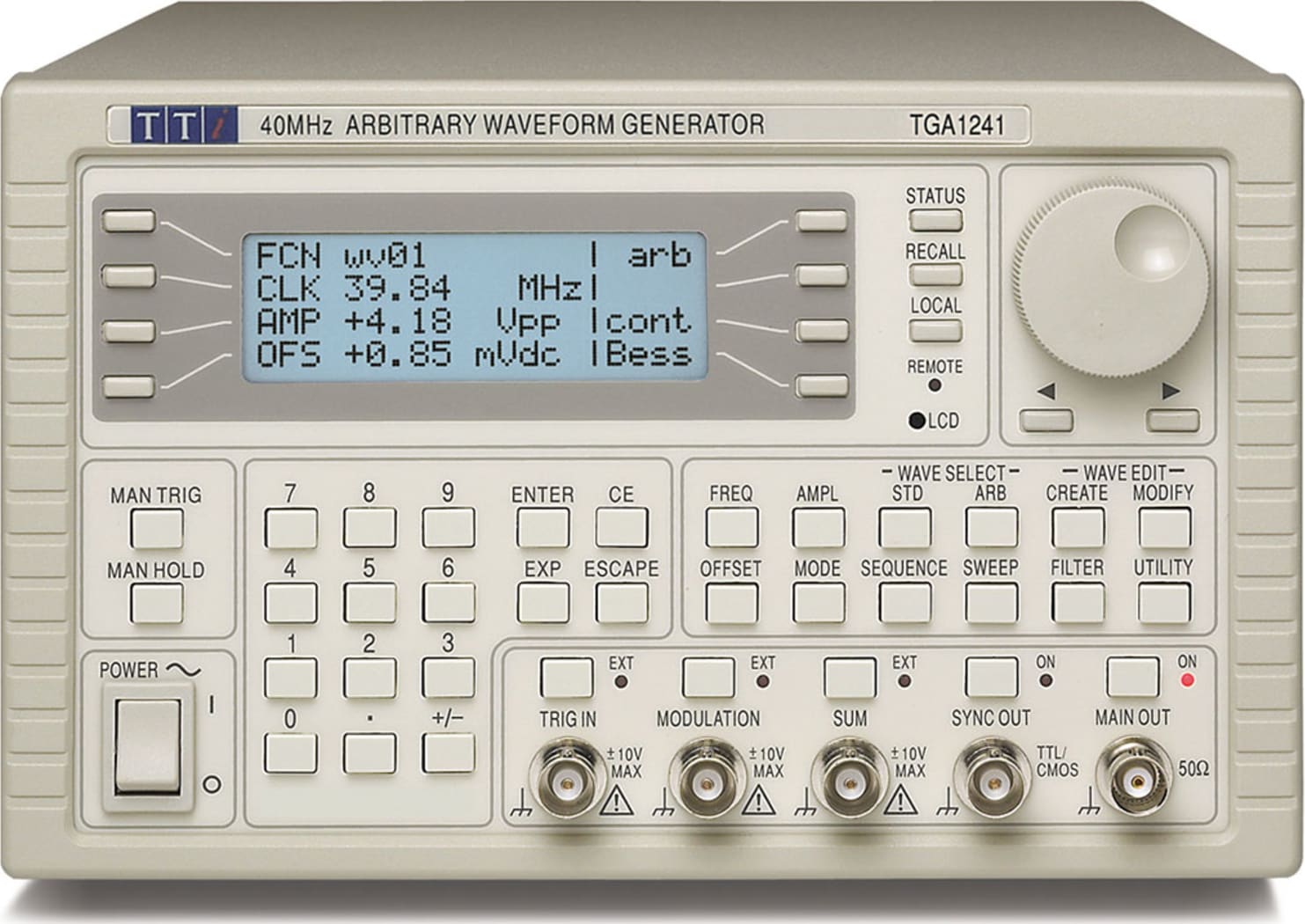

TTi TGA1241 - 40MS/s Single Channel Waveform Generator in 3U Half Rack Size Case

Name: TTi TGA1241 - 40MS/s Single Channel Waveform Generator in 3U Half Rack Size Case
Brand: Aim-TTi
SKU: TTiTGA1241
Price: 1832.00 USD
Availability: InStock

0 reviews | Catalog: 59120-2070 | Model: Aim-TTi TGA1241

Compare

15MHz, 40MS/s 64k Arbitrary Waveform Generator, RS232/GPIB

40MS/s Single Channel Waveform Generator in 3U Half Rack Size Case
40MHz clock speed & 12-bit vertical resolution
16MHz function generator capabilities using DDS
Multiple "standard" waveforms including sine, square, triangle, ramp, pulse and sin(x)/x
64k point maximum waveform length
Complex waveform sequencing and looping
Pulse train pattern generation for up to 10 pulses
Built-in trigger generator, gated & triggered burst modes
Interfaceable via RS-232 or GPIB (IEEE-488.2)
"Waveform Manager Plus" for Windows software included

View Product Details

List Price: $1,832.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Aim-TTi TGA1241

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Cal Test CT4036 Function Generator And Freq. Counter Accessory Kit

Catalog: CT4036

(8)

In Stock!

Add to Cart

Aim-TTi GPIB 1A GPIB InterfaceOption Retrofits TG/F/P/R, LD, TSX-P and MX-P, QPX, CPX,...

Catalog: 59130-1810

(0)

In Stock!

Add to Cart

Aim-TTi RM300A 3U Rack Mount for half rack instrument, incl 1/2 rack blanking plate

Catalog: 51200-0190

(0)

In Stock!

Add to Cart

Aim-TTi 48600-0010-1 Calibration certificate with results for ARB gener/PSA/TGR/LCR/HA1600

Catalog: 48600-0010-2

(0)

In Stock!

Add to Cart

TTi TGA1241 - 40MS/s Single Channel Waveform Generator in 3U Half Rack Size Case

EXTERNAL ARB CLOCK INPUT
WIDE RANGE SWEEP
TONE SWITCHING
INTER-CHANNEL TRIGGERING, SUMMING and PHASE CONTROL

Universal Generators
The TGA1200 series combine a true variable clock arbitrary generator with a high performance DDS function generator and pulse generator in a single instrument.

A True Arbitrary Generator
The TGA1200 series are highly sophisticated 12-bit arbitrary generators capable of recreating virtually any waveform.

Variable Clock Architecture
True variable clock architecture is used with clock speeds between 0.1Hz and 100MHz (40MHz on TGA124x units). This architecture avoids the clock jitter associated with DDS arbitrary generators and permits waveform linking, looping and sequencing. (See page five for more about variable clock architecture).

Waveforms may be defined with up to 4096 vertical points and from 8 to 1M horizontal points (4 to 64K points on TGA124x units). Arbitrary waveforms may be replayed at a specified waveform frequency, period or sample rate. An external sample clock can also be used on TGA1210x units. On TGA124x units, up to 100 user-defined waveforms can be stored within the instrument’s non-volatile memory. On TGA1210x units waveform storage is on removable Compact Flash memory cards and is therefore effectively unlimited.

Function Generator
Each channel can operate as a full DDS function generator. High quality sine, cosine, haversine, havercosine and square waves are available between 1mHz and 16MHz (TGA124x) or 40MHz (TGA1210x).

Triangle, ramp and sine(x)/x waveforms are available from 0.1mHz up to 100kHz.

Pulse Generator
Each channel can generate not just pulses but complex pulse trains. A pattern of up to 10 pulses can be quickly defined with each pulse having its own amplitude, width and delay.

The whole pulse train pattern can then be replayed at a user defined repetition rate. Where variable rise time pulses are required, the full arbitrary function can be used.

TGA1200 Series - Main Features

1, 2 or 4 waveform channels, independent or linked.
40MS/s or 100MS/s 12-bit arbitrary waveform capability using true variable clock architecture.
64K or 1M point waveform memory per channel.
16MHz or 40MHz function generators using DDS*.
Multiple ‘standard’ waveforms including sine, square, triangle, haversine, ramp, pulse and sin(x)/x.
Pulse train pattern generation for up to 10 pulses.
Complex waveform sequencing and looping capability using up to 1024 waveform segments.
Wide range sweep, AM, tone switching, signal summing. * DDS = direct digital synthesis
Inter-channel triggering, summing and phase control.
Multiple generators can be easily phase locked.
External ARB clock input (TGA1210x units only).
Waveform creation/editing tools built-in; sophisticated external Windows based software included.
Built-in trigger generator, gated and triggered burst modes.
Tone switching facilitates precision DTMF generation.
Unlimited waveform storage using CF memory cards (TGA1210x units only).
GPIB (IEEE-488.2), RS-232 and USB interfaces (TGA124x units have GPIB and RS-232 only).

	TGA124x	TGA1210x
Waveform Memory	64k points/ch	1M points/ch
Waveform Length	4 to 65,536 points	8 to 1,048,576 points
Vertical Resolution	12 bits (4096 levels)
Sample Clock Rate	0.1Hz to 40MHz	0.1Hz to 100MHz (1)
Clock Resolution	4 digits	8 digits
Clock Accuracy	<10 ppm for 1 year (± 1 digit of setting)
Clock Temp. Stability	Typically <1 ppm/°C
Waveform Storage	256K Words Non-volatile RAM	CF Memory Cards (32MB to 1GB size)
Max. Waveforms	100	500 per card
Note 1	TGA1210x generators can also use an external sample clock, DC to 50MHz.
Waveform Creation and Editing
All Models
Internal	Basic arbitrary waveform creation and editing tools are built into the instrument. Arbitrary waveforms can be built-up using insertion of standard waveforms between points, point by point value setting, and straight line drawing between points.
External	All TGA1200 series units are supplied with Waveform Manager Plus software for Windows which provides full waveform creation, editing and management. Waveforms are transferred using the digital interfaces or memory card.
Square
Frequency Range	1mHz to 16 MHz	1mHz to 50 MHz
Freq. Resolution	1mHz or 4 digits	1mHz or 8 digits
Freq. Accuracy	± 1 digit of setting
Rise and Fall Times	<25ns	<8ns
Pulse and Pulse Train
Period Range	100ns to 100s	40ns to 100s
Period Resolution	4 digits	8 digits
Period Accuracy	± 1 digit of setting
Delay Range	-99·99s to + 99·99s
Delay Resolution	0·002% of period (25ns minimum)	0.001% of period (10ns minimum)
Width Range	25ns to + 99·99s	10ns to + 99·99s
Width Resolution	0·002% of period (25ns minimum)	0.001% of period (10ns minimum)
Rise and Fall Times	<25ns	<8ns
Note that the pulse width and absolute value of the delay may not exceed the pulse period at any time. Pulse trains of up to 10 pulses may be specified, each pulse having independently defined width, delay and level. The baseline voltage is separately defined and the sequence repetition rate is set by the pulse train period.
Triangle
Frequency Range	0.1mHz to 100kHz	0.1mHz to 500kHz
Freq. Resolution	0.1mHz or 7 digits	0.1mHz or 10 digits
Linearity Error	<0.1% to 30 kHz
Ramps and Sin(x)/x
Frequency Range	0.1mHz to 100kHz	0.1mHz to 500kHz
Freq. Resolution	0.1mHz or 7 digits	0.1mHz or 10 digits
Linearity Error	<0.1% to 30 kHz
Noise Function (TGA1210x only)
Digital noise generated by a 35-bit linear feedback register clocked at 100MHz. User’s external filter defines bandwidth and response.
OPERATING MODES
Continuous
Waveform runs continuously.
Triggered Burst
Each active edge of the trigger signal will produce one burst of the waveform.
Carrier Waveforms	All standard and arbitrary waveforms
Max. Carrier Frequency	1MHz or the maximum for the selected waveform if lower. 40Msamples/s for ARB and Sequence.	2.5MHz or the maximum for the selected waveform if lower. 100Msamples/s for ARB and Sequence.
Number of Cycles	1 to 1,048,575
Trigger Repetition	0.005Hz to 100kHz internal, dc to 1MHz external.
Trigger Signal Source	Internal from keyboard, previous channel, next channel or trigger generator. External from TRIG IN or remote interface.
Trigger Start/Stop Phase	± 360° settable with 0.1 o resolution, subject to waveform frequency and type.
Gated
Waveform will run while the Gate signal is true and stop while false.
Carrier Waveforms	All standard and arbitrary waveforms
Max. Carrier Frequency	1MHz or the maximum for the selected waveform if lower. 40Msamples/s for ARB and Sequence.	2.5MHz or the maximum for the selected waveform if lower. 100Msamples/s for ARB and Sequence.
Number of Cycles	1 to 1,048,575
Trigger Repetition	0.005Hz to 100kHz internal, dc to 1MHz external.
Gate Signal Source	± 360° settable with 0.1 o resolution, subject to waveform frequency and type.
Sweep
Frequency sweep capability is provided for both standard and arbitrary waveforms. Arbitrary waveforms are expanded or condensed to exactly 4096 points and DDS techniques are used to perform the sweep.
Carrier Waveforms	All standard and arbitrary except pulse, pulse train and sequence.
Sweep Mode	Linear or logarithmic, triggered or continuous.
Sweep Direction	Up, down, up/down or down/up.
Sweep Range	From 1mHz to 16 MHz in one range.	From 1mHz to 40 MHz in one range.
Sweep Time	30ms to 999s	1ms to 999s
Marker	Variable during sweep.
Sweep Trigger Source	The sweep may be free run or triggered from the following: Manually from keyboard. Externally from TRIG IN input or remote interface.
Sweep Hold	Sweep can be held / restarted by the HOLD key.
Multi Channel Sweep (multi-channel units only)
Any number of channels may be swept simultaneously. Amplitude, Offset and Waveform can be set independently for each channel. For TGA124x units the sweep parameters will be the same for all channels. For TGA1210x units the sweep parameters can be set independently for each channel.
Tone Switching
Capability provided for both standard and arbitrary waveforms. Arbitrary waveforms are expanded or condensed to exactly 4096 points and DDS techniques are used to allow instantaneous frequency switching.
Carrier Waveforms	All except pulse, pulse train and sequence.
Frequency List	Up to 16 frequencies from 1mHz to 10MHz.	Up to 16 frequencies from 1mHz to 40MHz.
Trigger Repetition Rate	0.005Hz to 100kHz internal. dc to 1MHz external. Usable repetition rate and waveform frequency depend on the tone switching mode.
Trigger Source	Internal from keyboard, previous channel, next channel or trigger generator. External from TRIG IN or remote interface.
Tone Switching Modes	Gated, Triggered or FSK (see below).
Tone Switching Modes
Gated	The tone is output while the trigger signal is true and stopped, at the end of the current waveform cycle, while the trigger signal is false. The next tone is output when the trigger signal is true again.
Triggered	The tone is output when the trigger signal goes true and the next tone is output, at the end of the current waveform cycle, when the trigger signal goes true again.
FSK	The tone is output when the trigger signal goes true and the next tone is output, immediately, when the trigger signal goes true again. Using 2 channels with their outputs summed together it is possible to generate DTMF test signals.
Trigger Generator
Internal source 0.005 Hz to 100kHz square wave adjustable in 10us steps. 3 digit resolution. Available for external use from any SYNC OUT socket.
OUTPUTS
Main Output - One for each channel
Output Impedance	50Ω
Amplitude Range	5mV to 20Vpp open circuit (2.5mV to 10Vpp into 50Ω). Amplitude can be specified open circuit (hi Z) or into an assumed load of 50Ω or 600Ω in Vpk-pk, Vrms or dBm.
Amplitude Accuracy	2% ±1mV at 1kHz into 50Ω.
Amplitude Flatness	±0.2dB to 200 kHz; ±1dB to 10 MHz; ±2.5dB to 16 MHz.	±0.2dB to 1 MHz; ±0.4dB to 40 MHz;
DC Offset Range	±10V from 50Ω. Offset plus signal peak limited to ±10V.
DC Offset Accuracy	Typically 3% ±10mV, unattenuated.
Resolution	3 digits or 1mV for both Amplitude and DC Offset.
Auxiliary Sine Output

TGA124x	TGA12101	TGA12102/104
N/A	N/A	Nominal 1Vp-p sinewave, frequency set by system clock, frequency 0.1Hz to 50MHz.

Sync Out - One for each channel
Waveform Sync (all waveforms)	Square wave with 50% duty cycle at the main waveform frequency, or pulse coincident with the first few points of an arbitrary waveform.
Position Markers (Arbitrary only)	Any point(s) on the waveform may have associated marker bit(s) set high or low.
Burst Done	Produces a pulse coincident with the last cycle of a burst.
Sequence Sync	Produces a pulse coincident with the end of a waveform sequence.
Trigger	Selects the current trigger signal. Useful for synchronizing burst or gated signals.
Sweep Sync	Outputs a pulse at the start of sweep to synchronize an oscilloscope or recorder.
Sweep Marker	N/A	Additional pulse for use as sweep marker.
Phase Lock Out	Used to phase lock two generators. Produces a positive edge at the 0° phase point.
Signal Level	Logic levels of <0.8V and >3V for all outputs.	Logic levels of <0.8V and >3V for all outputs except
Sweep Sync. Signal Level (Sweep Sync. only)	N/A	3 level waveform - as above but plus narrow +1V pulse at marker.

Cursor/Marker Out (TGA124x units only)
Adjustable output pulse for use as a marker in sweep mode or as a cursor in arbitrary waveform editing mode. Can be used to modulate the Z axis of an oscilloscope or be displayed on a second ‘scope channel.
Signal Level	Adjustable from nominally 2V to 14V, normal or inverted; adjustable width as a cursor.	N/A
Output Impedance	600Ω typical	N/A
INPUTS
Trig In
Frequency Range	DC to 1MHz.
Signal Range	Threshold nominally TTL level; maximum input ±10V.	Threshold adjustable over ±5V range; maximum input ±10V.
Min. Pulse Width	50ns, for Trigger/Gate; 50us for Sweep mode.
Polarity	Selectable as high/rising edge or low/falling edge.
Input Impedance	Typically 10 kΩ
Modulation In
Frequency Range	DC to 100kHz	DC to 100kHz.
VCA Signal Range	Approximately 1V pk-pk for 100% level change at maximum output.
SCM Signal Range	Approximately ± 1Vpk for maximum output.
Input Impedance	Typically 1 kΩ.

Sum In
	TGA124x	TGA12101	TGA12102/4
Frequency Range	DC to 8MHz. .	DC to 30MHz. .	DC to 16MHz
Signal Range	Approximately 2 Vpk-pk input for 20Vpk-pk output.
Input Impedance	Typically 1 kΩ.
Hold
Holds an arbitrary waveform at its current position. A TTL low level or switch closure causes the waveform to stop at the current position and wait until a TTL high level or switch opening which allows the waveform to continue. The front panel MAN HOLD key or remote command may also be used to control the Hold function. While held the front panel MAN TRIG key or remote command may be used to return the waveform to the start. The Hold input may be enabled independently for each channel. Input impedance is10k&Omega.

Ref Clock In/Out
	TGA124x	TGA1210x
Set to Input	Input for an external 10MHz reference clock. TTL/CMOS threshold level.
Set to Output	Buffered version of the internal 10MHz clock. Output levels nominally 1V and 4V from 50Ω.
Set to Phase Lock	Used together with SYNC OUT on a master and TRIG IN on a slave to synchronise (phase lock) two separate generators.
ARB Clock In/Out
TGA1210x generators can use an external signal as the arbitrary waveform clock. The TGA12102 and TGA12104 also include an internal system clock generator (in addition to the individual channel clock generators). The output of this system clock can be made available to drive external circuitry or the input of another generator.

TGA124x

TGA12101

TGA12102/4

Set to Input

N/A

Input for an external Arb clock.
TTL/CMOS threshold level.

Set to Output

N/A

Outputs System Clock, logic level <0.8V to >3V

Frequency Range

N/A

DC to 50MHz.

Max. Input Voltage

N/A

+5V, -1V.

MULTI-CHANNEL OPERATION

Channel Relationships

The channels of a multi-channel unit can be operated entirely independently, as if they were separate generators. The "copy" key allows the settings of any channel to be instantly copied to another when required. Alternatively, inter-channel relationships of modulation, summing, triggering, or phase locking can be set up.

System Clock

The TGA12102/12104 units incorporate an additional frequency generator which can be used as a clock source for multi-channel arbitrary waveforms and as an auxiliary output.

TGA124x

TGA12101

TGA12102/104

Frequency Range

N/A

DC to 50MHz.

Frequency Resolution

N/A

0·1Hz

The output of the system clock is available as a 1 volt pk-pk sinewave at the Auxiliary Sine Out socket, and as a logic level squarewave at the Ext. ARB In/Out socket.

When not being used as a clock source for multi-channel arbitrary waveforms, the system clock provides an independent fixed amplitude sine or square output which is additional to the two or four main channel outputs.

Inter-channel Modulation

The waveform from any channel may be used to Amplitude Modulate (AM) or Suppressed Carrier Modulate (SCM) the next channel. Alternatively any number of channels may be Modulated (AM or SCM) with the signal at the MODULATION input socket.

TGA1242/1244/12102/12104

Carrier frequency

Entire range for selected waveform.

Carrier waveforms

All standard and arbitrary waveforms.

Modulation Types

AM: Double sideband with carrier.
SCM: Double sideband suppressed carrier.

Modulation source

Internal from the previous channel. External from Modulation input socket. The external modulation signal may be applied to any number of channels simultaneously.

Frequency Range

DC to >100 kHz.

Internal AM Depth

0% to 105%.

Internal AM Resolution

1%.

Carrier Suppression (SCM)

> 40dB.

External Modulation Signal Range

VCA: Approximately 1V pk-pk for 100% level change at maximum output.

SCM : Approximately ± 1Vpk for max. output.

Multi Channel Sweep

Any number of channels may be swept simultaneously. Amplitude, Offset and Waveform can be set independently for each channel.
For TGA124x units the sweep parameters will be the same for all channels. For TGA1210x units the sweep parameters can be set independently for each channel.

Inter-channel Analogue Summing
Waveform Summing sums the waveform from any channel into the next channel. Alternatively any number of channels may be summed with the signal at the SUM input socket.
	TGA1242/1244	TGA12102/104
Carrier frequency	Entire range for selected waveform.
Carrier waveforms	All standard and arbitrary waveforms.
Sum source	Internal from the previous channel. External from SUM IN socket.
Frequency Range	DC to >8MHz.	DC to >16MHz.
External Signal Range	Approx. 5Vpk-pk input for 20Vpk-pk output.	Approx. 2Vpk-pk input for 20Vpk-pk output.
Input Impedance	Typically 1 kΩ.
Phase Resolution (DDS waveforms)	0.1 degree.
Phase Resolution (Non DDS waveforms)	0.1 degree or 360 degrees/number of points.
Clock Source	Master Channel.	Master Channel, System Clock or Ext. ARB clock
Phase Error	<±10ns.	<±5ns (master channel) <±2ns (external ARB or system clock).
INTERFACES
IEEE488	Conforms with IEEE488.1 and IEEE488.2
RS232	Variable Baud rate, 9600 Baud maximum.	Variable Baud rate, 38400 Baud maximum.
USB	N/A	Conforms with USB1.1
GENERAL
Display	20 character x 4 row alphanumeric LCD.
Data Entry	Keyboard selection of mode, wave etc., value entry direct by numeric keys or by rotary control.
Memory Card	N/A	Removable card slot conforming to the Compact Flash standard. Sizes 32MB to 1GB.
Waveform Storage (non volatile)A	Up to 100 waveforms within 256K words.A	Up to 500 waveforms per CF card.
Stored Settings	Up to 9 full set-ups. A	Up to 500 full set-ups per CF card.

Tech Specs

Generators / Counters/Function Generator Template
Channels	1
Frequency Maximum	16 MHz
Frequency Minimum	1 mHz (milihertz) (0.001 Hz)
Functions	Pulse, Ramp, Sine, Square, Triangle Functions Haversine Sin(x)/x
Max Amplitude Vpp @ 50 ohms	10 V
Arbitrary	Yes
Sample Rate	40 MS/S (40 MSa/S)
Screen Type	LCD
Color Screen	Yes
Digital Amplitude Resolution	16 Bits
Triggering	Yes
Counter that displays frequency on screen.	Yes
Modulation Types	AM Modulation Types SCM
Graphical Display	Yes
Memory	64 kB
Test Equipment General Attributes
Unique Features	40MS/s single channel waveform generator in 3U half rack size case.
Warranty	3 YEARS
Warranty Details	For all Aim-TTi products purchased after 1st June 2013, the warranty can be extended to three years from the date of purchase. Customers can extend the standard 1 year warranty on their product to three years by registering within 3 months of purchase. Registration is free and will ensure that products purchased from our worldwide distributors are warranted from the purchase date, rather than the date of manufacture, in order to fully utilise the warranty period. Up to five products can be registered simultaneously using the form.
Interfaces I/O	GPIB, RS-232
Product Weight	4.1 KILOS (9.04 LBS)
Product Height	130 MM (5.12 IN)
Product Length	335 MM (13.19 IN)
Product Width	212 MM (8.35 IN)
Shipping Weight	5.40 LBS
Country of Origin	United Kingdom

0

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

TTi TGA1241 - 40MS/s Single Channel Waveform Generator in 3U Half Rack Size Case

Recommended for you

Accessories

for the Aim-TTi TGA1241

Cal Test CT4103 Universal Adapter Kit

Cal Test CT4036 Function Generator And Freq. Counter Accessory Kit

Aim-TTi GPIB 1A GPIB InterfaceOption Retrofits TG/F/P/R, LD, TSX-P and MX-P, QPX, CPX,...

Aim-TTi RM300A 3U Rack Mount for half rack instrument, incl 1/2 rack blanking plate

Aim-TTi 48600-0010-1 Calibration certificate with results for ARB gener/PSA/TGR/LCR/HA1600

TTi TGA1241 - 40MS/s Single Channel Waveform Generator in 3U Half Rack Size Case

TGA1200 Series - Main Features

Tech Specs

Generators / Counters/Function Generator Template

Test Equipment General Attributes

0

Featured Review

We'd love to hear from you

Real people, here to help you.

Get Connected

My Account

Promotions & Offers

Resources

Company
