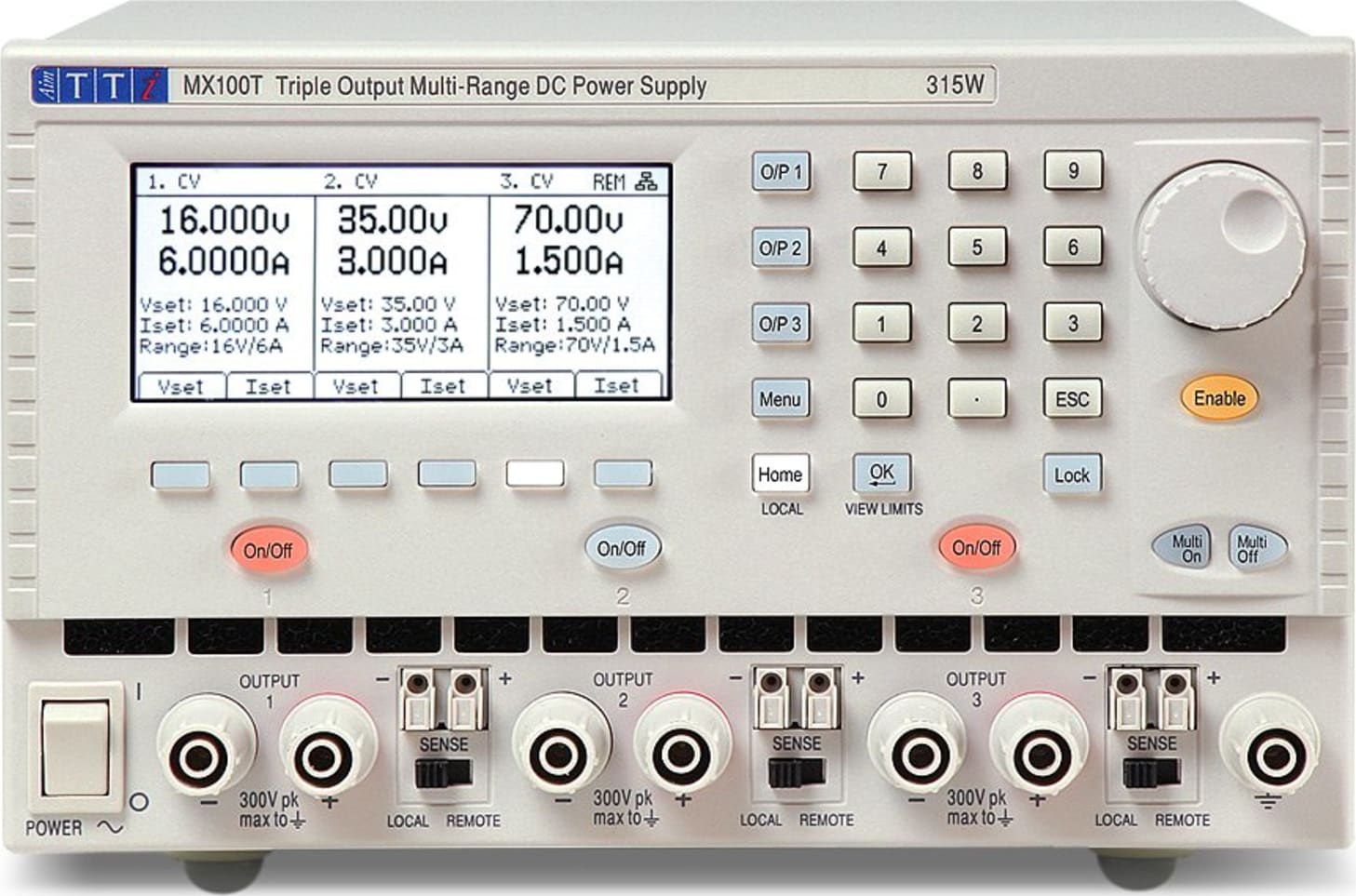

| OUTPUT SPECIFICATIONS |
| Ranges |
Range 1 - 0V to 35V at 1mA to 3A; Range 2 - 0V to 16V at 1mA to 6A |
| Operating Mode |
Constant voltage or constant current with automatic cross-over and mode indication |
| Load regulation |
<0.01% +5mV (CV mode) for any load change using remote sense. |
| Line regulation |
<0.01% +5mV (CV mode) for a 10% line voltage change. |
| Ripple & Noise |
Typically <0.5mV rms, <5mV pk-pk, 1mV rms max. (20MHz bandwidth). |
| Transient Response |
<100us to within 50mV of set level for 5% to 95% load change. |
| Over Voltage Trip |
Settable 1V to 40V in 0.1V steps |
| Over Current Trip |
Settable 0.1A to 7A in 0.01A steps |
| Sensing |
Selectable local or remote sensing |
| Ranges |
Range 1 - 0V to 35V at 1mA to 3A; Range 2 - 0V to 16V at 1mA to 6A
Range 3 - 0V to 35V at 1mA to 6A* (available when output 3 is disabled) |
| Operating Mode |
Constant voltage or constant current with automatic cross-over and mode indication |
| Load regulation |
<0.01% +5mV (CV mode) for any load change using remote sense |
| Line regulation |
<0.01% +5mV (CV mode) for a 10% line voltage change |
| Ripple & Noise |
Typically <0.5mV rms, <5mV pk-pk, 1mV rms max. (20MHz bandwidth) |
| Transient Response |
<100us to within 50mV of set level for 5% to 95% load change |
| Over Voltage Trip |
Settable 1V to 40V in 0.1V steps |
| Over Current Trip |
Settable 0.1A to 7A in 0.01A steps |
| Sensing |
Selectable local or remote sensing |
| Ranges |
Range 1 - 0V to 35V at 1mA to 3A; Range 2 - 0V to 70V at 1mA to 1.5A
Range 3 - 0V to 70V at 1mA to 3A* (available when output 2 is disabled) |
| Operating Mode |
Constant voltage or constant current with automatic cross-over and mode indication |
| Load regulation |
<0.01% +5mV (CV mode) for any load change using remote sense |
| Line regulation |
<0.01% +5mV (CV mode) for a 10% line voltage change |
| Ripple & Noise |
Typically <0.5mV rms, <5mV pk-pk, 1mV rms max. (20MHz bandwidth)
70V range - typically <1mV rms, <10mV pk-pk, 1.5mV rms max |
| Transient Response |
<100us to within 50mV of set level for 5% to 95% load change |
| Over Voltage Trip |
Settable 1V to 80V in 0.1V steps |
| Over Current Trip |
Settable 0.1A to 3.5A in 0.01A steps |
| Sensing |
Selectable local or remote sensing |
| External Voltage |
Output will withstand forward voltages of up to 50V (O/Ps 1 and 2) or 80V (O/P 3). Reverse protection by diode clamp, 3A max.. |
| Fault Trip |
The output will be shut down if a trip conditions listed below occurs. |
| OVP or OCP |
Exceeding over-voltage or over-current settings for the output. |
| Over Temperature |
Monitors internal temperature rise to protect against excess ambient temperature or blocked ventilation slots. |
| Sense Error |
Monitors the voltage between the remote sense terminals and output terminals to protect against mis-wiring. |
| Output Terminals |
Universal 4mm safety binding posts on 19mm (0·75”) spacing at front.
Screw terminals at rear (MX100TP only). |
| Terminals can accept fixed shroud 4mm plugs, standard 4mm plugs, fork terminals and bare wires |
| Sense Terminals |
Sprung loaded screw-less terminals at front.
Screw terminals at rear (MX100TP only). |
| OUTPUT ON/OFF SWITCHING |
| Individual On/Off |
Individual keys for each output. On state indicated by key illumination. |
| Multi-On/Multi-Off |
Separate keys enable any combination of outputs to be turned on or off either simultaneously (default) or with timed delays from 10ms and 20s. Delayed operation indicated by flashing key illumination. |
| VOLTAGE TRACKING |
| The power supply can be set so that the voltage of an output is automatically set equal to that of another output and tracks any changes. |
| Tracking Modes |
None, V2 tracks V1, V3 track V2, V2 and V3 both track V1. |
| SETTING MEMORIES |
| No. of Stores |
50 per output |
| Parameters Stored |
Range, Set Volts, Set Current, OVP, OCP |
| No. of Stores |
50 |
| Parameters Stored |
Range, Set Volts, Set Current, OVP, OCP (for all three outputs) |
| METERING |
| Meter Function |
5 digit voltage and current meters (O/P 1), 4 digit voltage and current meters (O/Ps 2 & 3). Simultaneous display of actual and set values. |
| Meter Resolution |
1mV/0.1mA (O/P 1), 10mV/1mA (O/Ps 2 & 3). |
| Meter Accuracy |
As per setting accuracy (CV mode). |
| V x A |
Calculated power in watts. Resolution 0.01W. Accuracy 0·5% ± 3 digits |
| GENERAL SPECIFICATIONS |
| AC Input |
110V to 240V AC ±10%, 50/60Hz. Installation Category II |
| Input Power |
500VA max |
| Operating Range |
+5ºC to +40ºC, 20% to 80% RH |
| Storage Range |
-40ºC to + 70ºC |
| Environmental |
Indoor use at altitudes up to 2000m, Pollution Degree 2 |
| Cooling |
Intelligent variable-speed fans. |
| Safety |
Complies with EN61010-1 |
| EMC |
Complies with EN61326 |
| Size |
212 x 130 x 375mm (WxHxD) (half rack x 3U height) |
| Weight |
4.8kg |
