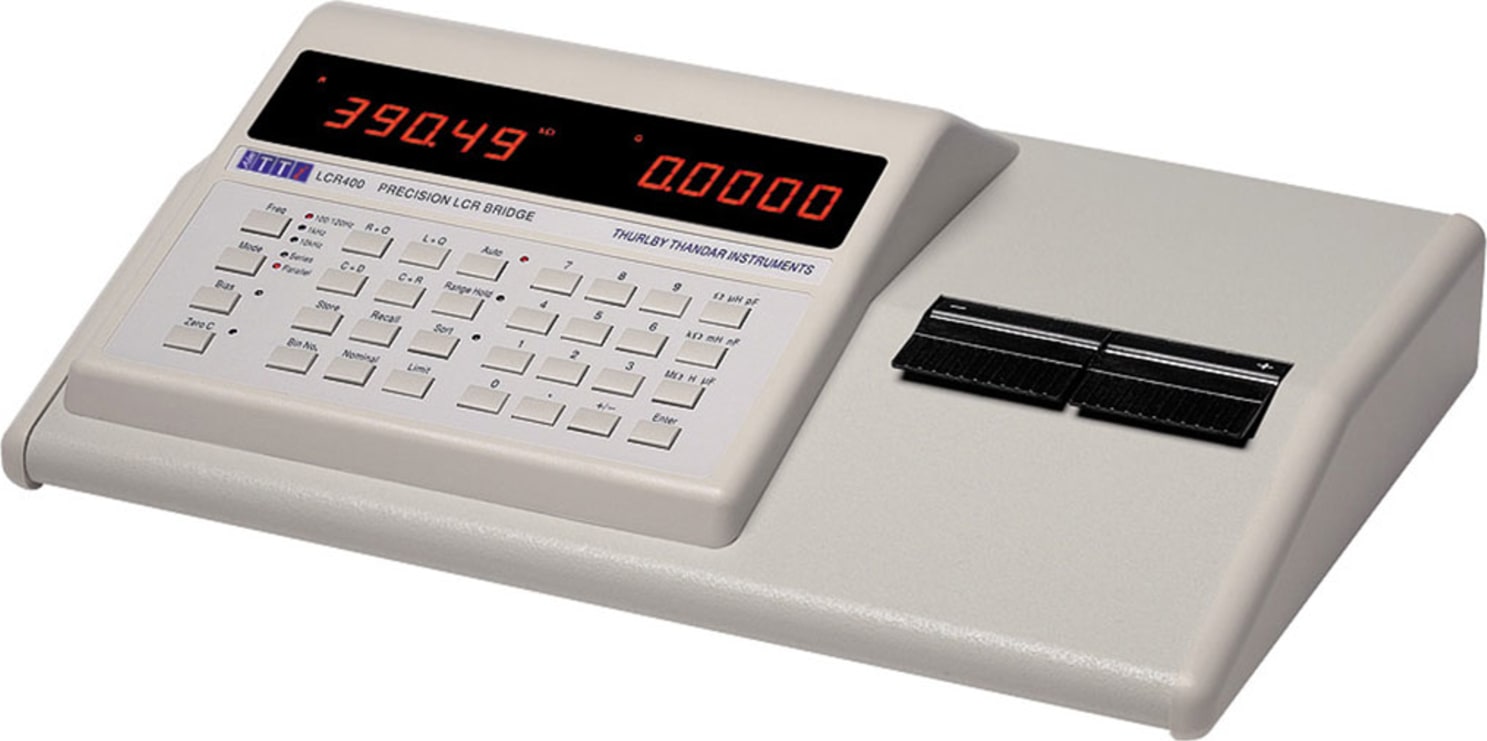

TTi LCR400 - Precision LCR Meter with Component Fixture and Limits Comparator

Name: TTi LCR400 - Precision LCR Meter with Component Fixture and Limits Comparator
Brand: Aim-TTi
SKU: TTiLCR400
Price: 1206.00 USD
Availability: InStock

0 reviews | Catalog: 58123-0030 | Model: Aim-TTi LCR400

Compare

LCR Meter 0.1% basic accuracy

0.1% basic measurement accuracy
Dual 5 digit high brightness displays
Automatic component recognition
Built-in 4 terminal component fixture
Limits comparator with 8 Pass bins plus 2 Fail bins
Three test frequencies, switchable bias
RS232 interface standard
Optional Surface Mount Tweezers, BNC connectors, Kelvin Clip test lead set, and PC logging software

View Product Details

Your Price: $1,206.00

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Aim-TTi LCR400 Accessories

Choose a Category

Warranty and Calibration

for the Aim-TTi LCR400

Aim-TTi 48600-0010-1 Calibration certificate with results for ARB gener/PSA/TGR/LCR/HA1600

Catalog: 48600-0100-1

(0)

In Stock!

Add to Cart

TTi LCR400

0.1% basic measurement accuracy
Dual 5 digit high brightness displays
Automatic component recognition
Built-in 4 terminal component fixture
Limits comparator with 8 Pass bins plus 2 Fail bins

Precision LCR Meter with Component Fixture and Limits Comparator

Bridging the price-performance gap

Anyone who has tried to purchase a high accuracy meter for LCR measurement at a reasonable cost will have discovered the problem. There are plenty of low-cost hand-held LCR meters available, but the accuracy is poor and the facilities very limited. There are plenty of high-performance LCR bridges available, but the costs are typically an order of magnitude greater than the simple hand-held units. The LCR400 bridges the gap. It provides the performance and facilities required for precision component measurement at a price not far above that of a hand-held unit. The LCR400 is a low-cost precision LCR bridge intended for use within the component inspection, laboratories, and production facilities. The basic measurement accuracy is 0.1% and the maximum measurement frequency is 10kHz.

MEASUREMENT FUNCTIONS
Parameters Measured	R, L, C, D, & Q.
Parameter Selection	Manual or automatic selection of R, L or C.
Measurement Modes	Series or parallel equivalent circuit.
Range Hold	Prevents autoranging when changing components.
Zero Function	Nulls out up to 100pF at test fixture.
Measurement Freq.	Selectable as 100Hz/120Hz, 1kHz, 10kHz.
Displayed Functions	R+Q, L+Q, C+D, C+R
MEASURING RANGES
Resistance	0.1mΩ to 990MΩ
Inductance	0.001H to 9900H
Capacitance	0.001pF to 99000µF
LIMITS COMPARATOR
Limits Set-up	Multiple Upper and Lower limits can be set from keyboard or from RS-232 interface
Binning	Up to 8 Pass bins can be defined plus Fail on minor parameter and general Fail.
COMPONENT CONNECTION
Component Connection	4-terminal connection via internal fixture for both radial and axial components. External 4-terminal connection via adaptor.
Internal Fixture	Sprung jaws for vertical lead insertion. Plug-in sliding pillars for horizontal lead insertion.
Bias Voltage	Switchable 2V polarising voltage. External bias up to 50V can be applied.
Protection	Can withstand charged capacitors up to 50V and up to 1 Joule of total energy
DISPLAY
Display Type	Dual 5-digit 0.56” LEDs.
Annunciators	LED annunciators for all functions and measurement units.
Displayed Functions	R+Q, L+Q, C+D, C+R, PASS/FAIL, Bin No.
DIGITAL INTERFACE
Interface Type	RS-232 via 9 pin D connector, 9600 baud.
Interface Function	Full command and readback capability.
GENERAL
Keyboard	Full numeric keyboard.
Non-volatile memory	Up to 9 complete set-ups.
Input Voltage	230V or 115V ±14%, 50/60Hz, internally adjustable, 25VA max. Installation Category ll.
Temperature Range	+5°C to 40°C operating 20 - 80% RH, -40°C to 70°C storage.
Safety	Complies with EN61010-1.
EMC	Complies with EN61326.
Size	360 x 240 x 95 mm including feet.
Weight	2.9kg.
OPTIONAL ACCESSORIES
SMD Tweezers	Four terminal tweezers for measuring surface mount components. Connects directly into standard test fixture.
BNC Adaptor	Plugs into the standard component fixture to convert it into a set of four BNC connectors. Supplied complete with four BNC to BNC leads.
Kelvin Clip Leads	High quality Kelvin Clip test lead set terminating in BNC plugs (requires BNC adaptor).
LCR PC-Link	Windows based software which uses the RS232 interface to provide results logging and to store/restore instrument set-ups.

LCR Meters / Impedance Measurement Products /LCR Meters Template
Type	Benchtop
Max Test Frequency	10 kHz
Max Capacitance	99000 uF (99 mF)
Max Resistance	990 M Ohms
Max Inductance	9900 H (9900000 mH)
Impedance Accuracy Range	0.1%
Measurements Parameters	Capacitance (C), Inductance (L)
Auto Ranging	Yes
Graph Mode	No
Data Hold	Yes
Test Equipment General Attributes
Unique Features	0.1% basic measurement accuracy
Warranty	3 YEARS
Warranty Details	For all Aim-TTi products purchased after 1st June 2013, the warranty can be extended to three years from the date of purchase. Customers can extend the standard 1 year warranty on their product to three years by registering within 3 months of purchase. Registration is free and will ensure that products purchased from our worldwide distributors are warranted from the purchase date, rather than the date of manufacture, in order to fully utilise the warranty period. Up to five products can be registered simultaneously using the form.
Interfaces I/O	RS-232
Product Weight	2.9 KILOS (6.39 LBS)
Country of Origin	United Kingdom
