4 (1 Review) | Catalog: 58122-0720 | Model: Aim-TTi 1604
4 digit LED TRMS
List Price: $338.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(13)
In Stock!
(4)
(1)
(0)

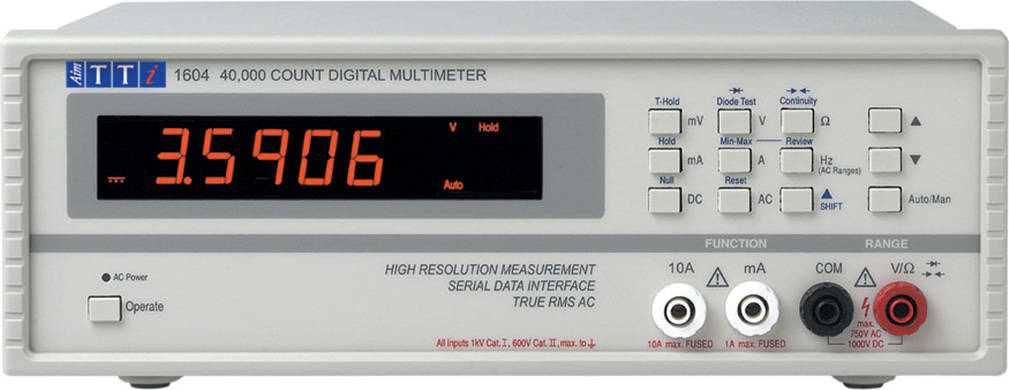

A Value-For-Money DMM The 1604 is a low-cost auto/manual ranging bench-top DMM with a large and bright LED display. It offers 4¾ digit (40,000 count) scale length, true RMS ac measurements, a basic accuracy of 0.08% and a resolution of 10μV, 10m and 0.1μA. A Substantial Bench-top instrument The 1604 is a robust mains-powered bench-top instrument. Unlike a hand-held multimeter it stays where you put it even with heavy test leads connected. The multi-position tilt stand ensures that the large display is always readable. Smart Functions The 1604 incorporates several “smart” functions such as Relative measurement and Minimum-Maximum storage. The T-Hold function enables readings to be held on the display automatically each time a new test point is probed. True RMS ac Ranges All AC measurements on the 1604 are True RMS. This avoids the errors on non-sinusoidal waveforms associated with other multimeters. Good ac bandwidth enables measurement within the audio band and ensures that higher frequency components of switching waveforms are included within the measurement result. Frequency Measurement The 1604 has a frequency function which can be selected on any ac range in order to measure the frequency of the signal. Frequencies up to 40kHz can be measured and the maximum resolution is 0.1Hz. Isolated RS-232 interface The 1604 is fitted with an isolated RS-232 interface. This permits remote control and data-logging to disk using optional Windows based software.
Please select a rating star.
Please complete this field.
Email Adrress is not Valid.
Almost there, please complete all required fields
Out of 5
Average Customer Review
View All Reviews
Share your thoughts with other customers
Displaying 1 review
Most Helpful First | Newest First
Recommend to a Friend
RS232 Interfacing - Visual Basic
4.0
My company purchased a number of these and I am writing an automated test program. If you are thinking SCPI... Forget it. You are reading a 10 digit binary off the face-plate. Must convert from 7 segment and scale status bits to get a real number to record. Yes, that was the easy part. DONE. Frequency Measurement locks up the RS232 interface when selected. So I left that out of the tool set. Another quirk is that the MIN/MAX values of AC voltage is swapped when reviewed.... Something to watch out for when programming this in. Just about done with the program. I actually like these since they are cheap, light, and bulky enough that no one will steal/borrow them. Just plop one down on a test set and forget about it.
Rob on Apr 27, 2018 I found this helpful (1)
