TSI RVA501 Anemometer / Air Flow - Type (anemometer): Vane, Measurement (anemometer): Ft/Min, Air Velocity Max: 6000 ft/min

Name: TSI RVA501 Anemometer / Air Flow - Type (anemometer): Vane, Measurement (anemometer): Ft/Min, Air Velocity Max: 6000 ft/min
Brand: TSI ALNOR
SKU: TSIRVA501
Price: 913.50 USD
Availability: InStock
Rating: 4.00 (1 reviews)

4 (1 Review) | Model: TSI ALNOR RVA501

Compare

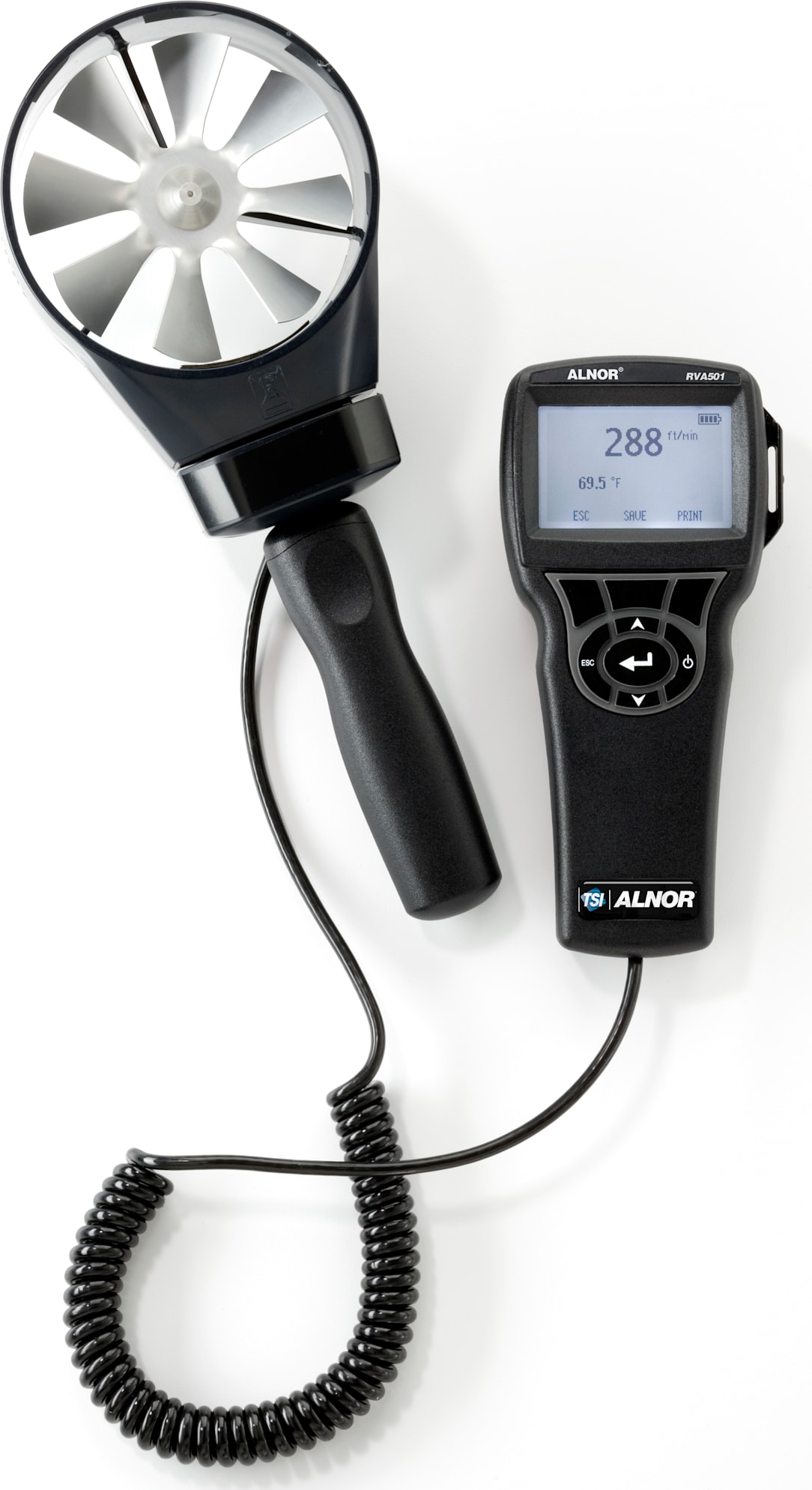

Rotating Vane Anemometer

Measures velocity and temperature
Sweep mode for one overall measurement of large areas
Log, store, and recall data
Download data to a PC using LogDat2 downloading software
Measurement range: 50–6000 ft/min (0.25–30 m/s)
Optional telescopic probe available
Compatible with Aircone Flow Hoods

View Product Details

List Price: $1,015.00

Your Price: $913.50

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	TSI ALNOR RVA501 Rotating Vane Anemometer	TSI ALNOR RVA801 Rotating Vane Anemometer
Rating	(1)	(3)
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

The Alnor® Rotating Vane RVA501 is a handheld digital rotating vane anemometer that measures air velocity, air volume, and temperature in imperial or metric units. The four-inch (100mm) head automatically averages velocity and volume readings, making the RVA501 an essential tool for measuring unevenly distributed or fluctuating flows through heating and cooling coils, diffusers, grilles, and filters. Sweep mode quickly and reliably provides one averaged reading of velocity or volume over a large measurement area. The detachable head is ideal for taking measurements in tight spaces. Its optional telescoping probe provides safe access to hard-to-reach locations and its data logging capability allows storage of more than 12,700 readings.

Ideal applications include heating and cooling coil analysis, diffuser and grille measurements, indoor air quality tests and filter face velocity measurements.

Velocity
Range	50 to 6,000 ft/min (0.25 to 30 m/s)
Accuracy	±1.0% of reading ±4 ft/min (±0.02 m/s)
Duct Size
Range	0 to 500 ft2 (0 to 46.45 m2 )
Volumetric Flow Rate
Range	Actual range is a function of velocity and duct area
Temperature
Range	40 to 113°F (5 to 45°C)
Accuracy	±2.0°F (±1.0°C)
Resolution	0.1°F (0.1°C)
Instrument Temperature Range
Operating (Electronics)	40 to 113°F (5 to 45°C)
Storage	-4 to 140°F (-20 to 60°C)
Data Storage Capabilities Range	12,700+ samples and 100 test IDs
Logging Interval	From 1 second to 1 hour
Time Constant	User selectable
External Meter Dimensions	3.3 in. x 7.0 in. x 1.8 in. (8.4 cm x 17.8 cm x 4.4 cm)
Meter Weight with Batteries	0.6 lbs. (0.27 kg)
Power Requirements	Four AA-size batteries or AC adapter

Tech Specs

Environmental Testers / Physical Property/Anemometer / Air Flow Template
Type (anemometer)	Vane
Measurement (anemometer)	Ft/Min, m/s
Air Velocity Max	6000 ft/min
Air Velocity Min	50 ft/min
Accuracy Air Velocity	±1.0% of reading ±4 ft/min (±0.02m/s)
Temperature	Yes
Test Equipment General Attributes
Unique Features	Rectangular and circular cones available Measures volumetric flow at grilles and diffusers Reads air volume quickly and accurately Excellent choice for small grilles
Warranty	24 MONTHS (2 YEARS)
Warranty Details	a. Hot-wire or hot-film sensors used with research anemometers, and certain other components when indicated in specifications, are warranted for 90 days from the date of shipment. b. Pumps are warranted for hours of operation as set forth in product or operator’s manuals. c. Parts repaired or replaced as a result of repair services are warranted to be free from defects in workmanship and material, under normal use, for 90 days from the date of shipment. d. Seller does not provide any warranty on finished goods manufactured by others or on any fuses, batteries or other consumable materials. Only the original manufacturer's warranty applies. e. Unless specifically authorized in a separate writing by Seller, Seller makes no warranty with respect to, and shall have no liability in connection with, goods which are incorporated into other products or equipment, or which are modified by any person other than Seller.
Product Weight	0.6 LBS
Product Height	4.90 IN
Product Length	16.60 IN
Product Width	12.70 IN
Data Logging	Yes
HTS/Schedule B Number	9026.20.8000
ECCN Number	EAR99
Calibration Included	NIST Calibration
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	United States
Shipping Height	4.90 IN
Shipping Length	16.60 IN
Shipping Width	12.70 IN

4

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

Simple and effective

4.0

The TSI RVA501 is a great tool to measure airflow. It takes a basic reading with a live screen display. It would be nice if the vane could be more effective with low velocity airstreams as this needs roughly 25 FPM in order to get a reading.

Verified Purchase Andrew Senecal on Aug 22, 2018
