| Pressure Measurement (Model 5815) |
| Range |
±15 in. W.G. (±3,735 Pa) |
| Resolution |
0.001 in. W.G. (0.1 Pa) |
| Accuracy |
1% of reading ±0.005 in. W.G. (±1 Pa) |
| Actual Duct Static Range |
±10 in. W.G. (±2,500 Pa) at Zero Flow |
| Volume Flow Measurement (Model 9565-P) |
| High leakage range |
Wilson Radial Flow Grid
21 to 424 cfm (10 to 200 l/s), 36 to 720 m3/hr |
| Low leakage range |
Conical Inlet Nozzle Adapter
2 to 27.5 cfm (1 to 13 l/s), 3.6 to 46.9 m3/hr |
| Resolution |
0.01 cfm (0.01 l/s), 0.01 m3/hr |
| Accuracy |
±2.5% of reading or ±0.02 cfm (±0.01 l/s, ±0.04 m3/hr), whichever is greater |
| Temperature Measurement (Model 9565-P) |
| K Type thermocouple probe |
To EN60584 (IEC 584) |
| Range |
-40 to 1200°F (-40 to 650°C) |
| Resolution |
0.1°F (0.1°C) |
| Accuracy |
±0.1% of reading ±2°F (±0.056% of reading ±1.1°C) |
| Barometric Pressure Measurement (Model 9565-P) |
| Range |
20.36 to 36.648 in. Hg (690 to 1,241 hPa), 517.5 to 930.87 mm Hg |
| Accuracy |
±2% of reading |
| Power requirements |
| Model PAN231 |
220 to 240 V, 1 Phase, 50/60 Hz, 10A |
| Model PAN231-110 |
110 to 120 V, 1 Phase, 50/60 Hz, 16A |
| Weight |
121 lbs (55 kg) |
| Dimensions (L x W x H) |
44.5 in. x 26 in. x 20 in. (1,130 mm x 660 mm x 510 mm) |

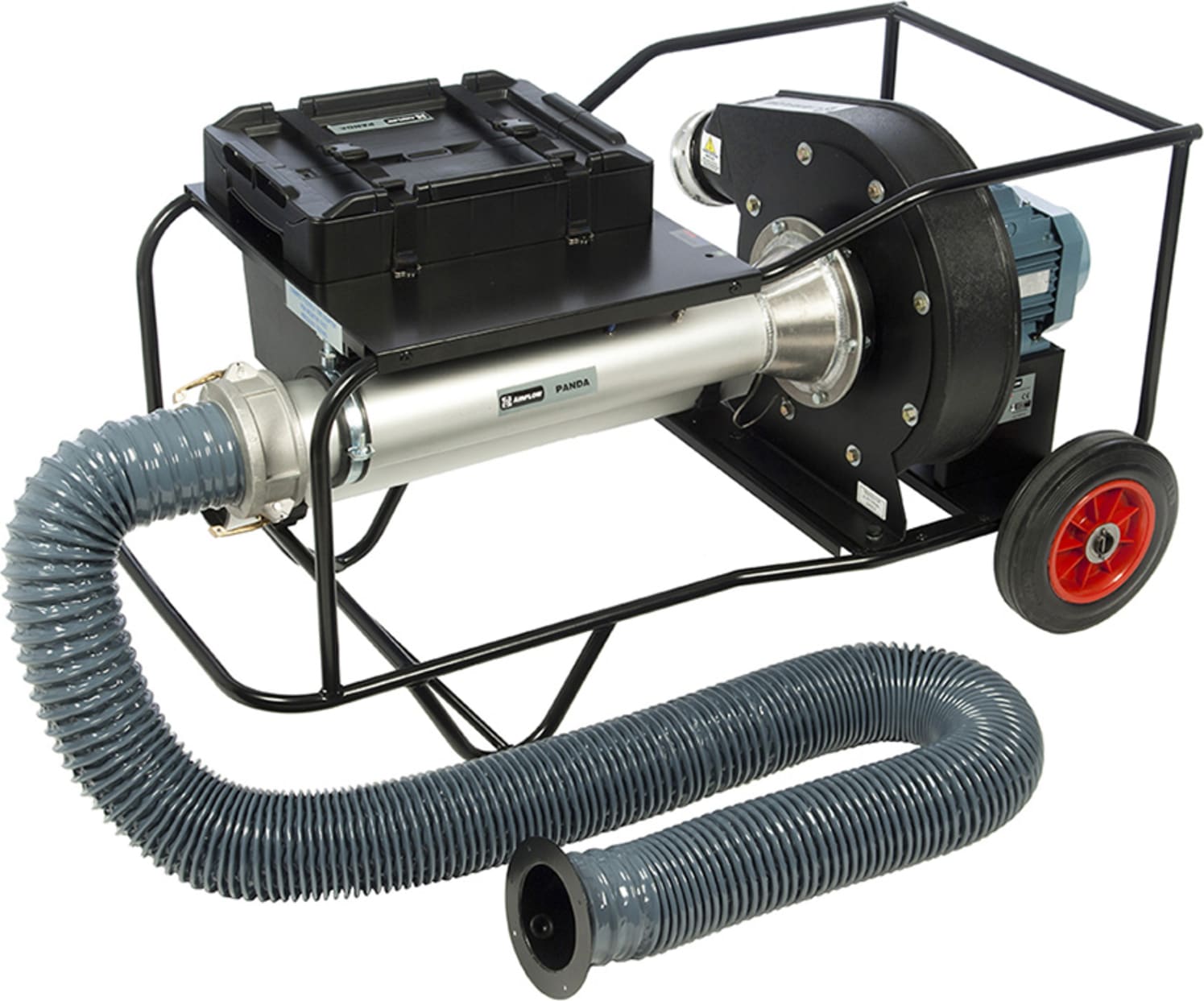

| PAN231, PAN231-110 |
| Instruments included |
VelociCalc® Model 9565-P meter, DP-Calc™ Model 5815 micromanometer. See spec sheets for details on individual instruments. |
