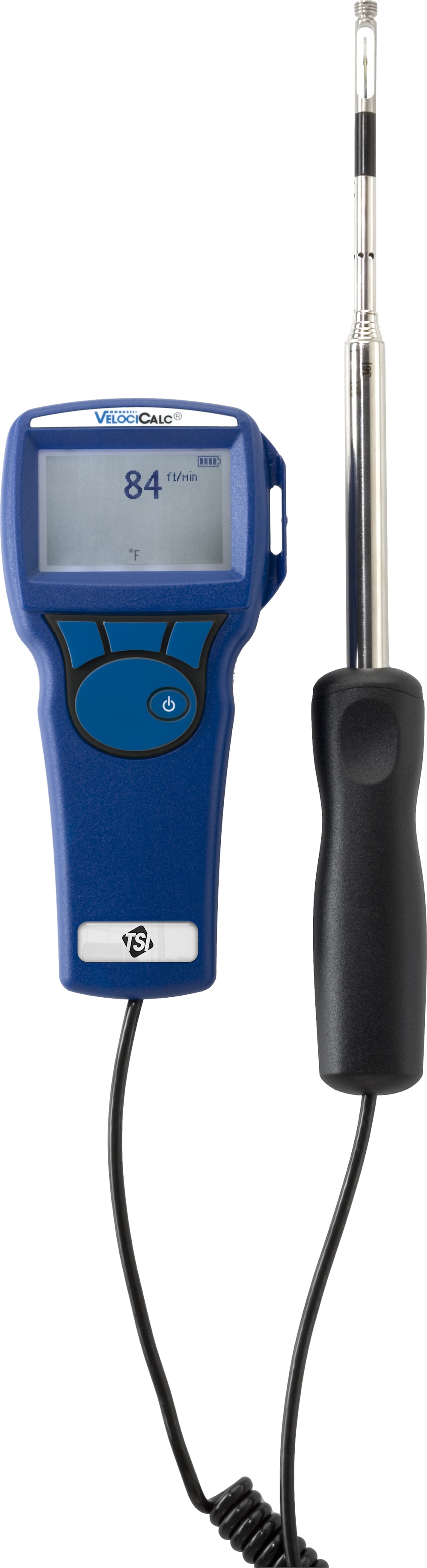

TSI 9515 VelociCalc Air Velocity Meter

Name: TSI 9515 VelociCalc Air Velocity Meter
Brand: TSI ALNOR
SKU: TSI9515
Price: 724.50 USD
Availability: InStock
Rating: 5.00 (3 reviews)

5 (3 Reviews) | Model: TSI ALNOR 9515

Compare

Air Velocity Meter, Temp

Accurate air velocity measurement
Velocity range of 0 to 4,000 ft/min (0 to 20 m/s)
Temperature range of 0 to 200F (-18 to 93C)
Integrated probe attachment
Easy to read display
Comes with a NIST accredited calibration certificate

View Product Details

List Price: $805.00

Your Price: $724.50

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	TSI ALNOR 9515 Air Velocity Meter, Temp	TSI ALNOR 9535 Air Velocity Meter, Straight Probe, Temp, Basic Data Logging	TSI ALNOR 9535-A Air Velocity Meter, Articulated Probe, Temp, Basic Data Logging	TSI ALNOR 9545 Air Velocity Meter, Straight Probe, Temp, Humidity, Data Logging	TSI ALNOR 9545-A Air Velocity Meter, Articulated Probe, Temp, Humidity, Data Logging
Price
In Stock
Measurement (anemometer)	Ft/Min	Ft/Min	Ft/Min	Ft/Min	Ft/Min
Air Velocity Max	4000 ft/min	6000 ft/min	6000 ft/min	6000 ft/min	6000 ft/min
Accuracy Air Velocity	±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater	±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater	±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater	±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater	±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

TSI 9515 VelociCalc Air Velocity Meter

Applications include:

HVAC system performance
Commissioning
Plant maintenance
Critical environment certification
Duct traverse

The VelociCalc Air Velocity Meter 9515 is the economical choice for a digital air velocity meter, without compromising accuracy or precision. Professionals find it an ideal tool for face velocity measurements in fume hoods, spray booths, or for ventilation system checks. The Model 9515 features a 40-inch (101.6 cm) telescoping probe for difficult to reach measurements. This product measures temperature as well.

	9515	9535, 9535-A	9545, 9545-A
Velocity range 0 to 4000 ft/min (0 to 20.00 m/s)	+
Velocity range 0 to 6000 ft/min (0 to 30.00 m/s)		+	+
Temperature	+	+	+
Flow		+	+
Humidity, wet bulb, dew point			+
Probe	Straight	Straight or -A articulated	Straight or -A articulated
Variable time constant		+	+
Manual data logging		+	+
Auto save data logging			+
Statistics		+	+
Review data		+	+
LogDat2™ downloading software		+	+
Certificate of Calibration	+	+	+

General Specifications
Velocity
Range (9515)	0 to 4,000 ft/min (0 to 20 m/s)
Accuracy (9515)	±5% of reading or ±5 ft/min (±0.025 m/s), whichever is greater
Resolution	1 ft/min (0.01 m/s)
Temperature
Range (9515, 9535 and 9535-A)	0 to 200 °F (-18 to 93°C)
Accuracy	±0.5°F (±0.3°C)
Resolution	0.1°F (0.1°C)
Relative Humidity (9545 only)
Range	5 to 95% RH
Accuracy	±3% RH
Range	0.1% RH
Instrument Temperature Range
Operating (Electronics)	40 to 113°F (5 to 45°C)
Models 9515 and 9535 Operating (Probe)	0 to 200°F (-18 to 93°C)
Storage	-4 to 140°F (-20 to 60°C)
External Meter Dimensions
3.3 in. x 7.0 in. x 1.8 in. (8.4 cm x 17.8 cm x 4.4 cm)
Meter Weight with Batteries
0.6 lbs. (0.27 kg)
Meter Probe Dimensions
Probe Length	40 in. (101.6 cm)
Probe Diameter of Tip	0.28 in. (7.0 mm)
Probe Diameter of Base	0.51 in. (13.0 mm)
Articulating Probe Dimensions
Articulating Section Length	7.8 in. (19.7 cm)
Diameter of Articulating Knuckle	0.38 in. (9.5 mm)
Power Requirements
Four AA-size batteries or AC adapter

Tech Specs

Environmental Testers / Physical Property/Anemometer / Air Flow Template
Measurement (anemometer)	Ft/Min
Air Velocity Max	4000 ft/min
Accuracy Air Velocity	±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater
Temperature	Yes
Test Equipment General Attributes
Product Height	3.75 IN
Product Length	15.00 IN
Product Width	10.00 IN
HTS/Schedule B Number	9026208000
ECCN Number	3A992
Calibration Included	NIST Calibration
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	United States

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 3 reviews

Most Helpful First | Newest First

Recommend to a Friend

Second one - Works great like the first!

5.0

Reliable

Bruce Fergusson on Oct 13, 2020

Recommend to a Friend

Great Instrument for Our Needs!

5.0

I ordered and received this great meter for checking the flow on our vent hoods. It arrived and was easy to use and was on overall great purchase!

Verified Purchase J Scott See on Jul 28, 2017

Recommend to a Friend

Anemometer

5.0

This hot wire anemometer was exactly the tool I needed. TEquipment offered the best price for this product.

Verified Purchase Drew M. on Apr 03, 2015
