TSI 5725 VelociCalc Rotating Vane Anemometer

Name: TSI 5725 VelociCalc Rotating Vane Anemometer
Brand: TSI ALNOR
SKU: TSI5725
Price: 913.50 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | Model: TSI ALNOR 5725

Compare

Rotating Vane Anemometer

Reversible 4-inch (100 mm) head to read supply and exhaust flows
Calculates volumetric flow rate when user inputs duct shape and size, or area
Sampling function records multiple point measurements
Automatic averaging of air velocity
Simultaneously displays velocity and temperature
Sweep mode for one overall measurement
Optional 36-inch telescopic probe available
Compatible with optional Aircone flow hoods
Logs 12,700+ samples with a time and date stamp
Recall, review, store data

View Product Details

List Price: $1,015.00

Your Price: $913.50

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

TSI ALNOR 5725 Accessories

Choose a Category

HVAC Accessories

for the TSI ALNOR 5725

TSI ALNOR 801748 RV Telescopic Rod

Catalog: 801748

(0)

In Stock!

Add to Cart

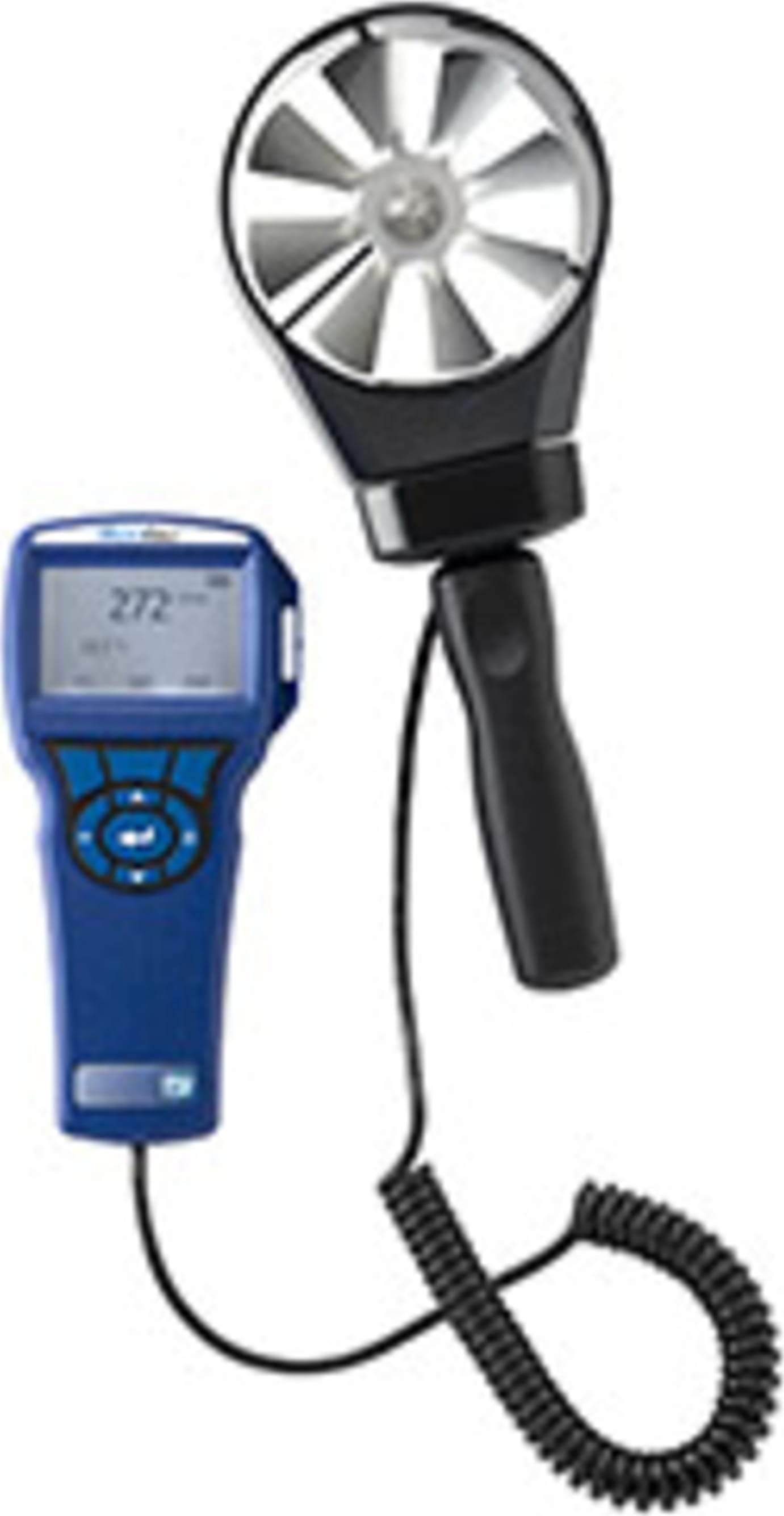

The VelociCalc® Rotating Vane Anemometer 5725 is a high performance, yet simple - to - use, rotating vane anemometer. High accuracy and reliability make the VelociCalc 5725 the professional's ideal tool for measuring unevenly distributed or fluctuating flows through heating and cooling coils, diffusers, grilles, and filters.

It accurately measures air velocity and temperature, calculates flow rate, performs averaging, and can determine minimum and maximum readings. Using sweep mode you can quickly provide one averaged reading of velocity or volume over a large measurement area. The large vane head automatically averages velocity and volume readings. The VelociCalc 5725 includes variable time constant, sampling and statistics functions and data logging capability.

APPLICATIONS:

Heating and cooling coil analysis
Diffuser and grille measurements
Fume hood face velocity tests
Indoor air quality tests
Filter face velocity measurements

Velocity
Range	50 to 6,000 ft/min (0.25 to 30 m/s)
Accuracy	±1.0% of reading ±4 ft/min (±0.02 m/s)
Duct Size
Range	0 to 500 ft2 (0 to 46.45 m2)
Volumetric Flow Rate
Range	Actual range is a function of velocity and duct area
Temperature
Range	40 to 113°F (5 to 45°C)
Accuracy	±2.0°F (±1.0°C)
Resolution	0.1°F (0.1°C)
Instrument Temperature Range
Operating (Electronics)	40 to 113°F (5 to 45°C)
Storage	-4 to 140°F (-20 to 60°C)
Data Storage Capabilities
Range	12,700+ samples and 100 test IDs
Logging Interval	1 second to 1 hour
Time Constant	User selectable
External Meter Dimensions (H x W x D)	3.3 in. x 7.0 in. x 1.8 in. (8.4 cm x 17.8 cm x 4.4 cm)
Meter Weight with Batteries	0.6 lbs (0.27 kg)
Power Requirements	Four AA-size batteries or optional AC adapter

Tech Specs

Environmental Testers / Physical Property/Anemometer / Air Flow Template
Type (anemometer)	Vane
Measurement (anemometer)	Ft/Min, m/s
Air Velocity Max	6000 ft/min
Air Velocity Min	50 ft/min
Accuracy Air Velocity	±1.0% of reading ±4 ft/min (±0.02 m/s)
Temperature	Yes
Test Equipment General Attributes
Unique Features	Reversible 4 in. (100 mm) head to read supply and exhaust flows Calculates volumetric flow rate when user inputs duct shape and size, or area Sampling function records multiple point measurements Automatic averaging of air velocity Simultaneously displays velocity and temperature Sweep mode for one overall measurement Optional 36 in. telescopic probe available Compatible with optional Aircone flow hoods
Warranty	24 MONTHS (2 YEARS)
Warranty Details	a. Hot-wire or hot-film sensors used with research anemometers, and certain other components when indicated in specifications, are warranted for 90 days from the date of shipment. b. Parts repaired or replaced as a result of repair services are warranted to be free from defects in workmanship and material, under normal use, for 90 days from the date of shipment. c. Seller does not provide any warranty on finished goods manufactured by others or on any fuses, batteries or other consumable materials. Only the original manufacturer's warranty applies. d. Unless specifically authorized in a separate writing by Seller, Seller makes no warranty with respect to, and shall have no liability in connection with, goods which are incorporated into other products or equipment, or which are modified by any person other than Seller.
Interfaces I/O	USB
Product Weight	0.6 LBS
Product Height	3.3 IN
Product Width	7.0 IN
Data Logging	Yes
HTS/Schedule B Number	9026804000
ECCN Number	EAR99
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	United States
Other Information	Depth: 1.8 inch Logging Interval: 1 second to 1 hour
