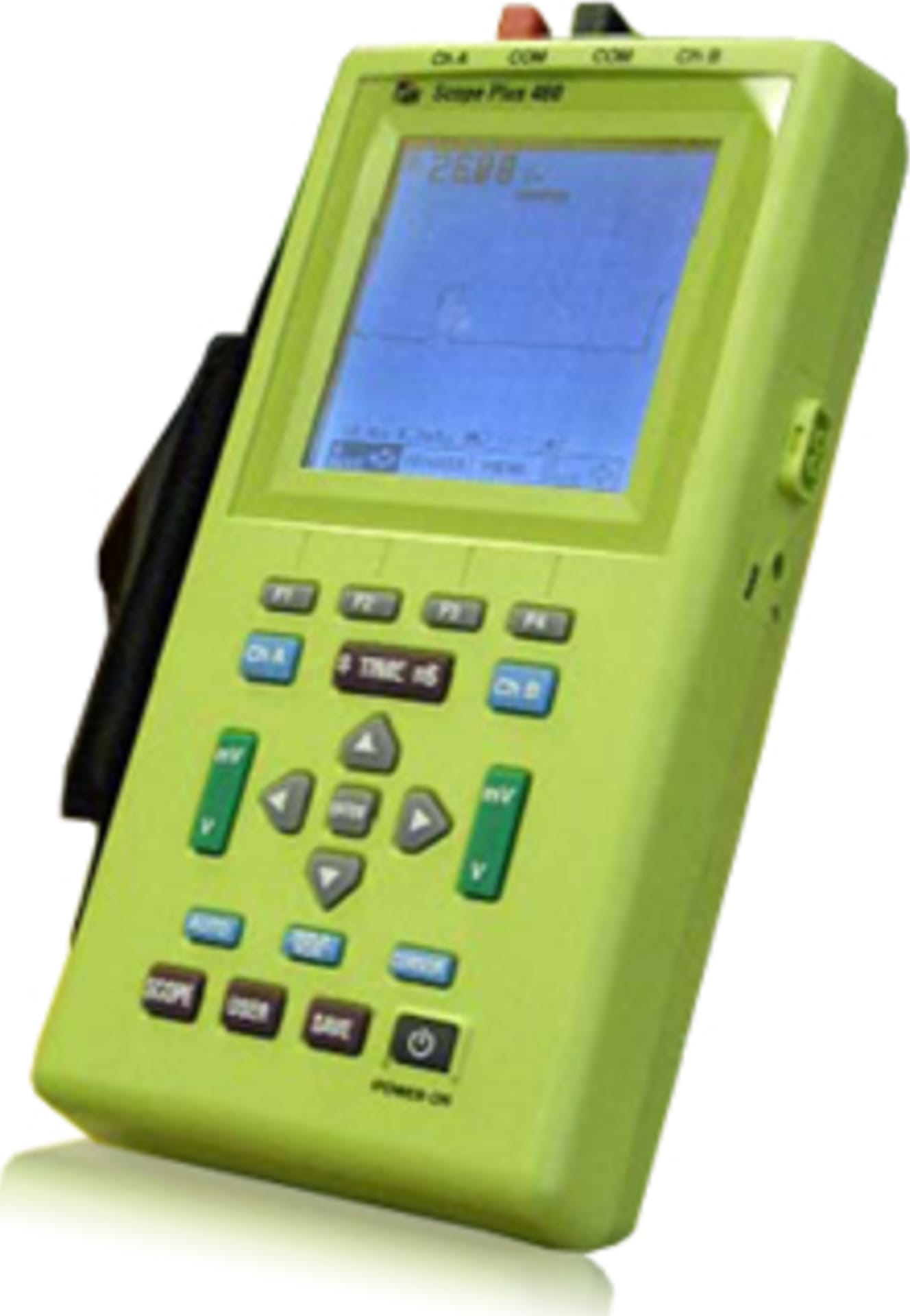

TPI 460 True RMS Digital Multimeter, Oscilloscopes (Handheld)

0 reviews | UPC: 637623004605 | Model: TPI 460

Compare

20 MHz Oscilloscope, Dual Channel, True RMS DMM,Leads, Charger

460 True RMS Digital Multimeter, Oscilloscopes (Handheld)
4,000 count true RMS DMM, CACV, DCV ohms and continuity buzzer need optional adapters for current measurement
20 MHz Bandwidth
Cursor Readout
Decibels
Pre and Post Triggering
Sample Rate: 25 Ms/s
Trend Mode
Dual Input
True RMS DMM
Bright LCD Backlight
Optically Isolated RS232 Output

View Product Details

List Price: $995.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the TPI 460

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

TPI A150 Push on alligator clips

Catalog: A150

(1)

In Stock!

Add to Cart

TPI A006 NI-Mhd battery pack for the 460

Catalog: A006

(1)

In Stock!

Add to Cart

TPI A905 Soft carrying case for 460

Catalog: A905

(1)

In Stock!

Add to Cart

TPI A251 AC Amp Current Probe Adapter

Catalog: A251

(0)

In Stock!

Add to Cart

TPI A254 AC/DC Amp Low Current Probe Adapter

Catalog: A254

(0)

In Stock!

Add to Cart

TPI A256 AC/DC Amp Current Probe Adapter

Catalog: A256

(1)

In Stock!

Add to Cart

TPI A296 AC/DC Clamp-on accessory for DMM s (0 to 1000 Amps)

Catalog: A296

(2)

In Stock!

Add to Cart

Rigol ADP0150BNC 50 Ohm impedance adapter for oscilloscopes or generators

Catalog: ADP0150BNC

(30)

In Stock!

Add to Cart

TPI A115 Thermocouple adapter for gas valves

Catalog: A115

(2)

In Stock!

Add to Cart

TPI A103 Boot Hook for 133, 153, 163, 183, 185

Catalog: A103

(0)

In Stock!

Add to Cart

TPI A112 Microamp Adapter for DMM s/Clamps w/2 or 20 V DC range

Catalog: A112

(0)

In Stock!

Add to Cart

TPI A301 Temperature Adapter w/GK11M and battery

Catalog: A301

(0)

In Stock!

Add to Cart

Cal Test CT4042 Oscilloscope Accessory Kit. Get the most out of your scope with this...

Catalog: CT4042

(24)

In Stock!

Add to Cart

Aim-TTi Iprober 520 Positional Current/Field Probe DC-5MHz 5mA-20A

Catalog: 58250-0010

(5)

In Stock!

Add to Cart

Auburn P-20A 3GHz RF Probe BNC. (adaptor for SMA not included )

Catalog: P-20A

(3)

In Stock!

Add to Cart

TPI A404 Software and RS232 cable for 460

Catalog: A404

(0)

In Stock!

Add to Cart

TPI 460 True RMS Digital Multimeter, Oscilloscopes (Handheld)

The TPI 460 is a hand-held oscilloscope plus autoranging DMM. The instruments large, backlit LCD display shows a reading and waveform simultaneously. In addition to the standard functions of ACV, DCV, ACA, DCA, Ω, Diode Test and Continuity Buzzer; the 460 measures Frequency (Hz),Capacitance, Logic and Component test functions. The 460 also has RS232 output and software for interfacing with a PC is offered as an optional accessory.

6 Instruments in 1:

Auto Ranging 4,000 Count True RMS DMM: TPI's 460 has 9 measurement functions and 0.3% basic DC accuracy.
1 MHz Oscilloscope: View industrial power signals such as motor controls, UPS, switching power supplies, and PLC controls with detail and clarity.
Trend Mode: Graph readings over a predetermined time period to check for surges or dropouts.
Component Test: Check voltage-current signatures on resistors, capacitors, and semiconductors.
Logic Test: Indicates transitions up to 2 MHz.
Frequency Counter: Measure low frequency signals from 1Hz to 2 MHz and display duty cycle, pulse width and period.
PC/Printer Compatibility to RS-232C Port Optional accessory A402 allows user to download data or waveforms to PC for archiving, processing, and report generation. Ideal for extended monitoring.

Category Ratings:

Category I: Usually electronic equipment or equipment where measures have been taken to limit transient over voltages.
Category II: Single phase loads like appliance personal computers, television sets, and other household loads. Outlets located more than 30 feet froma CAT III source or more than 60 feet from a CAT IV source.
Category III: Distribution level fixed installations like distribution panel devices, short branch and feeder circuits, three phase loads, and single phase commercial lighting.
Category IV: Equipment and lines located on the power line side of a service panel or where a low voltage connection is made to utility power

Applications

View industrial signals such as motor control, UPS, switching power supplies, and PLC controls with 1MHz bandwidth
Capture noise spikes, glitches, and intermittents with 20 megasamples per second sampling rate
Full autoranging, True RMS, DMM capabilities
Measure resistance and test for continuity
Continually updated display provides a live presentation

Model 440 Specifications
DCVolts	MaximumInput:1000V MaximumResolution:0.1mV Accuracy:+/-0.05%
ACVolts	MaximumInput:1000V MaximumResolution:1mV InputImpedence:1.11MΩ
DCAmps	MaximumInput:10A MaximumResolution:0.1μA
ACAmps	MaximumInput:10A MaximumResolution:0.1μa
Resistance (Ohms)	MaximumInput:40MΩ MaximumResolution:0.1Ω
Frequency	MaximumInput:2MHz MaximumResolution:0.01Hz
Capacitance	MaximumInput:400μF MaximumResolution:100pF
Inductance	N/A
Temperature (K-TypeThermocouple)	N/A
Continuity	Audible
TrueRMSResponding	Yes
Conductance	Yes
PulseWidth	Yes
DataHold	Yes
Min/MaxRecord	Yes
TimeStampLogging	Yes
RelativeMode	Yes
CompareMode	Yes
RS-232Output	Yes
ProcessLoopOutput	No
SleepMode/AutoOff	Yes
ProtectiveBoot	No
DisplayType	Super-twistLCD,160x240pixels
OperatingTemperature	0°to50°C(32°to122°F)
StorageTemperature	-20°to60°C(-4°to140°F)
RelativeHumidity0%to80%	(0°-35°C/32°-95°F)0%to70%:(35°-55°C/95°-131°F)
Size	52x220x100mm
Weight	1lb.6oz
PowerSupply	NicadBattery7.2V,AACellx8
BatteryLife	5hours
OverInputCategory	CATIII600V
AgencyApproval	cULus61010-1,IEC61010-1

Tech Specs

Oscilloscopes/Portable Oscilloscopes Template
Bandwidth	20 MHz
Channels	2
Sampling Rate	25 MS/S
Screen Type (Oscilloscopes)	TFT/LCD
Isolated Inputs	No
Screen Size	3 IN
Bits	8
Color Screen	Yes
Rise Time	40 ns
Test Equipment General Attributes
Unique Features	cursor readout, competetive price, UL listed
Warranty	3 YEARS
Safety Approval	CE, UL
Interfaces I/O	RS-232
Product Height	1.75 IN
Product Length	9.25 IN
Product Width	4.5 IN
Shipping Weight	2.6 LBS
Data Logging	Yes
HTS/Schedule B Number	9030.31.0000
ECCN Number	EAR99
Battery Type	NimH
Power Supply Voltage	120V 50/60 Hz
Country of Origin	Korea
UPC	637623004605
