TPI SP555SP565 - Wireless Air Velocity Vane Probe and Hotwire Air Velocity Probe

0 reviews | Model: TPI SP555SP565

Compare

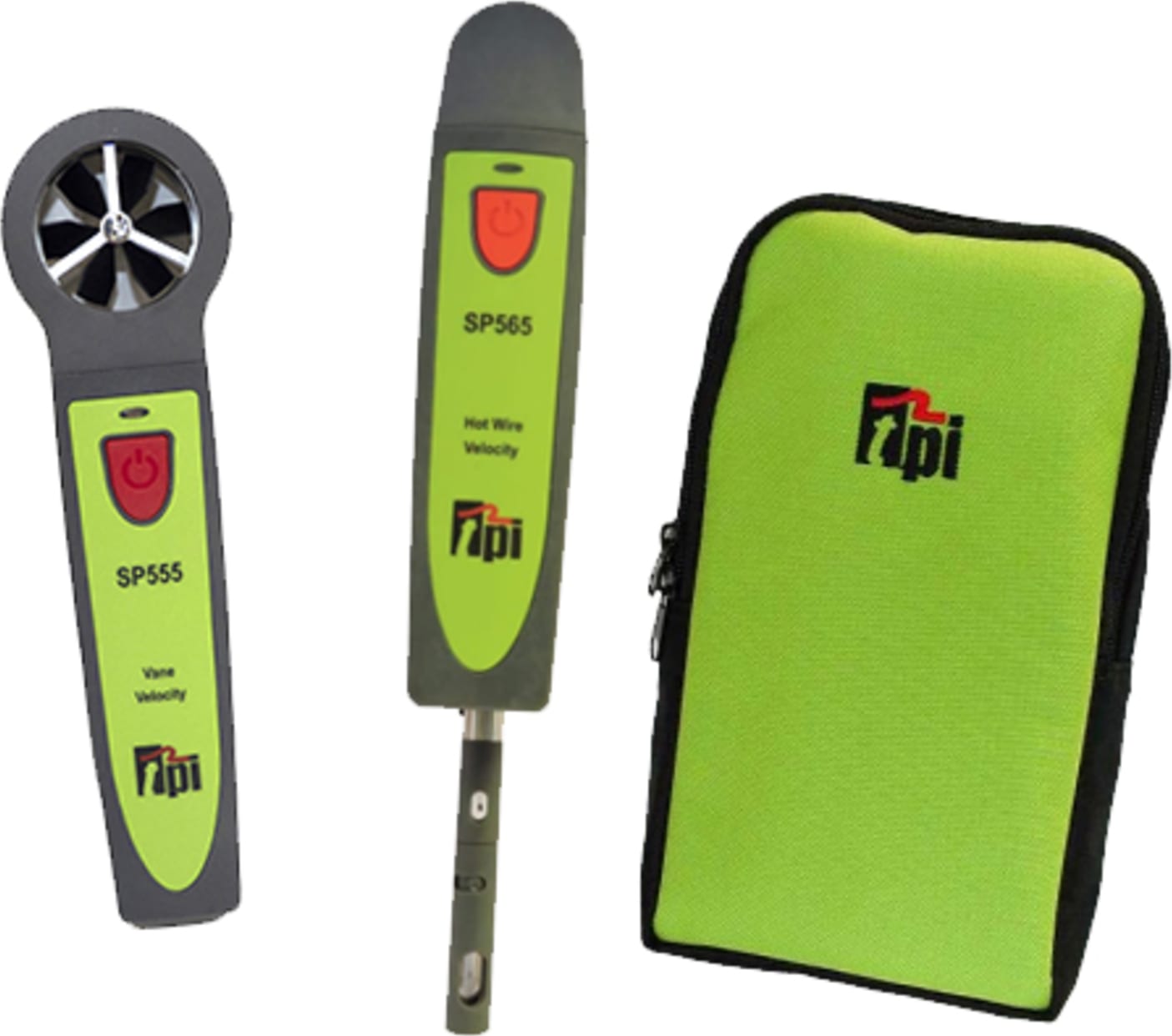

one SP555, one SP565 and A100SG (carrying case)

SP555 features

Air Velocity: 98 fpm ~ 4900 fpm (0.5 m/s ~ 25 m/s)
Temperature: -4⁰F to 140⁰F (-20⁰C to 60⁰C)
Measure air velocity and temperature simultaneously
Communicate with the smartphone using Bluetooth LE and TPI View App
Record minimum, maximum & average readings
Multiple measuring units: m/s, km/h, ft/min, knots, mile/h
Automatically calculates and displays CFM through the View app

SP565 features

Air Velocity: 40 to 3900 fpm; 0.2 to 20 m/s
Temperature: -5°F to 175°F (-20°C to 80°C)
Measure air velocity and temperature simultaneously
Communicate with Android Smart Phone using Bluetooth LE and TPI App
Record minimum, maximum & average readings
Multiple measuring units: m/s, km/h, ft/min, knots, mile/h

View Product Details

List Price: $199.95

In Stock:

View Payment Options

Recommended for you

TPI SP555SP565 - Wireless Air Velocity Vane Probe and Hotwire Air Velocity Probe

Communicate with the smartphone using Bluetooth LE and TPI View App
Measure air velocity and temperature simultaneously
Record minimum, maximum & average readings
Multiple measuring units: m/s, km/h, ft/min, knots, mile/h

The SP555 is a vane velocity Smart Probe. It measures air velocity and temperature; calculates CFM (Volume); connects to mobile device and uses the TPI View App. Perform average air velocity and air volume tests. 3 Year Limited Warranty.

TPI SP565 Hotwire air velocity probe with flip up telescopic sensor wand. Use with free TPI Android & iOS View App to display air velocity and air flow.

SP555 Wireless Air Velocity Probe Specifications
Sensor Type	Vane
Air Velocity Measurement Range	98 fpm ~ 4900 fpm (0.5 m/s ~ 25 m/s) -4°F ~ 140°F (-20°C ~ 60°C)
Resolution	2 fpm (0.1 m/s) 0.1°F / 0.1°C
Air Velocity Accuracy	± ( 2% of mv + 59 fpm) ± ( 2% of mv + 0.3 m/s)
Temperature Measurement Range	-4⁰F to 140⁰F (-20⁰C to 60⁰C)
Temperature Accuracy	±1°F( 32°F ~ 113°F ) / ą2°F ( -4 °F ~ 31.9°F, 113.1°F ~ 140°F ) ±0.5°C( 0°C ~ 45°C ) / ą1°C ( -20°C ~ -0.1°C, 45.1°C ~ 60°C ) +/-0.02 inH2O (0 to 1 inH2O) / +/-(1.5% + 20 digits) (> 1 inH2O)
Units of Measure	m/s, km/s, ft/min, miles/hr, knots/hr
Operation Temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Storage Temperature	-4°F ~ 140°F (-20 °C ~ 60 °C)
Battery Life Time	30 hours typical
Battery Type	AAA x 3 (4.5V)
Weight	3.74 oz (106 g)
CFM Calculation	Performed via TPI Smart Probe App

SP565 Smart Probe Air Velocity Meter Specifications
Air Velocity Measurement Range	-40 ft/min to 3900 ft/min (0.2 m/s to 20 m/s)
Air Velocity Accuracy	+/- (5% of rdg + 10 digits) or +/- (1% FS + 10 digits)
Resolution	1 ft/min / 0.01 m/s
Temperature Measurement Range	-4⁰F to 140⁰F (-20⁰C to 60⁰C)
Temperature Accuracy	+/- 1⁰F (0.5⁰C) (32⁰F to 113⁰F / 0⁰C to 45⁰C ) +/- 2⁰F (1⁰C) (<32⁰F (0⁰C) and >113⁰F (45⁰C)
Units of Measure	m/s, km/s, ft/min, miles/hr, knots/hr
Operating Temperature	-4⁰F to 122⁰F (-20⁰C to 50⁰C)
Communication	Bluetooth version 4.2 (Use with TPI Smart Probe App)
Battery type	AAA x 3 (4.5V)
Battery Life	60 hours typical
CFM Calculation	Performed via TPI Smart Probe App

Tech Specs

Environmental Testers / Physical Property/Anemometer / Air Flow Template
Type (anemometer)	Vane
Measurement (anemometer)	Ft/Min, km/hr, knots, m/s
Accuracy Air Velocity	± ( 2% of mv + 59 fpm) ± ( 2% of mv + 0.3 m/s)
Temperature	Yes
Test Equipment General Attributes
Product Weight	106 GRAMS (0.234 LBS)
Battery Type	AAA
