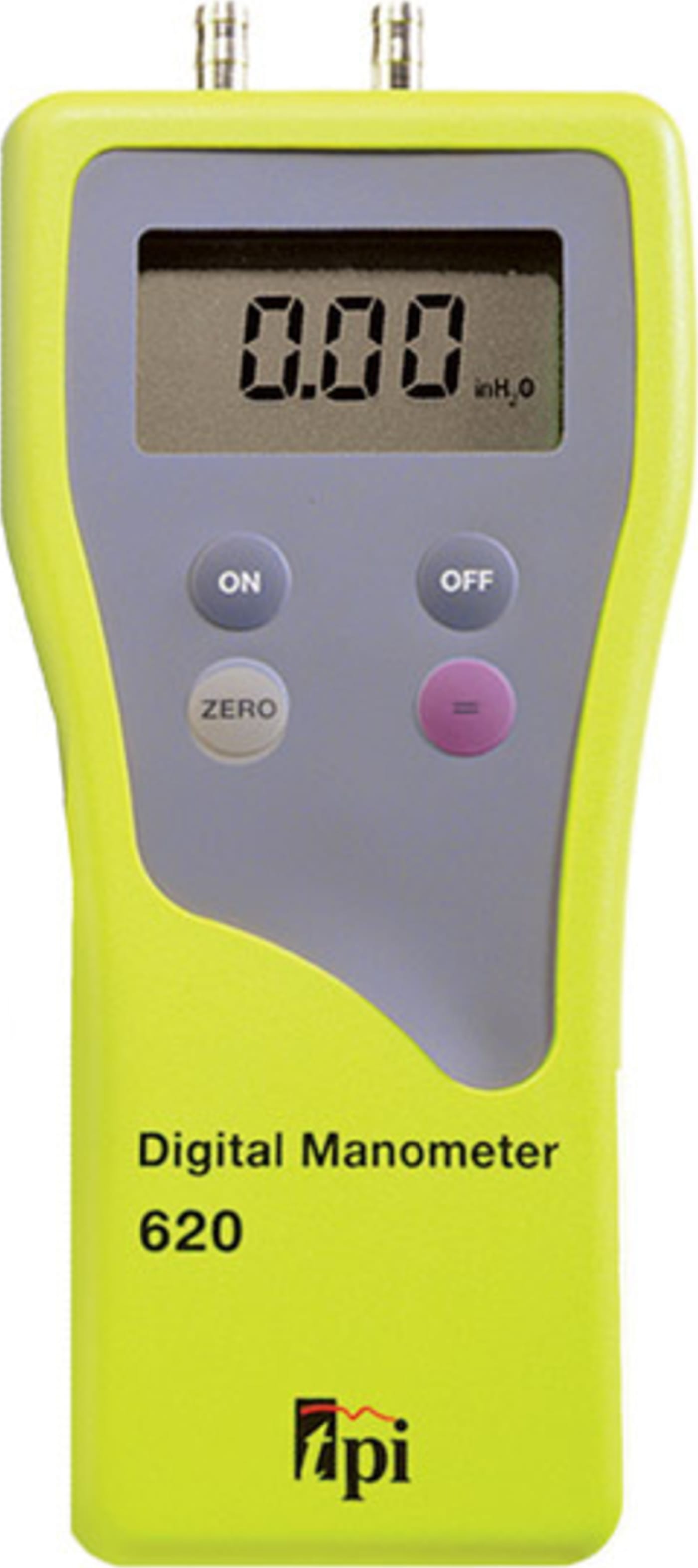

TPI 620C3 Manometer

0 reviews | Model: TPI 620C3

Compare

Dual input, inH2O with accessory kit

Dual input, differential and single unit of pressure (inH2O).
Auto-Ranging
9V Battery included
3-Year Limited Warranty

Applications:

Adjusting appliance regulators
Setting delivery pressures
Leakage “Shut-In” tests
Regulator adjustments for pressure and lock-up tests
Furnace pressure switches in both positive and negative

View Product Details

List Price: $259.95

In Stock:

View Payment Options

Recommended for you

Utility and HVAC troubleshooters look to TPI for isolating difficult pressure problems on natural gas and propane systems. Replace messy U-Tube manometers and expensive pressure gauges with a TPI 600 series manometer. Test for leaks in low-pressure gas systems. All models provide accurate readings (basic accuracy of ±0.5% reading with a .01 inch resolution).

Units of measurement for the 615 and 625 are mmHg, inHg, kPa, mbar, PSI, inH20, and mmH20. The 610 and 620 only measure in inches of water.

Complete kit, TPI 620 Manometer along with -

A605 T Fitting (x2): Ideal for use on setting pressure switches
A776 Static Tip (x2): Measure static pressure with A776. It has a magnet to secure in place in duct work 1/4” hole required to use
A774 Tubing: 6 foot length of silicone tubing for pressure measurements. Very flexible and will not go hard in cold temperatures.
A791 Adapter Tube: Flexible tubing for connecting to larger fittings
A908 Carrying Case: Soft padded case with shoulder strap holds the thermometer and probes.

Auto Range	-15 to +48 inches of water
Accuracy	±0.5% of Reading + 5 digits
Over Pressure	500 mbar
Power Supply	9 Volt
Relative Humidity	0% to 80% (0° to + 40°)
Operating Temp	0°C to +40°C
Storage Temp	-10°C to +50°C
Auto Power Off	After 40 Minutes

HVAC Equipment and Instruments/Manometer Template
Type (Manometer)	Digital
Max Pressure	1.734 psi (48.00 IN of H2O)
Type of Input	Dual, Single
Engineering Units (HVAC)	inch H2O
Measurement	Absolute, Differential, Vaccum
Min/Max/Hold	No
Altitude Capability	Yes
Test Equipment General Attributes
Unique Features	smoothing function to stabilize rapidly changing pressure readings Single/Dual Input -15 to +48 inches of water, autoranging 500 mBar overpressure Displays inH20 only
Warranty	3 YEARS
Additional Info/Comments	special kit includes, rubber boot, 30" silicone tubing, two brass NPT fittings, two t fittings, two static tips and padded carrying case
Safety Approval	CE, UL
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	Korea
