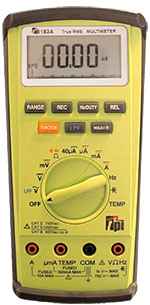

TPI 183a-OB Handheld Multimeter - Style: Hand-Held, Measures AC V: Yes, Measures DC V: Yes

0 reviews | UPC: 637623001833 | Model: TPI 183a-OB

Compare

4,000 count true rms DMM w/ temperature, capacitance, duty cycle and low pass filter - This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.

This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.

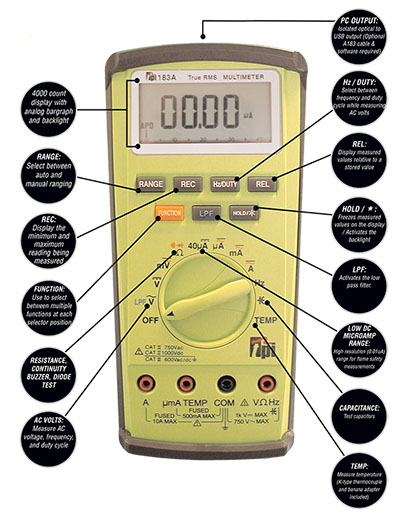

Large 4000 count Backlit Display with Analog Bargraph
True RMS for more accurate measurements
Auto/manual ranging
Duty cycle (% pulse width modulation) for measuring modulating gas valves
Low pass filter for noisy environments
Separate fuse (2) and battery compartment
Auto power off
IR serial interface that can be used to input datato PC with optional A183
High resolution (0.01) low DC microamp range for measuring flame safety control circuit
Frequency, capacitance, temperature, data hold, min/max record, relative mode
AC/DC volts, AC/DC amps, resistance, audible continuity and diode test
CAT II - 1000V
CAT III - 600V
cULus 61010-1
3 year limited warranty

View Product Details

🧐 Why buy a b-stock/open box item?

List Price: $149.95

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the TPI 183a-OB

TPI A113 RS232C cable for 183, 185

Catalog: A113

(0)

In Stock!

Add to Cart

TPI A250 AC Amp Current Probe Adapter

Catalog: A250

(1)

In Stock!

Add to Cart

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

Cal Test CT2700 HV DMM Probe, 40KV DC - 1.0m, 4mm Shth P

Catalog: CT2700

(1)

In Stock!

Add to Cart

TPI A103 Boot Hook for 133, 153, 163, 183, 185

Catalog: A103

(0)

In Stock!

Add to Cart

TPI A108 Software and RS232C cable for 183, 185

Catalog: A108

(0)

In Stock!

Add to Cart

TPI A183a USB cable and software for 183a

Catalog: A183a

(0)

In Stock!

Add to Cart

TPI 183A True RMS Digital Multi-Meter with Temperature Capacitance

True RMS for more accurate measurements
Duty cycle (% pulse width modulation) for measuring modulating gas valves
Low pass filter for noisy environments
Separate fuse and battery compartment
IR serial interface

The TPI 183A is a true RMS auto-ranging Digital Multi-Meter. The backlit LCD can display three readings at one time. In addition to basic functions of ACV, DCV, ACA, DCA, Diode Test and continuity, the 183A measures Frequency (Hz) and Capacitance. The 183A also has RS232 output and software for recording information into a PC.

The 183 is a hand-held autoranging DMM. The backlit LCD can display three readings at one time. In addition to basic functions of ACV, DCV, ACA, DCA, , Diode Test and Continuity, the 183 measures Frequency (Hz) and Capacitance. The 183 also has RS232 output and software for recording information into a PC.

The 183A also features:

REC - Records Min/Max and Average readings during specified measurement intervals. Time reference can also be displayed to determine when the values were recorded.
COMP - Compare actual reading to preset HI and LOW values for Pass/Fail testing of components.
HOLD - Two-hold system automatically holds the previous stable reading when a new one is obtained.

Applications

Test run and start capacitors
Measure ambient and duct temp
Test control (thermostat, thermocouple, flame safety) and line voltages
Measure resistance and test for continuity
Line current up to 10 amps (in series)

TPI 183a True RMS Digital Multimeter Specifications
Maximum AC and DC current	10 amp
Maximum AC voltage input	750V
Maximum DC voltage input	1000V
Maximum resistance detected	40 megaohms
Maximum frequency	200KHz
Maximum capacitance	10,000 microfarads
Other tests	Diode, audible continuity sensor, duty cycle, low-pass filter
Resistance (Ohms) Maximum Input	40MΩ Maximum Resolution: 0.1Ω
Accuracy	±0.5%
Frequency Maximum Input	200KHz Maximum Resolution: 0.01Hz Accuracy: ±0.05%
Frequency Maximum Input	200KHz Maximum Resolution: 0.01Hz Accuracy: ±0.05%
Capacitance Maximum Input	10000µF Maximum Resolution: 0.01µF Accuracy: ±2% Inductance N/A Display Type
Display Type	4,000 count backlit LCD with dual sub displays and analog bargraph
Continuity	Audible at less than 100Ω
Diode	3V at 2.5mA maximum output
True RMS Responding	Yes
RS-232 Output	Yes
Sleep Mode/Auto Off	Yes
Standards met	Underwriters Laboratory- Canadian and U.S. Standards (cULus) 61010-1; International Electrotechnical Commission (IEC) safety standard 61010:2001; Category II installations up to 1000V; Category III installations up to 600V; Pollution Degree 2 for indoor use
Operating Temperature	32 to 113°F (0 to 40°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Humidity	80% non-condensing
Battery Type	9V Alkaline (NEDA 1604)
Battery Life	100hrs Typical
Overvoltage Category	CAT III 600V
Agency Approval	cULus 61000-1, IEC 61000-1
Weight	14.4oz./380g including boot
Dimensions	7.4 x 3.4 x 1.3 inches/187 x 86 x 33mm (H x W x D)
H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	750 V
Resolution AC Volts	0.01 mV
Maximum Voltage DC	1000 V
Resolution DC Volts	0.01 mV
Maximum Current AC	10 A
Minimum Current AC	0.1 uA (0.00010 mA)
Resolution AC Current	0.1 uA (0.00010 mA)
Maximum Current DC	10 A
Minimum Current DC	0.01 uA (0.00001 mA)
Resolution DC Current	0.01 uA (0.00001 mA)
Basic Accuracy V DC	.5%
# Digit Display	4
Counts	4000 .
Backlight	Yes
Manual/Autoranging	Both
Decibels	No
Resistance	Yes
Frequency	Yes
Capacitance	Yes
Temperature	Yes
Diode Testing	Yes
CAT Rating	III
CAT Voltage	600 V
Intrinsically Safe	No
Peak Hold	Yes
Overload Protector	Yes
Kelvin 4-Wire Measurement Capability	No
Wireless Display	No
Data Hold	Yes
Low-Pass Filter	Yes
Duty Cycle %	0.1 - 99.9% (0.5Hz to 500kHz, Width > 2uS)
General Attributes
Warranty	3 YEARS
Product Weight	12 OUNCES (0.75 LBS)
Shipping Weight	1.8 LBS
UPC	637623001833
Product Height	1.3 IN
Product Length	7.4 IN
Product Width	3.4 IN
Country of Origin	Korea
Test Equipment General Attributes
Unique Features	true RMS, low pass filter (for transient noise reduction), duty cycle (pulse width modulation), temperature
Safety Approval	CE, UL
Interfaces I/O	RS-232, USB
Data Logging	Yes
HTS/Schedule B Number	9030.31.0000
ECCN Number	EAR99
Battery Type	AA
Power Supply Voltage	Battery Powered
