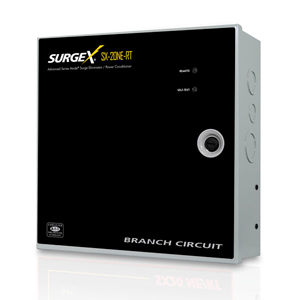

| Model: SX20NERT Specifications |
| Load Rating |
20 amps @ 120 volts |
| Power Requirement (no load) |
15 watts per circuit |
| Surge Let- Through Voltage (6000-volt surge) |
1000 surges, 6000 volts, 3000 amps, B3 pulse; Measured suppressed voltage: 170 volts; no failures. |
| UL 1449 Adjunct Classification Test Results |
Grade A, Class 1, Mode 1 (CID A-A-55818) |
| Federal Guidelines |
Unlimited, due to current limiting (8 x 20 μs) |
| EMI/RFI Filter, Normal Mode (50-ohm load) |
40 dB @ 100 kHz; 50 dB @ 300 kHz; 50 dB @ 3 MHz; 50 dB @ 30 MHz |
| EMI/RFI Filter, Common Mode (50-ohm load) |
18 dB @ 300 kHz; 30 dB @ 1 MHz; 50 dB @ 5 MHz; 50 dB @ 20 MHz |
| Maximum Applied Surge Voltage |
6000 volts* |
| Maximum Applied Surge Current |
Unlimited, due to current limiting* |
| Maximum Applied Surge Energy |
Unlimited, due to current limiting* |
| Endurance (C62.41-1991 Category B3 pulses) |
1 kV>500,000; 3 kV>10,000; 6 kV>1000 |
| Maximum Load Inrush Current During Power-up |
1000 Joules |
| Remote Turn-on Applied Voltage Range |
Contact Closure: 3 mA
5 V DC Applied Voltage: 1 mA
12 V DC Applied Voltage: 2.5 mA
24 V DC Applied Voltage: 5 mA |
| Auxiliary Relay Contact Rating |
30 Volts at 1 Amp |
| LED Output |
12 volts DC, maximum 20 mA (resistor required) |
| Dimensions |
12.0" H x 12.0" W x 4.0" D (30.5 x 30.5 x 10.2 cm) |
| Weight |
12 lbs (5.45 kg) |
| Temperature Range |
5º to 35º C |
| Humidity Range |
5% to 95% R.H., non-condensing |
| Agency Listings |
ETL and cETL (UL 1449, 2nd edition; CSA C22.2 No.8-M1986, R2000) |
