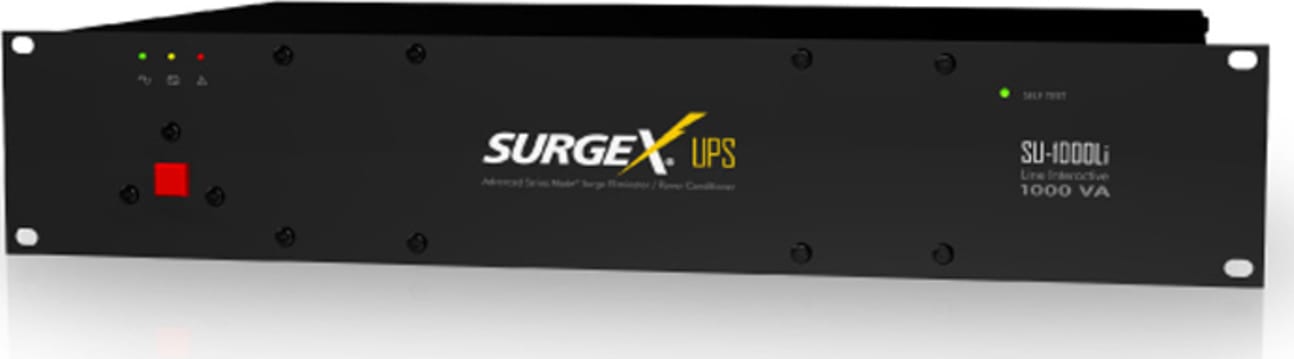

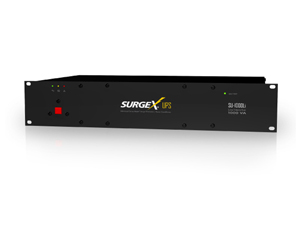

Model: SU1000Li Specifications |
AC Input |
Number of Phases |
Single (2W + G) |
Power Cord |
6-ft. grounded, 3 wire, #14 line cord |
Input Voltage (Acceptable Input Voltage) |
120VAC (0 - 160VAC) |
Input Voltage Range (Normal mode) |
90 - 150VAC |
DC Start Capability |
Yes, (defaults to 60Hz) |
Power Requirements (no load) |
35 watts (charging), 15 watts (charged) |
AC Output (Normal Mode) |
Load Rating |
15 Amps @ 120 volts |
Load Power Factor |
0.6 |
Outlets |
6 outlets (15 Amp) all with Advanced Series Mode surge elimination, 2 outlets with battery back-up |
Output Frequency |
Same as Input |
Short Circuit Protection |
Re-settable circuit breaker and electronically limited |
Overload Capability |
110% - 5 minutes ≥120% - immediate shutdown |
Output Voltage Regulation |
120VAC: -12.5% to +8.4% |
Waveform |
Same as Input |
Boost Mode Voltage (Buck mode voltage) |
Nominal +16% (Nominal -14%) |
Line Mode Voltage Range |
105 - 130VAC |
Efficiency |
Normal mode > 90% |
AC Output (Battery Mode) |
Capacity |
1000VA/600W |
Back-up Run Time |
4 minutes 600W full load, 10.4 minutes 300W half load |
Output voltage |
Nominal 120VAC |
Waveform |
Stepped sine wave (simulated sine wave) |
Topology |
Single boost/buck line interactive, simulated sine wave |
Battery Mode Voltage Regulation |
Nominal ± 6% until LBW |
Transfer Time |
6-10 ms |
Output Frequency & Regulation |
50/60Hz ± 0.5Hz (Unless synchronized to utility) |
Short Circuit Protection |
Active electronic (current limit) |
Batteries |
Battery Rating |
(2) 12V/7AH |
Replacement |
Hot swappable |
Recharge Time |
8 hours to 90% after full load discharge |
Surge Protection Specifications |
Advanced Series Mode® surge elimination |
Surge Protection |
6,000 volts/3,000 amps |
Surge Energy Rating |
0 volts |
Let through Voltage (6,000 volt surge) |
1000 surges, 6000 volts, 3000 amps, B3 pulse; Measured suppressed voltage: 170 volts; no failures. |
UL 1449 Adjunct Classification Test Results |
Grade A, Class 1, Mode 1 (CID A-A-55818) |
Federal Guidelines |
EMI/RFI Filter, Normal Mode (50-ohm load) |
40 dB @ 100 kHz; 50 dB @ 300 kHz; 50 dB @ 3 MHz; 50 dB @ 30 MHz |
EMI/RFI Filter, Common Mode (50-ohm load) |
18 dB @ 300 kHz; 30 dB @ 1 MHz; 50 dB @ 5 MHz; 50 dB @ 20 MHz |
Maximum Applied Surge Voltage |
6000 volts* |
Maximum Applied Surge Current |
Unlimited, due to current limiting* |
Maximum Applied Surge Energy |
Unlimited, due to current limiting* |
Endurance (C62.41-1991 Category B3 pulses) |
1kV>500,000; 3 kV>10,000; 6 kV>1000 |
General Specifications |
Warranty |
(USA and Canada only) 3 year limited warranty |
Battery Warranty |
3 years |
Monitoring Software |
Includes SentryPlus software |
Communications |
USB |
Rack Size |
2U |
Unit Dimensions (H x W x D) |
3.5" x 19.0" x 10.5" |
Unit Weight (lbs.) |
32.0 lbs. |
Operating Temperature |
32°F to 104°F (up to 5,000 ft above sea level (0°C to +40°C (up to 1,500 meters above sea level) |
Operating Elevation |
32°F to 95°F (5,001-10,000 ft above sea level (0°C to +35°C (1,501 to 3,000 meters above sea level) |
Storage Temperature/Relative Humidity |
5°F to 113°F (-15°C to +45°C) / 0 - 95% non-condensing |
Humidity Range |
5% to 95% R.H., non-condensing |
