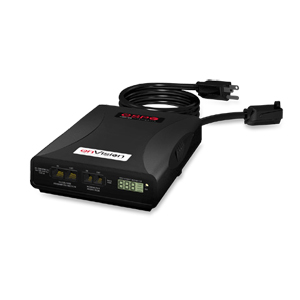

Model: EV12015IC Specifications |
Load Rating |
15 Amps at 120 Volts |
Voltage Protection Rating (VPR) |
330V All Modes |
Attenuation |
Normal Mode:> 30 dB 80kHz – 50MHz
Common Mode: > 30 dB 70kHz – 50MHz |
Power Requirement (no load) |
4 Watts |
Under-Voltage Shutdown |
Adjustable from 0 V to 110 V. Default 80 V. |
Under-Voltage Record |
Adjustable from 0 V to 110 V. Default 100 V. |
Under-Voltage Restore |
Adjustable from 80 V to 110 V. Default 105V. |
Over-Voltage Shutdown |
Adjustable from 130 V to 160 V. Default 150 V. |
Over-Voltage Record |
Adjustable from 130 V to 160 V. Default 145 V. |
Over-Voltage Restore |
Adjustable from 130 V to 160 V. Default 140 V. |
Internal Memory Capacity |
512 Power Quality Events with Timestamp
138 Day Electrical Parameter History at 30 minute intervals |
Timestamp Accuracy |
± 1% Typical Product Accuracy |
Measurement Accuracy |
± 2% Typical product accuracy |
Response Time |
Over-Voltage: 90 ms
Under-Voltage: 200 ms |
Power Outage Event Definition |
AC Voltage has dropped below 20V |
Surge Event Definition |
Filter has been exposed to a transient voltage in one of the 3 possible modes (between Live and Neutral, between Live and Ground, between Neutral and Ground) with a peak amplitude of 500V* or higher and a frequency of 20 kHz or higher. *500V surge voltage amplitude applies to IEEE C62.41
Category B Impulse; surge voltage amplitudes necessary for detection of other surge types may vary. |
Modem/Fax Protection |
Single telephone line surge suppression |
Ethernet Protection |
CAT6 network surge protection |
Dimensions |
6.125" W x 8.375" D x 2" H |
Weight |
2.25 lbs |
Temperature Range |
5C to 40C |
Humidity Range |
5% to 95% R.H. Non-condensing |
Agency Listings |
ETL Certified to UL 1449 3rd Edition |
Warranty |
Limited lifetime product warranty and limited lifetime connected protection warranty. |
