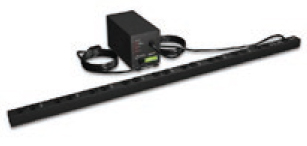

| Model: CM1115RT18 Specifications |
| Operational Voltage Range |
90 to 150 Volts AC |
| Current rating |
15 Amps |
| Power Rating |
1,800/2,400 Watts |
| Maximum Load Inrush Energy |
1000 Joules total during power-up |
| Under-Voltage Shutdown |
90 V (resume at 100V) |
| Over-Voltage Shutdown |
145V (resume at 135V) |
| Surge Let-through Voltage |
Zero let-through Voltage for a 6000 Volt surge |
| Meets Federal Guidelines |
Grade A, Class 1, Mode 1 (CID A-A-55818) |
| EMI/RFI Filter, Normal Mode |
40 dB @ 100 KHz, 50dB @ 300 KHz, 50 dB @ 3 MHz,
50 dB @ 30 MHz (50 Ohm load) |
| EMI/RFI Filter, Common Mode |
18dB @ 300 KHz, 30 dB @ 1 MHz, 50 dB @ 5 MHz,
50 dB @ 20 MHz (50 Ohm load) |
| Maximum Applied Surge Voltage |
Unlimited, due to current limiting* |
| Maximum Applied Surge Current |
Unlimited, due to current limiting* |
| Maximum Applied Surge Energy |
1 kV>500,000; 3 kV>10,000;
6 kV>1000 |
| Endurance |
(C62.41-1991 category B3 pulses), 1 KV > 500,000; 3 KV > 10,000; 6 KV > 1000 |
| Number of Outlets |
18 |
| Remote Control Voltage |
5 to 30 Volts DC |
| Remote Control Current Draw |
4 mA maximum |
| Contact Closure Max. Resistance |
100 Ohms |
| Auxiliary Relay Contact Rating |
30 Volts DC at 1 Amp |
| 12 Volt Output Max. Current |
20 mA |
| Dimensions (no rack ears or feet) |
4.95" W x 9.50" D x 5.66" H |
| Weight |
8.5 lbs |
| Attached Power Strip |
Dimensions: 1.625" W x 48" L x 1.5"
Weight: 5.8 lbs |
| Temperature Range |
5º to 35º C |
| Humidity Range |
5% to 95% R.H., non-condensing |
| Agency Listings |
ETL and cETL (UL 1449, Third Edition, Type 3 Surge Protective Device; UL 1283; CSA C22.2 No.8-M1986, R2004). |
| Warranty |
Limited Lifetime Product Warranty and Limited Five (5) Year Connected Protection Warranty. |
