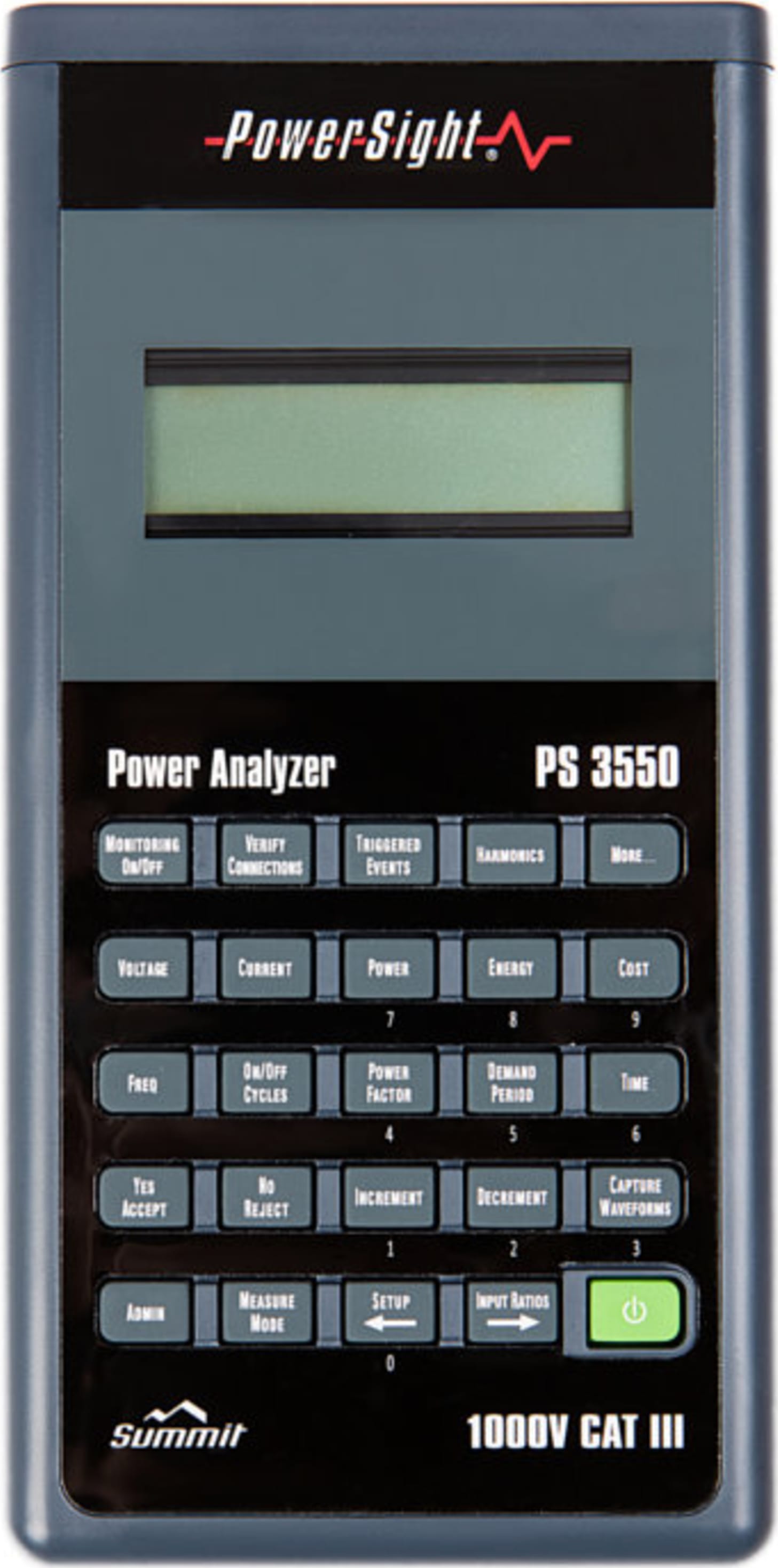

Summit Technology / PowerSight PS3550 - Power and Energy Analyzer

Name: Summit Technology / PowerSight PS3550 - Power and Energy Analyzer
Brand: Summit Technology
SKU: Summit TechnologyPS3550
Price: 2370.25 USD
Availability: InStock

0 reviews | Model: Summit Technology PS3550

Compare

The PowerSight PS3550 Power Analyzer comes equipped with Deluxe Voltage leads, PowerSight Manager Software, AC-to-DC charging unit, and operating manual. Communications are via Bluetooth technology. Just add current probes and the carrying case of your choice to have a complete system.

Long term logging for up to months at a time
Manual waveform capture ability. Real time meter display of present values
Bluetooth wireless and CAT IV 600V safety rating for highest safety
SD card for speed and data redundancy
The best all-around workhorse for power consumption monitoring and harmonic analysis
The most popular rental for professional testing organizations. Rent 100 for your largest job
RMS Volts
RMS Amps
Watts
Energy (kWh)
VA, VAR , Power Factor, Hz
Live / scope waveform views via tablet
Real time meters via tablet
Phasors via tablet
Harmonic Spectrum
THD

View Product Details

List Price: $2,495.00

Your Price: $2,370.25

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Summit Technology PS3550 The PowerSight PS3550 Power Analyzer comes equipped with Deluxe V ...	Summit Technology PK3564 System includes: PS3550 with four (4) eFX6000 Current Probes, DXV ...
Price
In Stock
Input(power loggers)	Single Phase, Three Phase	Single Phase, Three Phase
Maximum Current AC	6000 A	6000 A
Maximum Current DC	600 A	600 A
Compare	Add to compare	Add to compare

Recommended for you

Summit Technology PS3550 Accessories

Choose a Category

for the Summit Technology PS3550

Summit Technology eFX6000 Flexible 6000 amp Probe. 1 to 6000 amps AC. 3%+/-2LSD s....

Catalog: eFX6000

(0)

In Stock!

Add to Cart

Summit Technology eFX6000-36 Flexible 6000 amp Probe. 1 to 6000 amps AC. 3% /-2LSD s....

Catalog: eFX6000-36

(0)

In Stock!

Add to Cart

Summit Technology 5KVPSet Set of Three 5KV voltage probe for direct connection to 600...

Catalog: 5KVPSet

(0)

In Stock!

Add to Cart

Summit Technology VxLead25Blk 25ft Voltage Lead for Use with DXV or FXV, Black

Catalog: VxLead25Blk

(0)

In Stock!

Add to Cart

Summit Technology VxLead25Red 25ft Voltage Lead for Use with DXV or FXV, Red

Catalog: VxLead25Red

(0)

In Stock!

Add to Cart

Summit Technology / PowerSight PS3550 - Power and Energy Analyzer

Long term logging for up to months at a time
Manual waveform capture ability. Real time meter display of present values
Bluetooth wireless and CAT IV 600V safety rating for highest safety
SD card for speed and data redundancy

Get complete power usage and energy cost analysis in a compact, rugged package. The PowerSight PS3550 measures voltage, current, KW, KVA, KVAR, true power factor, displacement power factor, KWh, Hz, elapsed and estimated cost, duty cycle.

The best choice if you are looking for a versatile, easy-to-use power monitor suitable for energy and demand power studies.

General Specs
Category	Notes
Size	3.88" (9.86 cm) W x 7.72" (19.61 cm) L x 1.58" (4.01 cm) Deep at bottom end; 2.14" (5.44 cm) Deep at top end
Weight	1.1 lbs (0.5 kg)
Operating Range	32 - 122 degrees F (0 - 50 degrees C) Relative humidity to 70% (non-condensing)
Power Requirement	12V DC @ 500 mA
Battery Life	8-10 hours after 4 hour charge
Battery Type	Li-ion
Measurement Rate	8 microseconds for Voltage and Current
Safety	600V CAT IV, 1000V CAT III
SD Card Slot	Accepts SD Cards to 32GB
Logging Period (Resolution)	1 Second - 99 Minutes
Logging Duration (Length of session)	up to 2 years according to memory allocation
Internal Data Retention	8 years
Other Features	Crest Factor, K Factor, Peak Demand Period, Peak Demand of Peak, Demand Period. Duty Cycle, On/Off Cycle %, Avg. On Time, Avg Off Time
Voltage Measurement
Display Range	1-6000 KV (using input ratios)
Meter Resolution	0.1V (to 400 V), 1V (to 4 KV)
Accuracy	0.5% of reading ±0.3 Vrms
Current Measurement
Display Range	1 mA - 6 Megamps (using input ratios)
Meter Display Resolution	0.1A
Accuracy	±0.5 % of reading plus accuracy of probes
Phasor Diagram	via PC
Imbalance	via PC
Frequency Measurement
Range	DC: 45-66 Hz, 360-440 Hz fundamental
Meter Display Resolution	0.1 Hz (to 66.0 Hz)
Accuracy	±0.5%

Power Measurement/Power Loggers Template
Input(power loggers)	Single Phase, Three Phase
Maximum Current AC	6000 A
Maximum Current DC	600 A
Maximum Voltage AC	1000 V
Maximum Voltage DC	1000 V
True RMS	No
Current Input Channels	4
Voltage Input Channels	4
Measurement Frequency	400 Hz, 50 Hz, 60 Hz
Display (Energy Management)	Digital
Transient Capture	No
Displays Waveform	No
Energy	Yes
Phasor Diagrams	Yes
Power Factor (Power Quality)	Yes
Harmonics	Yes
Current Clamps Included	No
CAT Rating	IV
CAT Voltage Rating (V)	1000V, 600V
Test Equipment General Attributes
Unique Features	400Hz Monitoring, Direct Connect to Medium Voltage, Energy & Cost Analysis, Test Plan Integration, SureStart Error Prevention System, Small Form Factor
Warranty	1 YEARS
Warranty Details	Parts, labor, and calibrations for analyzer and accessories
Interfaces I/O	Bluetooth, USB
Storage	SD Card Storage 4MB + SD Card
IP Rating	IP40
Product Weight	1.1 LBS
Product Height	7.72 IN
Product Length	1.58 IN
Product Width	3.88 IN
Shipping Weight	4 LBS
Data Logging	Yes
HTS/Schedule B Number	9030.32.0000
Calibration Included	None
Power Supply Voltage	120V/220V Universal
Country of Origin	United States
Shipping Height	6.00 IN
Shipping Length	14.00 IN
Shipping Width	10.00 IN
