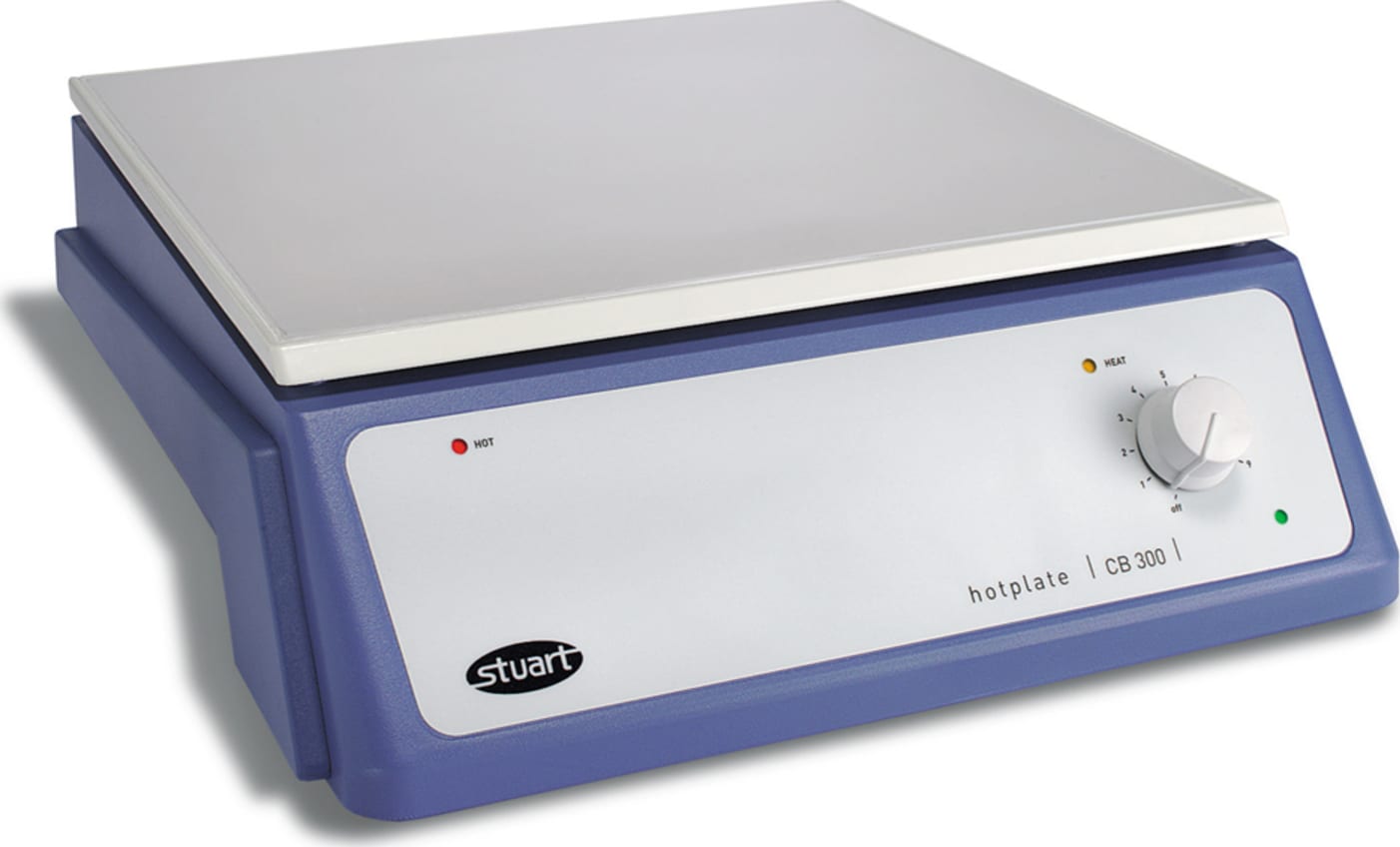

Stuart CB300 - Hotplate, Ceramic Top, Analog, 30x30cm, 230V

Hotplate temperature controlled by easy to use dial. Fitted with a "Hot" warning light which will flash whenever the plate temperature is above 50°C and will operate even when the hotplate is turned off and connected to the mains.

Model CB300 has a glass ceramic top which has excellent chemical resistance and allows much higher plate temperature.

Model SB300 has a robust aluminium/silicon alloy top plate which gives even plate temperature and will withstand the knocks of everyday use.

Heating

Models SB300, SB302, SB500, CB300, CB302, CB500:

The knob labelled “Heat” on the front panel controls the heat output and hence the plate temperature.

The knob is graduated from 1 - 9. Increasing the value increases the heat output.

Turn the hotplate control knob clockwise to the desired setting. The amber load indicator light will illuminate and it will begin to cycle on and off when the desired temperature is reached and the hotplate begins to control.

Stirring

Models SB301, SB302, CB302 and CR302:

The knob labelled “Stir” on the front panel controls the stirrer speed.

It is labelled with an arbitrary numeric scale, 1 - 9 and turning the knob to a higher setting increases stirrer speed.

When the stirrer is switched on the amber pilot light illuminates.
