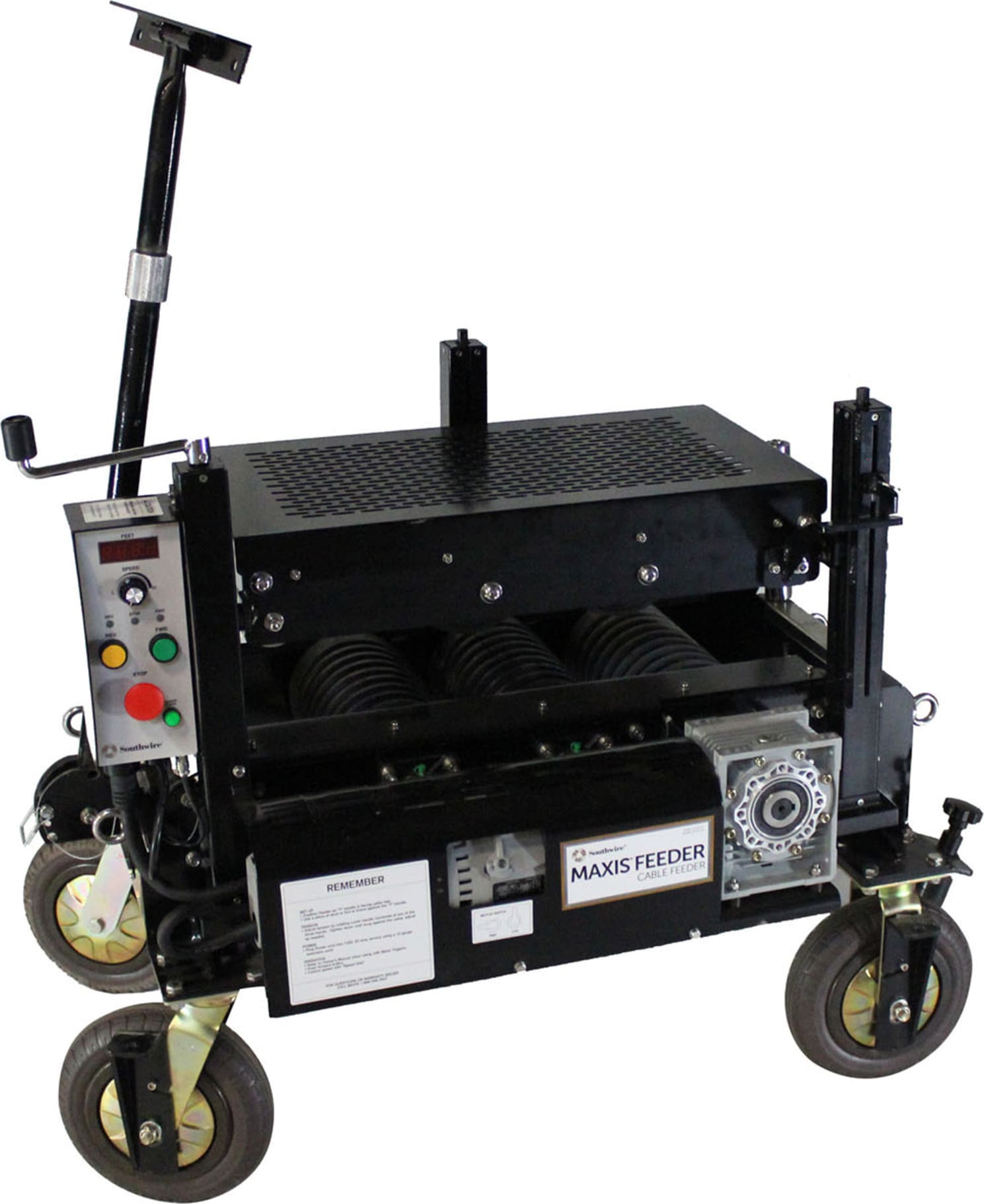

Southwire MCF-01 Maxis® Cable Feeder

Name: Southwire MCF-01 Maxis® Cable Feeder
Brand: Southwire
SKU: SouthwireMCF-01
Price: 10845.05 USD
Availability: InStock

0 reviews | UPC: 032886895418 | Model: Southwire MCF-01

Compare

FEEDER, CABLE MAXIS #MCF-01

Cannot Ship Air

Designed and built specifically to accommodate Southwire® SIMpull® wire
Forward and reverse, variable speed, feeds up to 30 fpm.
May be used with Southwire® Triggers™ Wireless Safety switch System remote foot switches for simultaneous feeder/puller control
Solid rubber tires and swivel casters for easy jobsite maneuverability and will never go flat
Digital footage meter allows easy monitoring of approx. conductor length being fed
Uses grooved serpentine roller design with increased surface area for increased traction force (no pneumatic tires)
Maximum traction force: single conductor 800 lbs, 4 Conductors 1,600 lb capacity on SIMpull THHN 500 MCM
Cable capacity: 8 x 250 MCM, 6 x 500 MCM, 5 x 750 MCM

View Product Details

List Price: $11,279.40

Your Price: $10,845.05

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Southwire MCF-01 FEEDER, CABLE MAXIS #MCF-01	Southwire SFB-01 SFB-01, SOUTHWIRE LARGE FEEDER BLANKET
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

Southwire MCF-01 Maxis Feeder

Cable Feeder

Designed and built specifically to accommodate Southwire® SIMpull® wire
Forward and reverse, variable speed, feeds up to 30 fpm.
Maximum traction force: single conductor 800 lbs, 4 Conductors 1,600 lb capacity on SIMpull THHN 500 MCM

The Southwire MCF-01 Maxis® Cable Feeder provides a revolutionary new way to feed wire quickly and efficiently, utilizing grooved roller technology designed for standard and no-lube cable. It is designed and built specifically to accommodate Southwire® SIMpull® wire.

The MCF-01 pushes wire at up to 1,600 lbs. of force and speeds up to 30 fpm. It has a completely adjustable tension lid that can be controlled without stopping the pull and a variable speed motor that can operate in both forward and reverse. It feeds cable from sizes 3/0 up to 3.5” in diameter. The MCF-01 is can be used alone or in tandem with Maxis® Cable Pullers via Southwire Triggers®.

Additional Features:

Quick 1 person set-up and operate
Solid rubber tires and swivel casters for easy jobsite maneuverability and will never go flat
Uses grooved serpentine roller design with increased surface area for increased traction force (no pneumatic tires)
Cable capacity: 8 x 250 MCM, 6 x 500 MCM, 5 x 750 MCM

Model: MCF-01 Specifications
Description	Maxis® Cable Feeder
Stock #	58133301
Height	35"
Width	26"
Length	44"
Weight	366 lbs
Min. Cable Size	3/0
Max Cable Size	3-1/2 Inches
Max Feet Per Minute	30 fpm
Tension Force	1600 pound with multiple conductors: 400 pounds on a single conductor
Patent	CA2735611A1, US8408520, US20130248785

Tech Specs

Test Equipment General Attributes
Warranty	5 YEARS
Warranty Details	Five-Year Limited Warranty on Contractor Equipment; One-Year Limited Warranty on Electrical Components and Consumable Parts
Product Weight	366 LBS
Product Height	35 IN
Product Length	44 IN
Product Width	26 IN
Shipping Height	35.00 IN
UPC	32886895418
Shipping Length	44.00 IN
Shipping Width	26.00 IN
