Sonel WAADAERP1 - Adapter For Ground Resistance

Name: Sonel WAADAERP1 - Adapter For Ground Resistance
Brand: Sonel
SKU: SonelWAADAERP1
Price: 781.00 USD
Availability: InStock

0 reviews | Catalog: WAADAERP1 | Model: Sonel WAADAERP1

Compare

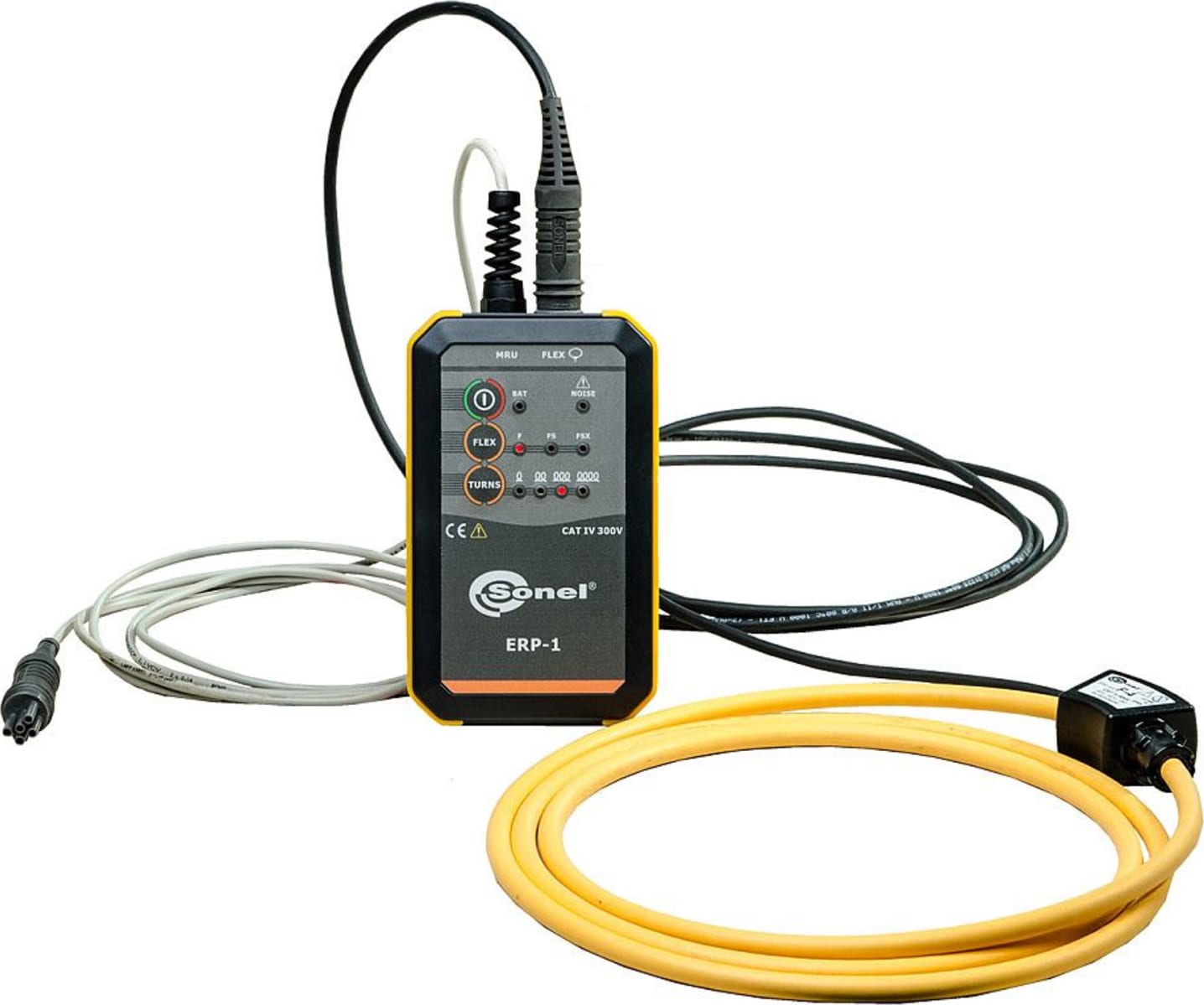

Adapter for ground resistance measurement of transmission towers

Adapter for ground resistance measurement of transmission towers
Designed to operate with the sonel's earth resistance meters (MRU series)
3-wire with clamp measurement function
Ergonomic , handy and user friendly design casing makes the measurements
Pylons earth resistance quick and easy

View Product Details

Your Price: $781.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Sonel WAADAERP1 Adapter for ground resistance measurement of transmission towers	Sonel WAADAERP1V2 Adapter for ground resistance measurement of transmission towers with cu ...	Sonel WAADAERP1V3 Adapter for ground resistance measurement of transmission towers with cu ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Sonel WAADAERP1

Adapter for ground resistance measurement of transmission towers
Designed to operate with the sonel's earth resistance meters (MRU series)
3-wire with clamp measurement function

Adapter For Ground Resistance

It is designed to operate with Sonel's earth resistance meters (MRU series), in 3-wire with clamp measurement function. The ergonomic, handy and user-friendly design casing makes the measurements of pylons earth resistance quick and easy.

The adapter works with the following meters:

Sonel MRU-120
Sonel MRU-200
Sonel MRU-200-GPS

General Specifications
Pylon earth resistance measurement adapter specification:
Measurement range	up to 5 A
Operating frequency	up to 125Hz (for work in 50Hz network) , 150Hz (for work in 60Hz network )
Power supply	3 x battery LR6 1,2 – 1,5 V
Measurement category	CAT IV 300 V in accordance with IEC 61010-1.
Other data
Storage temperature	20...+80°C,
Storage humidity	20...85%
Operating temperature	10...+50°C
Operating humidity	20...85%
Dimensions	88 x 33 x 146 mm
Weight with batteries / without batteries	340 g / 270 g
Protection class	IP67

Test Equipment General Attributes
Unique Features	Measurement of grounding of transmission towers. Works with MRU-200 GPS ground tester.
Warranty	3 YEARS
Additional Info/Comments	Adapter only.
Safety Approval	CE, RoHS
IP Rating	IP67
Product Weight	340 GRAMS (0.750 LBS)
Product Height	146 MM (5.75 IN)
Product Length	88 MM (3.46 IN)
Product Width	33 MM (1.30 IN)
Shipping Weight	1.6 KILOS (3.53 LBS)
ECCN Number	EAR99
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Poland
