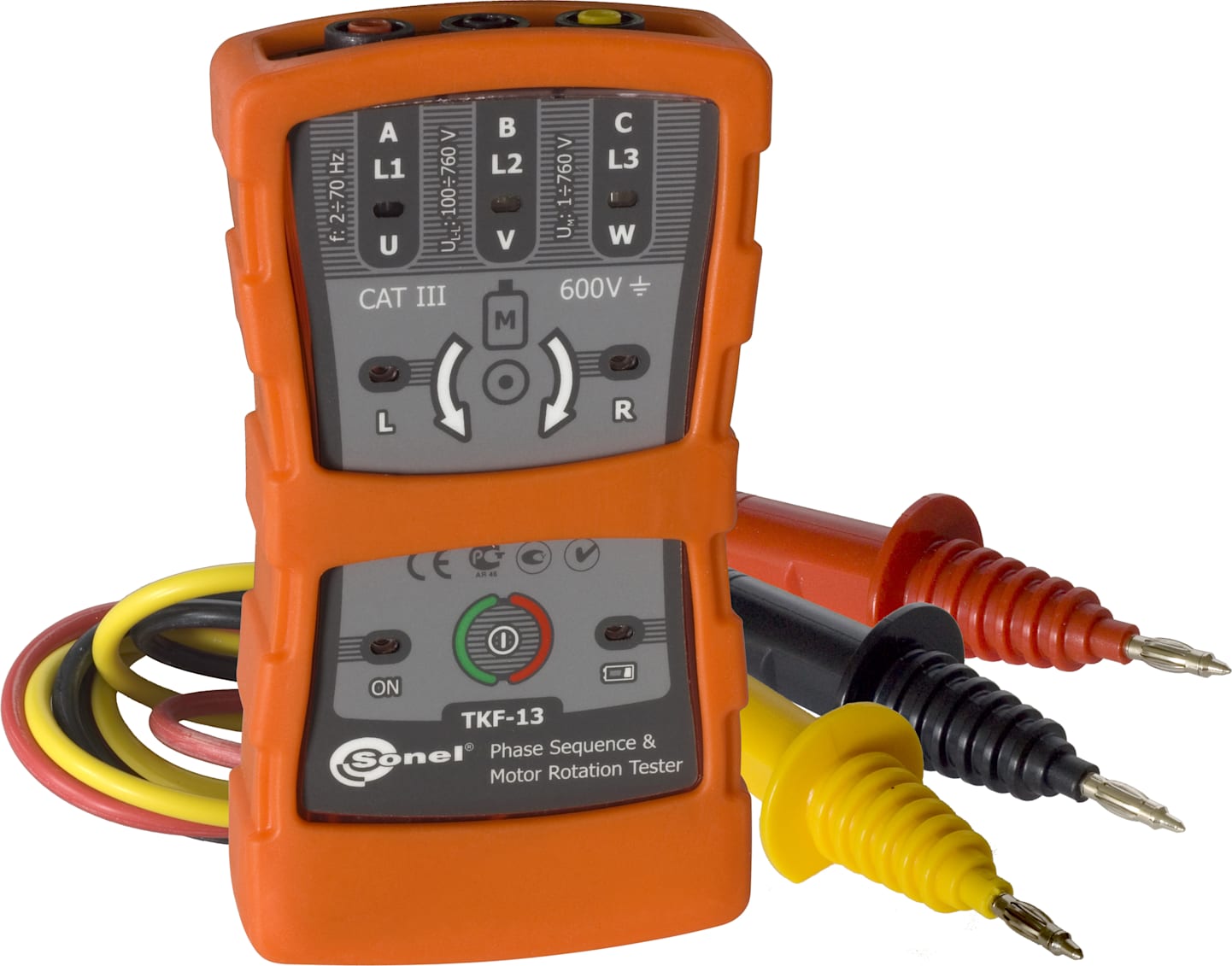

Sonel TKF-13 - Phase Sequence and Motor Rotation Tester

Name: Sonel TKF-13 - Phase Sequence and Motor Rotation Tester
Brand: Sonel
SKU: SonelTKF-13
Price: 203.98 USD
Availability: InStock

0 reviews | Catalog: WMGBTKF13 | UPC: 5907624018150 | Model: Sonel TKF-13

Compare

Phase sequence tester and motor rotation tester

Phase sequence indication (direction of field rotation) in the power network with rated phase-to-phase voltage (120...690V AC) by LED signalization
Operation in the power network with frequency 2...70Hz
Indication of the voltage presence in the particular phases by means of neon lamps
Indication of direction of motor rotations:
- under state without voltage with using the test leads
- remote, during motor operation
Detection of magnetic field presence
AUTO-OFF function

View Product Details

Your Price: $203.98

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Sonel TKF-13

Phase sequence indication (direction of field rotation) in the power network with rated phase-to-phase voltage (120...690V AC) by LED signalization
Operation in the power network with frequency 2...70Hz
Indication of the voltage presence in the particular phases by means of neon lamps

Phase Sequence and Motor Rotation Tester

The TKF-13 tester is a modern, high-quality, simple and safe device. However, it is recommended to get acquainted with the present manual in order to avoid measuring errors and prevent possible problems related to the operation of the meter.

The unique TKF-12 & TKF-13 testers have been designed for checking triple phase power installations in the wide range of the phase-phase voltage between 100V to 690V in the distribution network frequency range 10-70Hz. Our testers enable rotary field and motor rotation indication also with contact-less detection. TKF-13 provides a quick indication of 3-phase rotation using test leads or can be used to determine motor rotation on 3-phase motors. TKF-12 is powered from a tested network. TKF-13 is powered by a 9V battery with an AUTO-OFF function.

test lead with banana plug; 1,2m; black WAPRZ1X2BLBB
test lead with banana plug; 1,2m; red WAPRZ1X2REBB
test lead with banana plug; 1,2m; yellow WAPRZ1X2YEBB
pin probe with banana connector - black WASONBLOGB1
pin probe with banana connector - red WASONREOGB1
pin probe with banana connector - yellow WASONYEOGB1
crocodile clip K01; black WAKROBL20K01
alkaline battery 6LR61 (9V)

Electric security
type of insulation	double, according to EN 61010-1
measurement category	CAT III 600V acc. to EN 61010-1
protection class acc. to EN 60529	IP42
Rated operational conditions
rated phase-to-phase voltage range	120...690V AC
maximum operation phase-to-phase voltage	760V AC
EMF motors voltage range	1...760V AC
frequency range	2...70Hz
operating temperature	-10...+45°C
storage temperature	-20...+60°C
Other technical data
power supply	alkaline battery 6LR61 (9V)
dimensions	130 x 70 x 35mm
weight	approx. 250g
diode flashing time of battery state	approx. 1s
function auto-off	5min

Phase / Motor / Transformer Testing/Phase and Rotation Meters Template
Maximum Frequency Range	70 Hz (0.00007 MHz)
Phases	Three phase
Rotation Direction	Yes
Measure Voltage	No
Maximum Voltage	760 V
Type (Phasing Sequence)	Portable
Test Equipment General Attributes
Unique Features	check motor rotation thru non-contact or direct connection
Warranty	3 YEARS
Safety Approval	CE, RoHS
IP Rating	IP42
Product Weight	340 GRAMS (0.750 LBS)
Product Height	130 MM (5.12 IN)
Product Length	72 MM (2.83 IN)
Product Width	31 MM (1.22 IN)
Shipping Weight	0.48 KILOS (1.06 LBS)
HTS/Schedule B Number	9030.39.0100
ECCN Number	EAR99
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	Poland
Shipping Height	3.00 IN
Shipping Length	5.00 IN
Shipping Width	10.00 IN
