Sonel MIC-10s1 10kV Class Insulation Tester

Name: Sonel MIC-10s1 10kV Class Insulation Tester
Brand: Sonel
SKU: SonelMIC-10s1
Price: 5150.00 USD
Availability: InStock

0 reviews | Catalog: WMUSMIC10S1 | UPC: 5907624025851 | Model: Sonel MIC-10s1

Compare

10kV insulation resistance meter

Insulation resistance to 40.0 TΩ
User-selectable test voltage any from 50 V to 1,000 V (with 10 V resolution) and 1,000 V to 10,000 V (with 25 V resolution)
Continuous indication of measured insulation resistance or leakage current
Audio beeps every five-second periods to indicate measurement progress
Indication of actual test voltage during measurement
1.2 mA, 3 mA and 5 mA test current
Step voltage and ramp voltage insulation resistance measurements (SV) (RV)
Selectable test times (T1, T2, T3 from 1 to 600 seconds) to measure one or two absorption coefficients
Adjustable measuring time to 99' 59"
Polarization index (PI) and dielectric absorption ratio (DAR) measurements
Dielectric Discharge calculation (DD)
Digital filters function for measurements in high-noise environment (10 s, 30 s, 60 s)
High-noise immunity, up to 1550 V (induced)
Adjustable limit settings for measured resistance RISO
Measurement of capacitance during the measurement of RISO
DC and AC voltage measurement in the range of 0 V to 600 V
Graphical display of R and V, or R and I, plots the progress of test in real-time, and final graph (see example below)
Meter conforms to EN 61557

View Product Details

List Price: $5,150.00

In Stock:

View Payment Options

Recommended for you

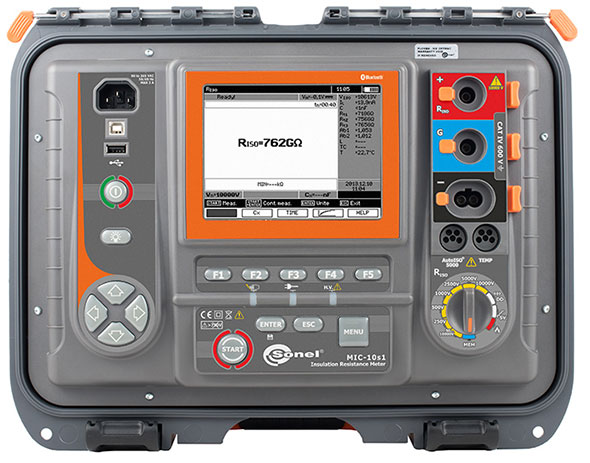

Sonel MIC-10s1 10kV Class Insulation Tester

It is a portable, rugged, easy-to-use, 10 kV class insulation test meter
It has a wide measurement range, selectable test voltages, and excellent safety features
Insulation resistance measurement features to 40.0 TΩ

User-selectable test voltage any from 50 to 1,000 V (with 10 V resolution) and 1,000 to 5,000 V (with 25 V resolution)
Continuous indication of measured insulation resistance or leakage current
Audio beeps every five-second periods to indicate measurement progress
Indication of actual test voltage during measurement
1.2 mA, 3 mA and 5 mA test current
Step voltage and ramp voltage insulation resistance measurements (SV) (RV)
Selectable test times (T1, T2, T3 from 1 to 600 seconds) to measure one or two absorption coefficients
Adjustable measuring time to 99' 59"
Polarization index (PI) and dielectric absorption ratio (DAR) measurements
Dielectric Discharge calculation (DD)
High-noise immunity; digital filters function for measurements in high noise environment (10 s, 30 s, 60 s)
Adjustable limits for measured resistance RISO.
Measurement of capacitance during the measurement of RISO
DC and AC voltage measurement in the range of 0 to 600 V
Meter conforms to EN 61557

Specifications
Insultaion Resistance Measurement
Measurement range acc. to IEC 61557-2	VN = 10,000V: 10.00MΩ to 40.0TΩ
Measurement with DC and increasing voltage (SV) for UISO = 10 kV
Range	Resolution	Accuracy
0.0 to 999 kΩ	1 kΩ	±(3% m.v. + 10 digits)
1.00 to 9.99 MΩ	0.01 MΩ
10.0 to 99.9 MΩ	0.1 MΩ
100 to 999 MΩ	1 MΩ
1.00 to 9.99 GΩ	0.01 GΩ
10.0 to 99.9 GΩ	0.1 GΩ
100 to 999 GΩ	1 GΩ	±(3.5% m.v. + 10 digits)
1.00 to 9.99 TΩ	0.01 TΩ	±(7.5% m.v. + 10 digits)
10.0 to 20.0 TΩ	0.1 TΩ	±(12.5% m.v. + 10 digits)
10.0 to 40.0 TΩ	0.1 TΩ	±(12.5% m.v. + 10 digits)
Approximate maximum values of the measured resistance, depending on the test voltage
Voltage VISO	Measurement range	Measurement range with AutoISO-5000
50 V	200 GΩ	20.0 GΩ
100 V	400 GΩ	40.0 GΩ
250 V	1.00 TΩ	100 GΩ
500 V	2.00 TΩ	200 GΩ
1000 V	4.00 TΩ	400 GΩ
2500 V	10.00 TΩ	400 GΩ
5000 V	20.0 TΩ	400 GΩ
10,000 V	20.0 TΩ	-
AC/DC voltage measurement
Range	Resolution	Accuracy
0.0 to 29.9 V	0.1 V	±(2% m.v. + 20 digits)
30.0 to 299.9 V	0.1 V	±(2% m.v. + 6 digits)
300 to 750 V	1 V	±(2% m.v. + 2 digits)
Frequency range	45 to 65Hz
Capacitance measurement
Display range	Resolution	Accuracy
1 to 999 nF	1 nF	±(5% m.v. + 5 digits)
1.00 to 49.99 µF	0.01 µF	±(5% m.v. + 5 digits)
-Measurement of capacitance is available only during RISO measurement (when discharging the object).
-Accuracy of measurement is met for tested capacitance connected in parallel with a resistance greater than 10 MΩ
-For measurement voltages below 100 V accuracy is not specified
Temperature measurement
Display range	Resolution	Accuracy
-40.0 to 99.9 °C	1 °C	±(3% m.v. + 8 digits)
-40.0 to 211.8 °F	1 °F	±(3% m.v. + 16 digits)
Safety
Type of insulation	double, according to EN 61010-1 and IEC 61557
Measurement category	CAT IV 600 V (CAT III 1000 V) according to EN 61010-1
Protection class acc. to EN 60529	IP40 (IP67 with closed cover)
Other technical data
Power supply from	battery 12V or from electric grid 90 V to 260 V, 50 Hz / 60 Hz
Weight	ca. 15.5 lbs / 7 kg
Dimensions	15.35" x 12.2" x 7.09" / 390 x 310 x 180 mm
Display	LCD 5.6'’ graphical
Data transmission	USB cable or Bluetooth

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
IR Test Voltage	1,000 V, 10,000 V, 100 V, 125V, 2,000 V, 2,500 V, 250 V, 400V, 5,000 V, 50 V, 500 V
Maximum Insulation Resistance	40 T Ohms (40000 G Ohms)
Automated Test Results	Dielectric Absorption Ratio, Dielectric Discharge, Leakage Current, Step Voltage
Type	Battery, Line
Minimum Insulation Resistance	1 K Ohms (0.000001 G Ohms)
Variable Incremental Voltage	Yes
Display (Megohmmeter)	Digital, Graphical
Live Circuit Voltage Detection	Yes
Power Supply	Battery, Line Powered
Timer	Yes
CAT Rating	IV
CAT Voltage	600 V
Test Equipment General Attributes
Unique Features	Measurement graphs on screen
Warranty	3 YEARS
Safety Approval	CE, RoHS
Interfaces I/O	Bluetooth, USB
Storage	Internal Memory
IP Rating	IP40, IP67
Product Weight	5.6 KILOS (12.35 LBS)
Product Height	180 MM (7.09 IN)
Product Length	390 MM (15.35 IN)
Product Width	310 MM (12.20 IN)
Shipping Weight	10 KILOS (22.05 LBS)
Data Logging	Yes
ECCN Number	EAR99
Calibration Included	Factory Calibration
Battery Type	Li-ion
Power Supply Voltage	120V/220V Universal, Battery Powered
Country of Origin	Poland
