Wire Tracer Receiver

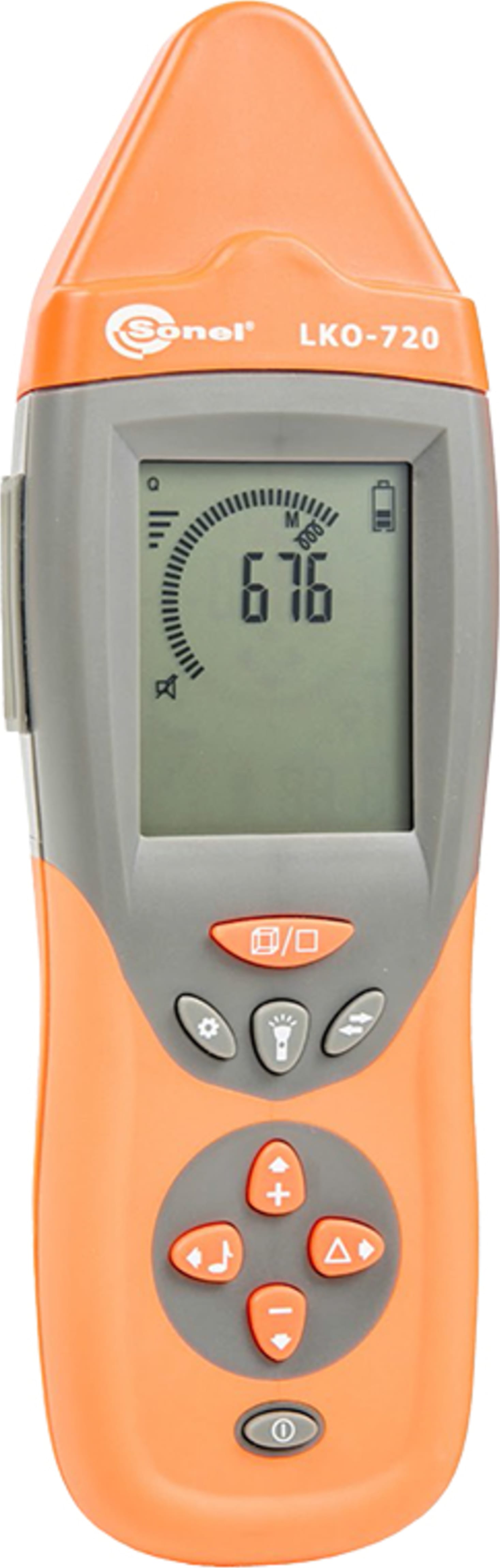

The Sonel LKO-720 Wire Tracer Receiver has two detectors: one for electric and one for the magnetic field. The electric field detector is a planar antenna designed to detect changes in the electric field in accordance with the signal generated by the transmitter. The magnetic field detector is an antenna designed in 3 planes, which allows for detecting the direction of signal transmission. The strength of the electric or magnetic field is depicted by "tilting" the indicator bar graph and the display shows the numerical value of the received signal level.
Detection and tracing cables in ceilings, walls, and floors
In response to the needs of customers, the LKO-720 has a specially designed 3D antenna that raises the precision of the wire tracing. Determining the direction of wires in concrete up to 2” (5 cm) will not be a problem now.
Identification of fuses on the distribution board
Thanks to the precise sensor in LKO-720 and additional contact and non-contact probes, identifying of breakers and fuses now will be easier and time-saving.
Possibility of tracing in no access conductors
The LKO-720 with C-8 clamp used in the current mode or other mode forcing current allows to uniquely identify wire or cable with a forced current signal.
Non-contact detection of live cables
The LKO-720 allows us to precisely detect energized wires in air and concrete without additional probes.
