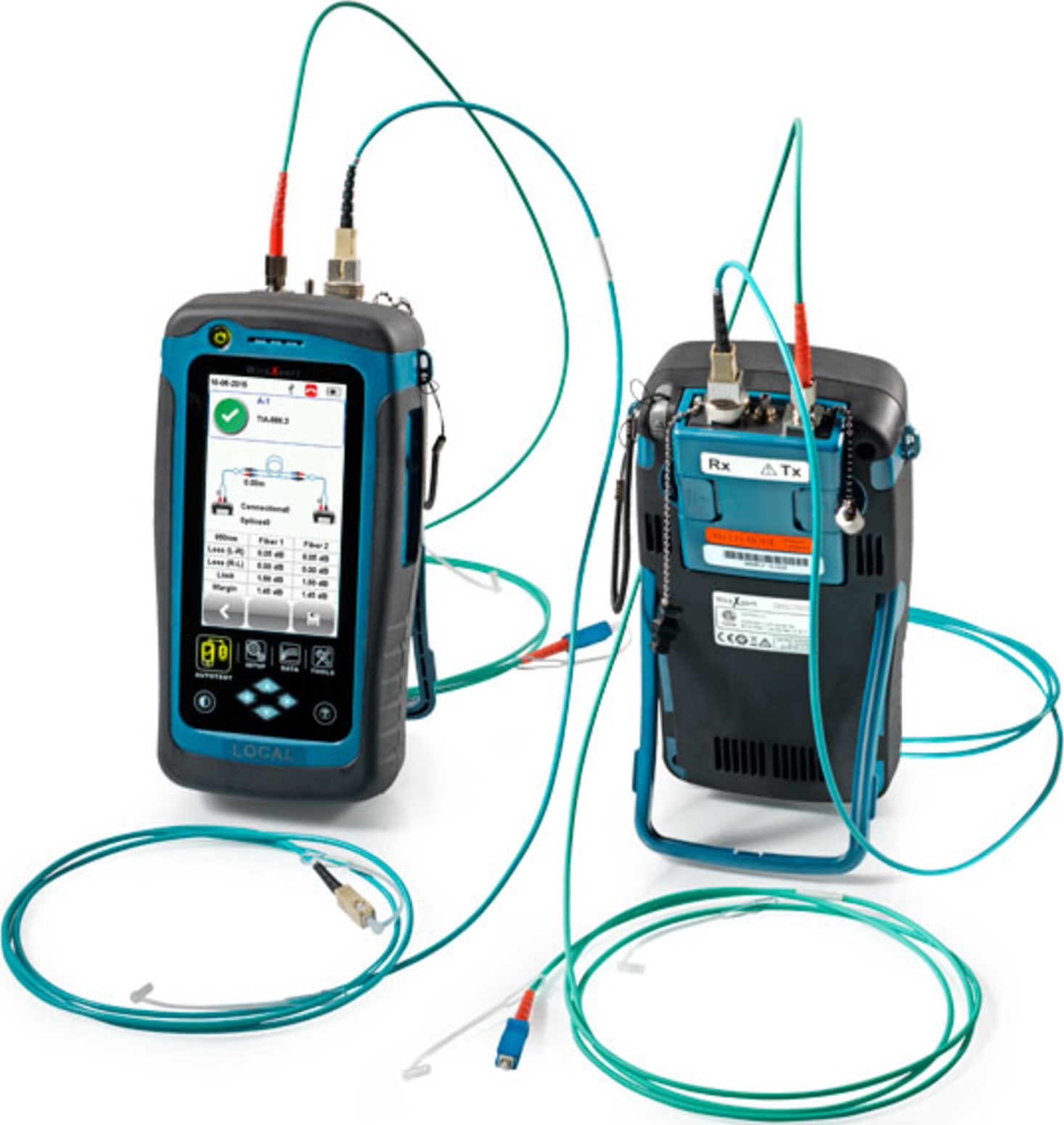

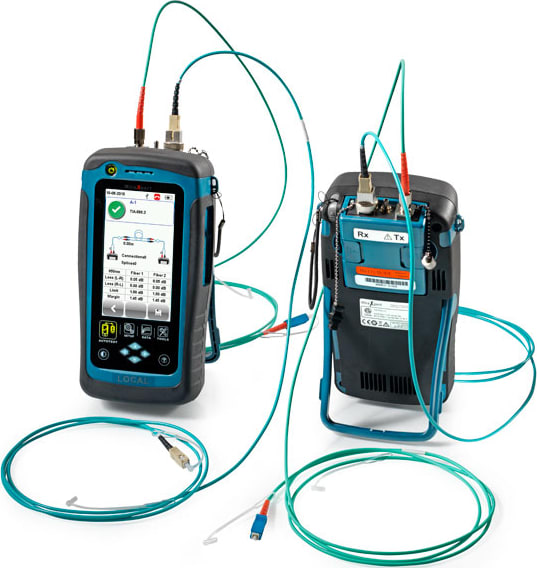

Softing WX-AD-EF-MM2 Encircled Flux Compliant Multimode Fiber Adapter Kit

Name: Softing WX-AD-EF-MM2 Encircled Flux Compliant Multimode Fiber Adapter Kit
Brand: Softing
SKU: SoftingWX-AD-EF-MM2
Price: 5400.00 USD
Availability: InStock

0 reviews | Catalog: WX-AD-EF-MM2 | Model: Softing WX-AD-EF-MM2

Compare

Encircled Flux Compliant Multimode Fiber Adapter Kit: for certification testing at 850nm and 1300nm wavelengths with dual wavelength source (850nm and 1300nm). Includes a pair of FC-SC modally transparent test cords, and a pair of SC-SC tail cords

Compliant to IEC- 61280-4-1 EF standards and IEC-14763-3
Provides validation to different modal behaviors of various fiber optic manufacturers
Interchangeable robust SC, LC and ST adapter for EF kit
Provides troubleshooting with built-in Visual Fault Locator (VFL)
Improves repeatability of measurements
Reduces insertion loss variation between laboratory and field instruments

View Product Details

Your Price: $5,400.00

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Recommended for you

Softing WX-AD-EF-MM2 Encircled Flux Compliant Multimode Fiber Adapter Kit

One cable certifier to test copper- as well as multimode-, singlemode and MPO/MTP-fiber installations.
Improve productivity of technicians with easy setting and fast testing
Test single fiber links, trouble-shoot links with light source and power meter tools
Easy pictorial work-flow makes it easy to avoid human errors in testing

Multimode Fiber Adapters adds full standards compliant fiber certification capability

A light source and power meter are used to measure the power loss and length of optical cables at 850 and 1300 nm. Certification of Multimode fibers has often been a contentious issue due to the inherent uncertainties in the measurement process. ISO/IEC and TIA have recently adopted a Encircled Flux (EF) standard that standardizes the launch condition for the light sources used in Multimode test equipment. The WireXpert’s new EF compliant adapters give you guaranteed compliance to the EF standard IEC 61280-4-1.

Power Meter Specifications
Input Connector	Interchangeable connector with LC, ST and SC options) Standard kit ships with SC
Detector Type	InGaAs
Wavelengths	850nm, 1300nm
Power Measurement Range	-15 dBm to -60 dBm at 850nm, -15 dBm to -70 dBm at 1300 nm
Measurement Linearity	<±0.1 dB in the power measurement range
Re-calibration Period	1 year

Loss/Length Specifications
Specification	MMEF
Input/Output Connectors	Interchangeable connector with LC, SC, ST options
Launch Condition	Encircled Flux compliant to IEC 612480-4-1
Fiber Types Tested	50/125, 62.5/125
Source Type and Wavelengths	850/1300 nm
Length Measurement Accuracy	±1.5m
Output Power (Nominal)	> -20 dBm at 850, 1300 nm
Output Power Stability	±0.02 dB after 3 minute warm up time

Visual Fault Locator (VFL)
Output Power	>-4dBm, < -1 dBm Continuous, blinking mode CW output SC connector
Operating Wavelength	650 nm
Output Modes	Pulsed, Continuous
Connector Adapter	2.5mm
Laser Safety	Class II
