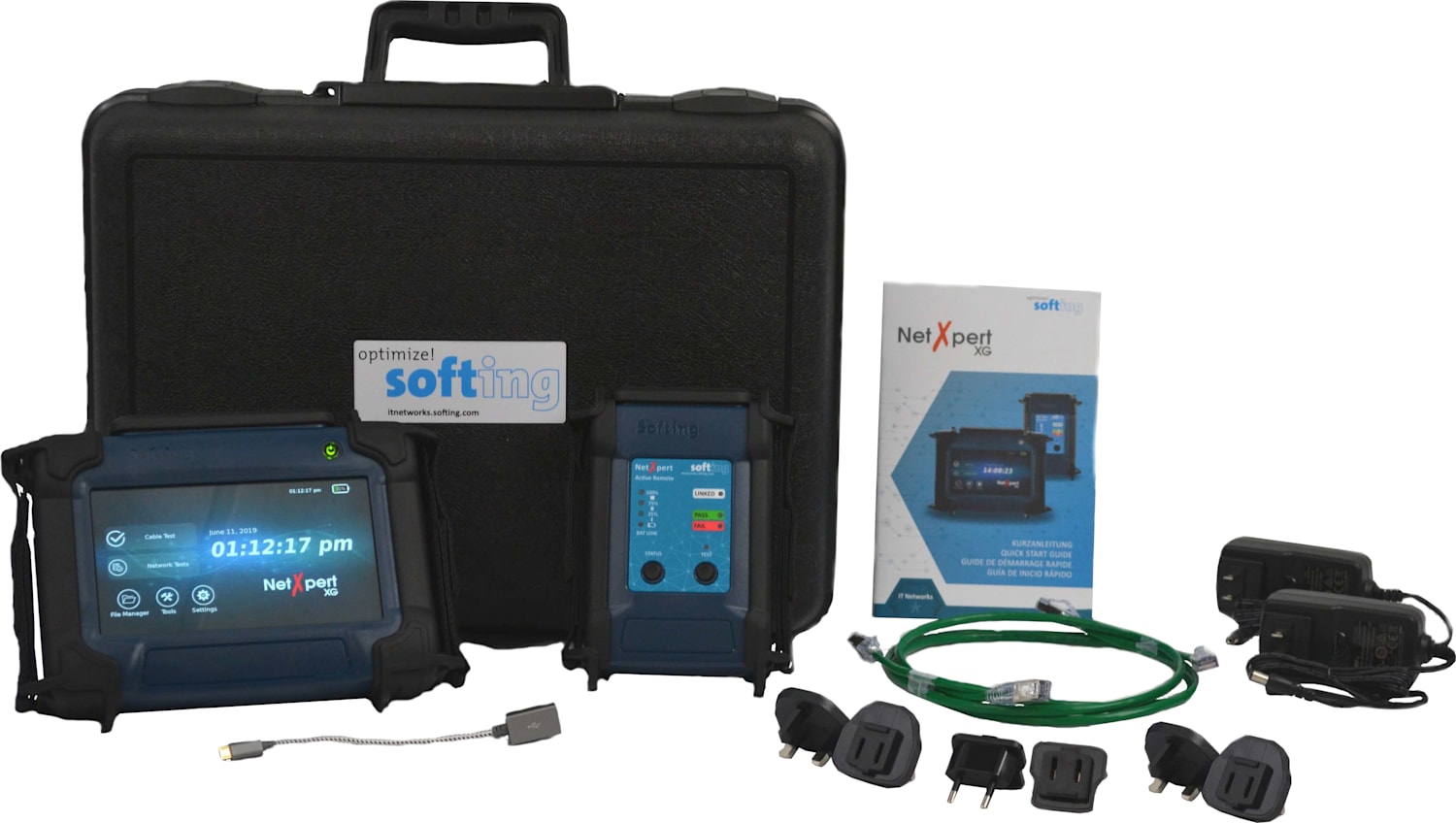

The Softing NetXpert XG 10G is an ethernet speed certifier for use with speeds up to 10 Gb/s. There are also two other versions of this device available, designed for 5G and 1G.

The Next Generation of Ethernet Speed Certification

New standards defining data rates up to 10Gbit/s are big challenge for latest generation qualifiers. Particularly cabling for wireless access points has to support ever increasing data rates. In order to verify if the cabling installed is able to support the increased data rates, operators need to perform adequate testing before commissioning the network, to avoid any unpleasant surprises.

NetXpert XG enables you to meet the new challenges now!

Test for Highest Network Speeds with Your Qualifier

The new NetXpert XG verifies, if cabling channels support maximum transmission rates, irrespective of cable categories, patch panels, or outlets installed. NetXpert XG provides a precise statement by automatically performing three individual tests which are combined into an overall test result.

By performing a sequence of various tests the NetXpert XG verifies error-free data transmission. Determination of Signal-to-noise ratio (SNR) followed by a Bit Error Rate Test (BERT) and delay skew test qualify Gigabit transmission. Delay skew indicates the signal time delay between the wire pairs used. Excessive delay can result in a serious degradation of transmission performance, making it impossible for the receiver to interpret the data stream correctly. Delay skew, just as the signal-to-noise ratio, are considered to be crucial parameters for a reliable data transmission.

Including Ports for Fiber Optic Measurements

The NetXpert offers full flexibility regardless of whether you are measuring fiber or copper cabling. Using its available SFP/SFP+ ports, various active fiber tests such as protocol detection (CDP/LLDP), network ping test and network discovery can be performed. In the area of passive tests, qualification of fiber optic cabling will be possible by connecting one main unit at each end.


Hardware

Main unit Housing is impact-resistant plastic with edge protector elastic bands Foldable kickstand for convenient operation Ergonomic landscape format to maximize readability Hand straps (not illustrated) for carrying comfort Rubber material to cover all the ports User accessible battery On/off button

• Power unit on and off
• Integrated LED indicates the status of the power supply
• Green = Battery charge >20%
• Green flashing = Unit is charging (both fans are running)
• Red = Battery charge <20%
• Red flashing = Unit is not charging because of excessive internal heating (both fans are running, charging will start automatically, when temperature returns to normal)

Ports

One touch bit error rate test, signal-to-noise ratio, and delay skew


By performing a Bit Error Rate Test (BERT) and standards based tests as per IEEE 802.3an, the NetXpert XG proves the error-free data transmission up to 10Gb/s. A one touch auto test includes BERT, signal-to-noise ratio (SNR), and delay skew, all of which can impact Gigabit transmission. Signal-to-noise ratio checks to ensure noise is low enough and signal is high enough for reliable transmission. Delay skew indicates the signal time delay between the wire pairs. Excessive delay from one pair can result in a serious degradation of transmission performance making it impossible for the receiver to interpret the data stream correctly. All three crucial measurements for determining reliable data transmission are performed at the touch of a button.

Get graphical results Continuity test results of all 8 wires and the shielding are displayed in wire map format in full color, while showing cable faults such as opens, shorts, miswires, and split pairs on a clear and easy to understand graphical display. NetXpert determines the cable length and the distance to faults performing full TDR (Time Domain Reflectometer) measurement in combination with a capacitance measurement, for increased accuracy. Get Faster Results The simple one touch autotest can be initiated either from the main unit or from the Active Remote, which saves time spent walking between outlets and reduces the overall task time. When troubleshooting, all cable tests can be performed individually to minimize fault-finding time.



Troubleshooting active PoE++ networks For troubleshooting active PoE++ networks, NetXpert XG offers a comprehensive tool set. This includes load tests for voltage drop to verify stability of PoE supplies, identification of the devices connected to the network, and detection of availability of critical devices such as IP cameras, wireless access points, and network routers.

NetXpert XG offers internal storage even for large projects and generates complete standards-based measurement reports.

Extensive accessories turn the NetXpert XG into the ultimate multi-tool - from locating individual cables with the built-in tone generator or the remote identifiers, to generating measurement documentation, and active network troubleshooting of PoE++ networks.


Extendable platform NetXpert XG ensures platform extendability for high-speed qualification. The NetXpert XG offers simple firmware upgrades, and a license system allows for upgrades even after your initial purchase.

There are 3 license-able speed options: 1G, 5G, and 10G. The purchase of an upgrade license extends the speed of the device one step upwards.

All wear parts (e.g. RJ45 jack) can easily and conveniently be replaced.
