| General specifications |
| Measurement Technology |
Time Domain Reflectometry (TDR) and capacity |
| Cable Measurements |
Cable Testing and ID: up to 1,000 ft (305 m)
Split Pair Detection: 3 ft (1 m) to 1,000 ft (305 m)
Length Measurement: 0 to 1,500 ft (457 m), ± (5%+1ft)

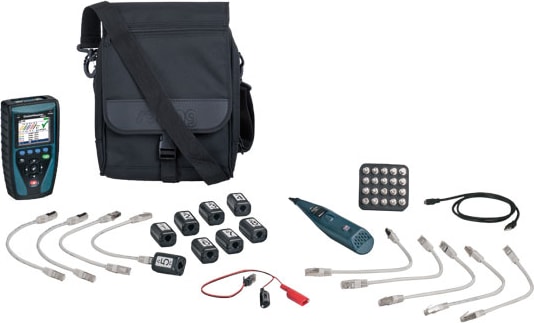

Supports 8 continuity and ID numbers remotes (RJ 45)
Supports 20 RJ 45 and 20 F connector ID only remotes |
| Power over Ethernet |
Tests for IEEE 802.3af and IEEE 802.3at (PoE Plus) compliant PoE
Tests for classes and loads cable up to 25.5 watts (at class 4 Identifies Mode A or B (pairs with PoE) |
| Active Ethernet |
Indicates advertised speeds of 10/100/1000 base-T half or full duplex
Can Link to network at 10/100 base-T |
| Network Discovery Test |
Discovers and displays attached network devices
Ping IPv4/URL/IPv6
DHCP/DNS Test
LLDP/CDP identification
TCP/UDP Connectivity test
Port LED blink link in 0,1 Hz-steps |
| Reporting |
PDF/CSV reports with PC- Software |
| Maximum Voltage |
Parameters refer to the maximum voltage that can be applied to any 2 connector pins without causing damage to the tester
RJ Jack: 66 Vdc or 55 Vac
F-connector: 50 Vdc or Vac |
| Save Test Results |
Stores up to 250 Cable or network tests with user defined names |
| Tone Generation |
Tone Frequencies: 730 Hz and 1440 Hz |
| Languages |
English, French, German, Spanish |
| Battery Life |
For 6xAA, 9VDC, 2,200 mA-hr (typical) alkaline battery:
Operating - 20 hours typical
Standby - 1.5 years typical
(200 uA max standby current), Batteries are included |
| Altitude |
10.000 ft (3048 m) operating |
| Temperature |
Operating: 32 to 122°F (0 to 50°C) |
| Storage |
-22 to 140°F (-30 to 60 °C) |
| Humidity |
10 to 90% non-condensing |
| Enclosure |
High-strength PC/ABS plastic with VO rating with boot
Withstands 4 foot drop on to concrete |
| Display |
Full color graphical LCD with 7,1 cm diagonal |
| Size |
1.85"H x 3.6"W x 6.8"L (4.7 x 9.15 x 17.3 cm) |
| Weight |
With batteries: 1 lb 2 oz (510 g) |
| Safety Compliances |
CE conforming |
