Softing CableMaster 800 - Professional Cabling Tester and Network Diagnostic Tool

Name: Softing CableMaster 800 - Professional Cabling Tester and Network Diagnostic Tool
Brand: Softing
SKU: SoftingCableMaster 800
Price: 769.00 USD
Availability: InStock

0 reviews | Catalog: 226520 | Model: Softing CableMaster 800

Compare

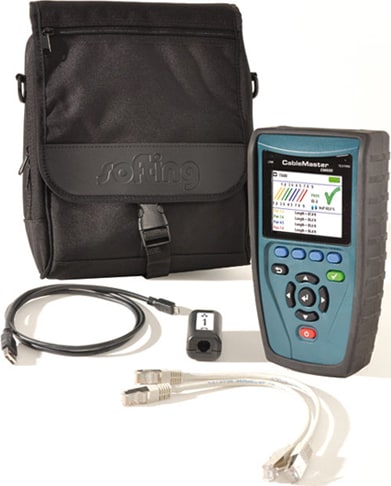

Cable and network tester 1 x CableMaster 800 basic Unit,1 x Remote Unit,6 x AA Batteries, Micro USB-Cable, Pouch

Tests network and coaxial cables (RJ45 jack and F-type connector)
Displays wire map in graphical format for rapid troubleshooting
Determines cable length and distance to the cable fault performing a full TDR measurement
Cable/port identification using the cable/port ID remotes
PoE detection and load test
Link test up to 1 Gb/s to identify link capability and current link status
Pinging of individual or lists of IPv4 and IPv6 addresses as well as any URL on internet
Network Discovery creates lists of broadcasted devices
CDP/LLDP/NDP and VLAN discovery
High resolution color display for excellent readability in any environment
Generation of test reports and documentation with PC-based reporting software

View Product Details

List Price: $769.00

In Stock:

View Payment Options

Recommended for you

Softing CableMaster 800 - Professional Cabling Tester and Network Diagnostic Tool

Test your network and coax cabling quickly and conveniently (RJ45 and F-coaxial connectors)
Get an overview of the correct cable wiring with a graphical display in wire map format
Determine cable lengths and distance to cable faults with a full TDR measurement
Carry out a PoE load test to ensure trouble-free operation of PoE devices (displays voltage and power)
Quickly document your work within a blink of the eye with screenshots of your test results

The CableMaster 800 is a professional cable tester equipped with an RJ45 jack for network cables and an F-type connector for coaxial cables. The CableMaster 800 verifies the wire map, determines the cable length and distance to the fault. The results can be saved and documented using the PC-based reporting software. In addition, the CableMaster 800 offers a multitude of network diagnostics features for trouble-shooting such as cable tracing, link detection up to 1Gb/s, Ping, network discovery, PoE tests and much more.

The CableMaster 800 is perfectly suited for professional installers and network operators who are challenged with testing and troubleshooting network (RJ45) and coaxial cabling in active networks.

The CableMaster 800 enables rapid identification of network ports/outlets while displaying link capability and current link status. With the added network discovery features, any broadcasted devices in the network can be discovered and displayed and saved as a list. Pinging individual or lists of IPv4 and IPv6 addresses as well as a URL will detect their availability.

Cable test results can be saved in the main unit and be exported to the PC via the included USB cable.

Designed for Many Applications

Softing offers a variety of products for the testing, certification and verification of both copper and fiber optic cable. The chart below is an overview of the functionality and differences of several popular models. Testers are also available in packages with different accessories.

	Verifier		Qualifier	Certifier
	CM600/650	CM800/850	NetXpert 1400	WireXpert 4500
Media/Connection Type
Copper Ethernet cabling RJ45	■	■	■	■
Copper Ethernet cabling M12			■	■
Coax	■	■	■	■
Phone	■	■	■
Fiber Single Mode; Multi Mode; MM MPO				■
VNA				■
Barewire				■
Measurements to Standards
ANSI/TIA 568 (US)				■
ISO/IEC 11801 (International)				■
EN 50173 (Europe)				■
IEEE 802.3 Fast Ethernet 100Mbit/s			■
IEEE 802.3at PoE	■	■	■
Passive Test and Measurement Parameters
Wire Map	■	■	■	■
Length	■	■	■	■
Tone Generator	■	■	■
RF Measurements (NEXT; Insertion Loss, Return Loss, ,..)				■
Signal-to-Noise-Ratio			■
Delay Skew			■	■
Test frequency				up-to 2.500 MHz
Active Test Parameters
DHCP test		■	■
Ping (single and list)		■	■
Discovery function (LLDP;CDP;NDP)		■	■
Port LED Activation	■	■	■
VLAN Recognition			■
Trace Route			■
Bit-Error-Rate Test			■
Reporting
Screenshot	■	■
Report generation already in tester			■
PC Reporting software				■

General specifications
Measurement Technology	Time Domain Reflectometry (TDR) and capacity
Cable Measurements	Cable Testing and ID: up to 1,000 ft (305 m) Split Pair Detection: 3 ft (1 m) to 1,000 ft (305 m) Length Measurement: 0 to 1,500 ft (457 m), ± (5%+1ft) Supports 8 continuity and ID numbers remotes (RJ 45) Supports 20 RJ 45 and 20 F connector ID only remotes
Power over Ethernet	Tests for IEEE 802.3af and IEEE 802.3at (PoE Plus) compliant PoE Tests for classes and loads cable up to 25.5 watts (at class 4 Identifies Mode A or B (pairs with PoE)
Active Ethernet	Indicates advertised speeds of 10/100/1000 base-T half or full duplex Can Link to network at 10/100 base-T
Network Discovery Test	Discovers and displays attached network devices Ping IPv4/URL/IPv6 DHCP/DNS Test LLDP/CDP identification TCP/UDP Connectivity test Port LED blink link in 0,1 Hz-steps
Reporting	PDF/CSV reports with PC- Software
Maximum Voltage	Parameters refer to the maximum voltage that can be applied to any 2 connector pins without causing damage to the tester RJ Jack: 66 Vdc or 55 Vac F-connector: 50 Vdc or Vac
Save Test Results	Stores up to 250 Cable or network tests with user defined names
Tone Generation	Tone Frequencies: 730 Hz and 1440 Hz
Languages	English, French, German, Spanish
Battery Life	For 6xAA, 9VDC, 2,200 mA-hr (typical) alkaline battery: Operating - 20 hours typical Standby - 1.5 years typical (200 uA max standby current), Batteries are included
Altitude	10.000 ft (3048 m) operating
Temperature	Operating: 32 to 122°F (0 to 50°C)
Storage	-22 to 140°F (-30 to 60 °C)
Humidity	10 to 90% non-condensing
Enclosure	High-strength PC/ABS plastic with VO rating with boot Withstands 4 foot drop on to concrete
Display	Full color graphical LCD with 7,1 cm diagonal
Size	1.85"H x 3.6"W x 6.8"L (4.7 x 9.15 x 17.3 cm)
Weight	With batteries: 1 lb 2 oz (510 g)
Safety Compliances	CE conforming

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (0)

These both include the same CableMaster tester, but are offered with different accessories. The following is an overview of each: • CableMaster 800 • Cable tester, incl. 1 network/tel testing and ID remote • 6x AA batteries • 2x RJ45 cables • Micro USB cable • Pouch • CableMaster 850 • Cable tester, incl. 1 CableTracker CT15 tone probe • 8x network/tel testing and ID remotes • Cable assembly RJ45 to alligator clips • No. 1-20 coax ID remotes • 6x AA batteries • 9x RJ45 cables • Micro USB cable • Pouch

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous
