Softing CableMaster 650 - Professional Cable Tester

Name: Softing CableMaster 650 - Professional Cable Tester
Brand: Softing
SKU: SoftingCableMaster 650
Price: 789.00 USD
Availability: InStock

0 reviews | Catalog: 226516 | Model: Softing CableMaster 650

Compare

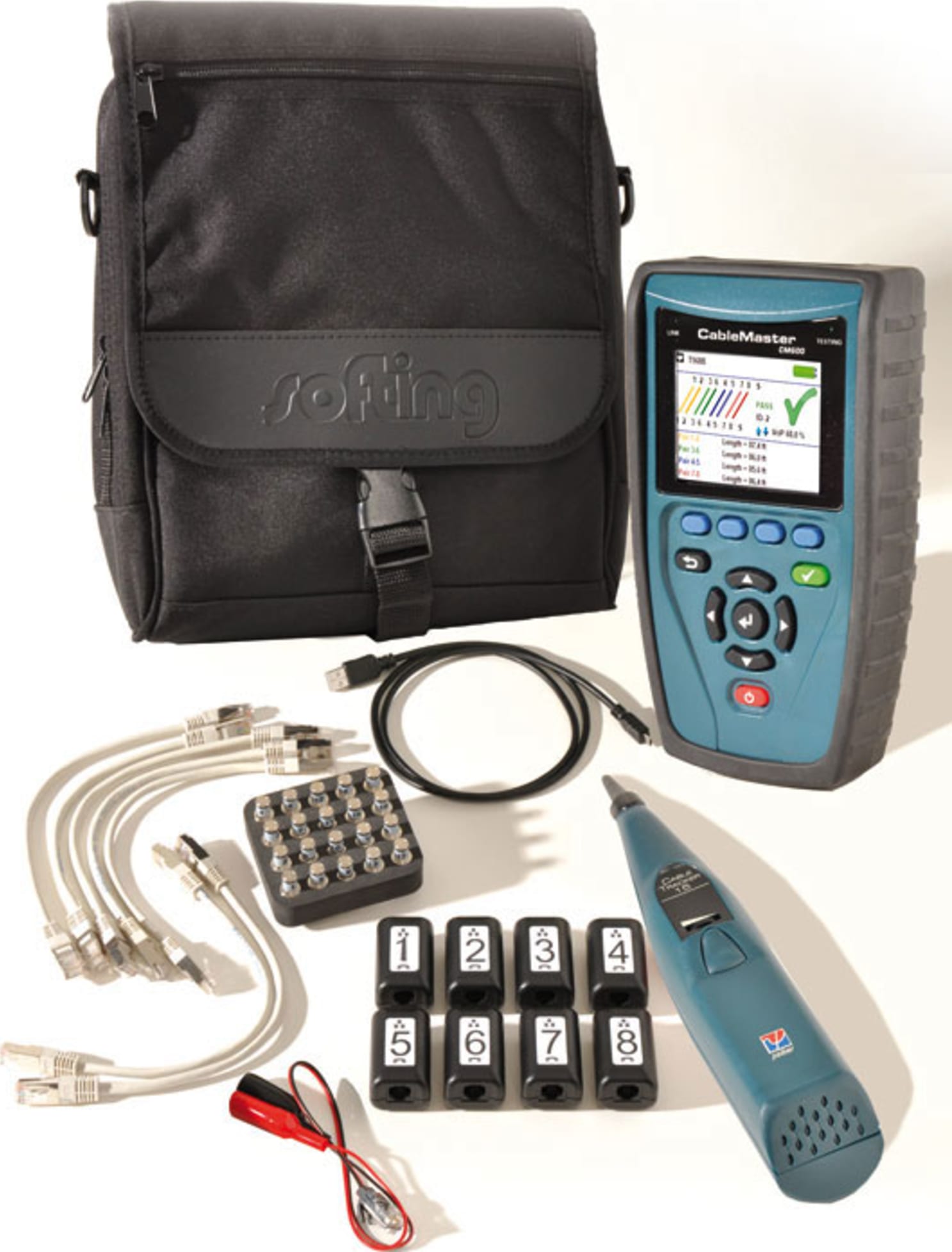

Cable tester incl. 1 Cable Tracker Probe CT15, 8 Remote Units, 1x cable RJ45 /alligator clip, 1-20 Coax ID, 6xAA Batteries, 9xRJ45 Cabel, Micro USB-Cable, Pouch

Tests network and coaxial cables (RJ45 jack and F connector)
Displays wire map in graphical format for rapid trouble-shooting
Determines cable length and distance to the cable fault performing a full TDR measurement
High resolution color display for excellent readability in any environment
Generation of test reports and documentation with PC-based reporting software

View Product Details

List Price: $789.00

In Stock:

View Payment Options

Recommended for you

Softing CableMaster 650 - Professional Cable Tester

Extensive test and fault finding capabilities

Cable tracing/port identification using a tone probe
PoE detection and testing
Link test up to 1 Gb/s
Outlet/port identification with ID remotes

The Softing CableMaster 650 is a cabling tester for network, telephone, coax cabling, as well as determining the cable length and distance to the fault.

Equipped with an RJ45 jack for network cables and an F-connector for coax cables, the CableMaster 650 verifies the wire map, determines the cable length and distance to the fault. The results can be saved and documented using the PC-based reporting software. The CableMaster 650 offers a multitude of functions for trouble-shooting such as cable tracing, link detection up to 1Gb/s, PoE tests and port/outlet identification with ID remotes.

The CableMaster 650 is perfectly suited for professional installers and network operators who are challenged with testing network (RJ45) and coax cabling, verifying the correct wiring, determining cable lengths and documenting all this in test reports.

Designed for Many Applications

Softing offers a variety of products for the testing, certification and verification of both copper and fiber optic cable. The chart below is an overview of the functionality and differences of several popular models. Testers are also available in packages with different accessories.

	Verifier		Qualifier	Certifier
	CM600/650	CM800/850	NetXpert 1400	WireXpert 4500
Media/Connection Type
Copper Ethernet cabling RJ45	■	■	■	■
Copper Ethernet cabling M12			■	■
Coax	■	■	■	■
Phone	■	■	■
Fiber Single Mode; Multi Mode; MM MPO				■
VNA				■
Barewire				■
Measurements to Standards
ANSI/TIA 568 (US)				■
ISO/IEC 11801 (International)				■
EN 50173 (Europe)				■
IEEE 802.3 Fast Ethernet 100Mbit/s			■
IEEE 802.3at PoE	■	■	■
Passive Test and Measurement Parameters
Wire Map	■	■	■	■
Length	■	■	■	■
Tone Generator	■	■	■
RF Measurements (NEXT; Insertion Loss, Return Loss, ,..)				■
Signal-to-Noise-Ratio			■
Delay Skew			■	■
Test frequency				up-to 2.500 MHz
Active Test Parameters
DHCP test		■	■
Ping (single and list)		■	■
Discovery function (LLDP;CDP;NDP)		■	■
Port LED Activation	■	■	■
VLAN Recognition			■
Trace Route			■
Bit-Error-Rate Test			■
Reporting
Screenshot	■	■
Report generation already in tester			■
PC Reporting software				■

General specifications
Measurement Technology	Time Domain Reflectometry (TDR) and capacity
Cable Measurements	Cable Testing and ID: up to 1,000 ft (305 m) Split Pair Detection: 3 ft (1 m) to 1,000 ft (305 m) Length Measurement: 0 to 1,500 ft (457 m), ± (5%+1ft) Supports 8 continuity and ID numbers remotes (RJ 45) Supports 20 RJ 45 and 20 F connector ID only remotes
Power over Ethernet	Tests for IEEE 802.3af and IEEE 802.3at (PoE Plus) compliant PoE Tests for classes and loads cable up to 25.5 watts (at class 4 Identifies Mode A or B (pairs with PoE)
Active Ethernet	Indicates advertised speeds of 10/100/1000 base-T half or full duplex Can Link to network at 10/100 base-T
Reporting	PDF/CSV reports with PC- Software
Maximum Voltage	Parameters refer to the maximum voltage that can be applied to any 2 connector pins without causing damage to the tester RJ Jack: 66 Vdc or 55 Vac F-connector: 50 Vdc or Vac
Save Test Results	Stores up to 250 Cable or network tests with user defined names
Tone Generation	Tone Frequencies: 730 Hz and 1440 Hz
Languages	English, French, German, Spanish
Battery Life	For 6xAA, 9VDC, 2,200 mA-hr (typical) alkaline battery: Operating - 20 hours typical Standby - 1.5 years typical (200 uA max standby current), Batteries are included
Altitude	10.000 ft (3048 m) operating
Temperature	Operating: 32 to 122°F (0 to 50°C) Storage: -22 to 140°F (-30 to 60°)
Humidity	10 to 90% non-condensing
Enclosure	High-strength PC/ABS plastic with VO rating with boot Withstands 4 foot drop on to concrete
Display	Full color graphical LCD with 7,1 cm diagonal
Size	1.85"H x 3.6"W x 6.8"L (4.7 x 9.15 x 17.3 cm)
Weight	With batteries: 1 lb 2 oz (510 g)
Safety Compliances	CE conforming

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (0)

These include the same Cable Master tester, but are offered with different accessories. The following is an overview of each: •Cable Master 600 •Cable tester, incl. 1 network/tel testing and ID remote •6x AA batteries •2x RJ45 cables •Micro USB cable •Pouch •Cable Master 650 •Cable tester, incl. 1 Cable Tracker CT15 tone probe •8 network/tel testing and ID remotes •Cable assembly RJ45 to alligator clips •No. 1-20 coax ID remotes •6x AA batteries •9x RJ45 cables •Micro USB cable •Pouch

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous
