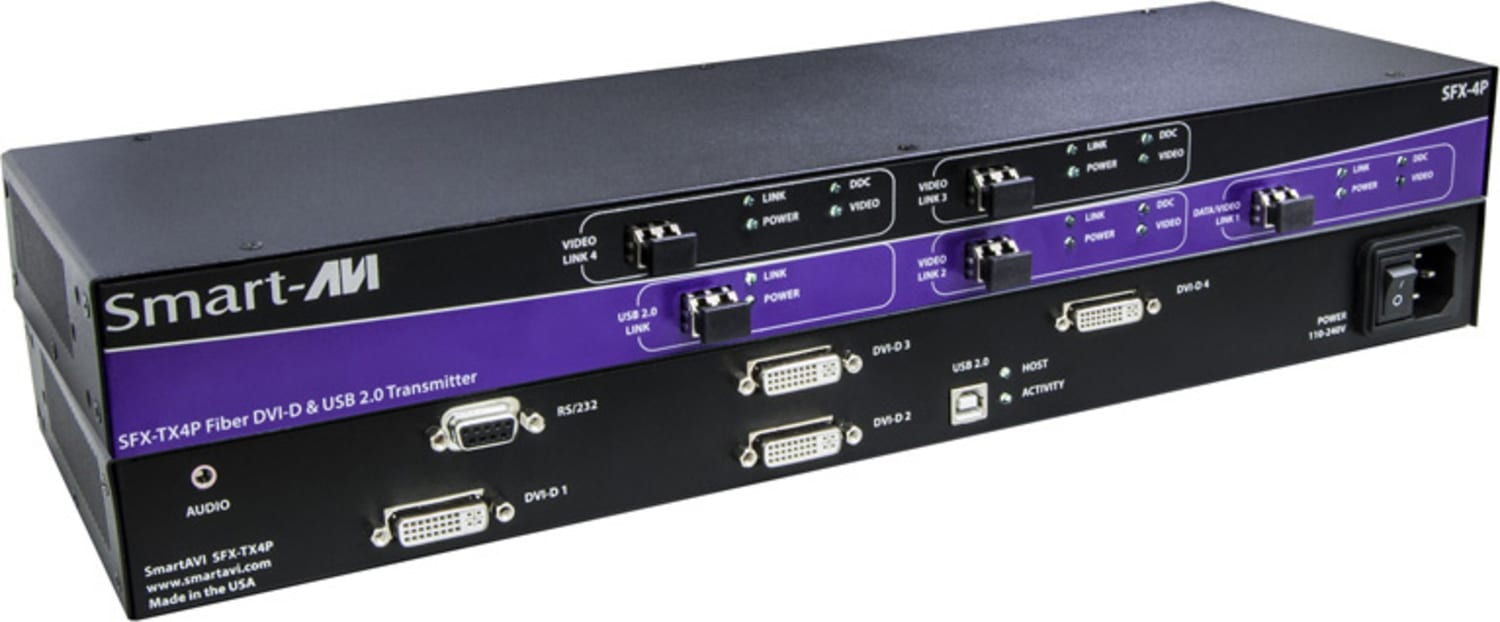

Smart-AVI SFX-4P-M-S 4-Port DVI-D, USB2.0, Audio, RS232 Extender

Name: Smart-AVI SFX-4P-M-S 4-Port DVI-D, USB2.0, Audio, RS232 Extender
Brand: Smart-AVI
SKU: Smart-AVISFX-4P-M-S
Price: 7311.69 USD
Availability: InStock

0 reviews | UPC: 638936932012 | Model: Smart-AVI SFX-4P-M-S

Images (6)

Compare

Quad DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Extender Up to 1500ft Includes: [SFX-4P-TX, SFX-4P-RX, 2 X (CCPWR06)]

Top Signal Quality at Maximum Extension.
Over Multimode Fiber (1,500 ft.) Plug Type LC
DVI-D Video Resolutions up to 1920 x 1200 WUXGA at 60Hz
Automatic Learning DDC for Mac/PC
Supports USB 1.1 (12 Mbps) and USB 2.0 (480 Mbps) data rates
Supports all USB device types transparently (no emulation)from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, game controllers and more
Integrated Four-Port Hub in the receiver
Compatible with all operating systems
Extends Stereo Audio
Extends RS-232
Plug and play

View Product Details

List Price: $8,999.00

Your Price: $7,311.69

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Smart-AVI SFX-4P-M-S Quad DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Extende ...	Smart-AVI DPX-1P-Plus Extend DP Video, USB Keyboard/Mouse, Audio, and RS232 up to 328 ft ( ...	Aten CE920 USB DisplayPort HDBaseT 2.0 KVM Extender 4K at 330ft	Aten UCE3250 4-Port Cat 5 USB 2.0 Extender up to 165 ft.	Aten UEH4102 4 Port USB2.0 cat5 Extender over LAN	Aten VE883K1 4K HDMI Optical Extender (985 ft)	Smart-AVI SDX-2P-S HDBaseT Dual DVI-D , USB 1.1, Dual RS232 , Audio, CAT5/5e/6 Extender In ...	Smart-AVI AR-100S RS-232 and Stereo Audio CAT5 Extender. Includes: [AR-TX100, AR-RX100, 2 ...	Smart-AVI LDX-2PS HDBaseT Dual DVI-D , USB 1.1, Dual RS232 , Audio over CAT5/5e/6 Extender ...	Smart-AVI LDX-4PS HDBaseT Quad DVI-D , USB 1.1 , RS232 , Audio over CAT5/5e/6 Extender. In ...	Smart-AVI LDX-PLUS-S HDBaseT DVI-D , USB 1.1 , RS232, and Audio over CAT5/5e/6 Extender. I ...	Smart-AVI LDX-S HDBaseT DVI-D , RS232 over CAT5/5e/6 Extender. Includes: [LDX-TX, LDX-RX, ...	Smart-AVI SFX-M-S DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Extender Up to ...	Smart-AVI MINI-XTS VGA with Audio Extender over CAT5e/6. Includes: [Mini-XT-TX, Mini-XT-RX ...	Smart-AVI RK8-HDX-POE-S 8-Port Rackmount HDBaseT HDMI and IR Extender Transmitter over a S ...	Smart-AVI DVX-200PS DVI-D/PC CAT5/5e/6 STP Extender. Includes: [DVX-TX200P, DVX-RX200, CCD ...	Smart-AVI DVS-200S DVI-D Point-to-Multipoint CAT5/5e/6 STP Extender, 2-Port Transmitter wi ...	Smart-AVI DVX-4PS Four DVI-D, USB 1.1, Audio, RS-232, CAT5/5e/6 STP Extender. Includes: [D ...	Smart-AVI HDX-LXS HDBaseT HDMI, IR, CAT5/5e/6 Extender, Includes: [HDX-LXTX, HDX-LXRX, 2 x ...	Smart-AVI HFX-S HDMI 2K/4K Multimode Fiber Extender. Includes: [HFX-TX, HFX-RX, 2 X (PS5VD ...	Smart-AVI HDX-W100S HDMI, IR, CAT5/5e/6 Wall Plate Extender. Includes: [HDX-W100TX, HDX-W1 ...	Smart-AVI HDX-POES HDBaseT HDMI and IR Extender over a Single Cat5e/6 Cable Includes: [HDX ...	Smart-AVI USB2NANO-S USB 2.0/1.1 Extender Link. Includes: [USB2NANO-TX, USB2NANO-RX]	Smart-AVI DVX-2PS Dual DVI-D, USB 1.1, Audio, RS-232, CAT5/5e/6 STP Extender. Includes: [D ...	Smart-AVI SDX-S HDBaseT DVI-D , RS232, CAT5/5e/6, Extender Includes: [SDX-TX, SDX-RX, 2 x ...	Smart-AVI SDX-PLUS-S HDBaseT DVI-D , USB 1.1 , RS232, CAT5/5e/6, Extender Includes: [SDX-P ...	Smart-AVI SFX-2P-M-S Dual DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Extende ...	Smart-AVI SDX-4PS HDBaseT Quad DVI-D , USB 1.1 , RS232 , Audio, CAT5/5e/6 Extender. Includ ...	Smart-AVI SWP-T10 HDMI, VGA, Stereo Audio, IR POE Extender with Integrated Scaler and Conv ...	Smart-AVI XTPROS UXGA/YUV/YC, Audio, RS-232, IR CAT5 Extender. Includes: [XTP-TX, XTP-RX, ...	Smart-AVI HDX-400-PROS HDMI Point-to-Multipoint CAT5/5e/6 STP Extender, 4-Port Transmitter ...	Smart-AVI FDX-AVPRO DVI-D, Stereo Audio, Singlemode Fiber Extender Up to 6 miles. Includes ...	Aten VE44PB 4-Output PoH/PoE Power Injector	Aten KE6940AKIT01 USB Single Link DVI-I Dual Display KVM over IP w/Audio and Serial (1 TX ...	Aten KE6900AKIT01 USB Single Link DVI-I Single Display KVM over IP w/Audio and Serial (1 T ...	Aten UCE32100 USB2.0 Cat5 Extender with 4-port Hub	Smart-AVI FVX-3000-PRO DVI-I (DVI/VGA), Stereo Audio, USB 1.1, RS-232, Multimode Fiber Ext ...	Smart-AVI FDX-3000-PRO DVI-D, Stereo Audio, USB 1.1, RS-232, Multimode Fiber Extender Up t ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Smart-AVI SFX-4P-M-S 4-Port DVI-D, USB2.0, Audio, RS232 Extender

4-Port Extender

Extends RS-232
Integrated four-port hub in the receiver
Compatible with all operating systems

The Smart-AVI SFX-4P-M-S 4-Port Extender is a perfect solution for extending 4 DVI-D and USB 2.0 signals from a computer in a remote location up to 1,500 feet away over fiber optic cable. It supports high-resolution DVI-D video and all USB device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras, and game controllers. The SFX-4P-M-S is immune to electromagnetic interference, making it ideal for use in situations where there is considerable interference. The SFX-4P-M-S is also very secure because it’s fiber optic signals cannot be easily tapped.

The SFX-4P-M-S supports USB 1.1 (12 Mbps) and USB 2.0 (480 Mbps) data rates. This extender is plug and play and is compatible with all operating systems.

Application

Corporate or Educational Presentations
Financial (Remote Servers/User Control)
Call Centers
Industrial (Long-Range Workstation Isolation)
Information Terminals/Kiosks
Airport Installations (Air Traffic Control/Passenger Information)
KVM Extension where Exceptional Quality of Signal is Crucial
Medical (Remote Operation Away from Sensitive/Magnetic Equipment)
Recording (for large Studios where Editing/Mixing Stations are Compact and/or Require Complete Silence)

Diagram:

Model: SFX-4P-M-S Specifications
Video
Format	DVI-D Single Line
Maximum Pixel Clock	165 MHz
Input Interface (TX)	(4) DVI-D 29-pin female
Output Interface (RX)	(4) DVI-D 29-pin female
Resolution	Up to 1920 x 1200 @60Hz
DDC	5 volts p-p(TTL)
Input Equalization	Automatic
Input Cable Length	Up to 20 ft.
Output Cable Length	Up to 20 ft.
USB
Signal Type	EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
Input Interface (TX)	(1) USB Type B (Female)
Output Interface (RX)	(4) USB Type A (Female)
Audio
Signal Type	Stereo Audio
Bandwidth	15MHz, 0dB
Impedance	10K Ohm
Connector	3.5mm Stereo Mini Female
RS232
Input Interface (TX)	DB9 Female
Output Interface (RX)	DB9 Male
Speed	Up to 115 Kbps
Operating Temp.	0-55 °C (32-131 °F)
Storage Temp.	-20-85 °C (-4-185 °F)
Humidity	Up to 95%
Fiber Type	Duplex, multi mode
Connector Type	Duplex LC
Wavelength	1310 nm/1550 nm (Dual wavelength)
Data Rate	2x2.5 Gbps (2.5 Gbps per single wavelength)
Transmission Power	-5 dB Min.
Receiver Sensitivity	-21 dB Max
Distance	500 m Max.
Other
Power	Internal 100-240 VAC
Dimensions	17 in W x 1.70 in H x 7 in D
Weight	8 lb
Operating Temp.	0-55 °C (32-131 °F)
Storage Temp.	-20-85 °C (-4-185 °F)
Humidity	Up to 95%
