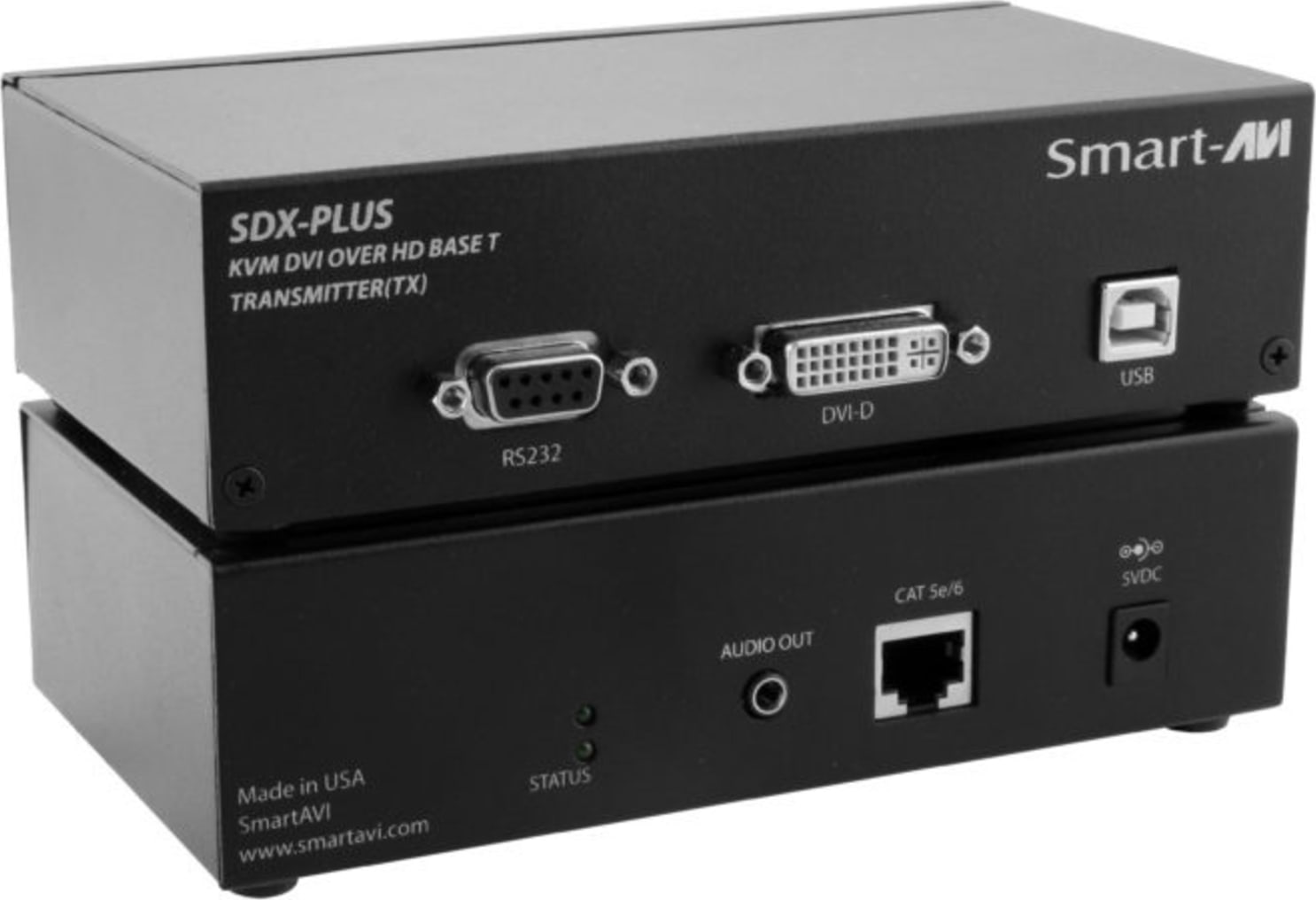

Smart-AVI SDX-Plus-S DVI-D, USB, RS-232 Extender

Name: Smart-AVI SDX-Plus-S DVI-D, USB, RS-232 Extender
Brand: Smart-AVI
SKU: Smart-AVISDX-Plus-S
Price: 730.44 USD
Availability: InStock

0 reviews | UPC: 638936931985 | Model: Smart-AVI SDX-PLUS-S

Images (6)

Compare

HDBaseT DVI-D , USB 1.1 , RS232, CAT5/5e/6, Extender Includes: [SDX-Plus-TX, SDX-Plus-RX, 2 X (PS5VD4A)]

Supports up to 1920x1200 digital video resolution.
Data recovery for digital video
Extends DVI-D up to 400 feet (120m) from the source
Stereo audio support
Automatic DDC Learning
USB Keyboard and Mouse
Uncompressed Video
Plug and play
RS-232 extension allows for remote control of displays
External power adapter for transmitter and receiver unit

View Product Details

List Price: $899.00

Your Price: $730.44

Sign-in for EDU Pricing!

Available to Order

Check Lead Time

View Payment Options

Request Quote

Items in This Series



Product	Smart-AVI SDX-PLUS-S HDBaseT DVI-D , USB 1.1 , RS232, CAT5/5e/6, Extender Includes: [SDX-P ...	Smart-AVI DPX-1P-Plus Extend DP Video, USB Keyboard/Mouse, Audio, and RS232 up to 328 ft ( ...	Aten CE920 USB DisplayPort HDBaseT 2.0 KVM Extender 4K at 330ft	Aten UCE3250 4-Port Cat 5 USB 2.0 Extender up to 165 ft.	Aten UEH4102 4 Port USB2.0 cat5 Extender over LAN	Aten VE883K1 4K HDMI Optical Extender (985 ft)	Smart-AVI SDX-2P-S HDBaseT Dual DVI-D , USB 1.1, Dual RS232 , Audio, CAT5/5e/6 Extender In ...	Smart-AVI AR-100S RS-232 and Stereo Audio CAT5 Extender. Includes: [AR-TX100, AR-RX100, 2 ...	Smart-AVI LDX-2PS HDBaseT Dual DVI-D , USB 1.1, Dual RS232 , Audio over CAT5/5e/6 Extender ...	Smart-AVI LDX-4PS HDBaseT Quad DVI-D , USB 1.1 , RS232 , Audio over CAT5/5e/6 Extender. In ...	Smart-AVI LDX-PLUS-S HDBaseT DVI-D , USB 1.1 , RS232, and Audio over CAT5/5e/6 Extender. I ...	Smart-AVI LDX-S HDBaseT DVI-D , RS232 over CAT5/5e/6 Extender. Includes: [LDX-TX, LDX-RX, ...	Smart-AVI SFX-M-S DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Extender Up to ...	Smart-AVI MINI-XTS VGA with Audio Extender over CAT5e/6. Includes: [Mini-XT-TX, Mini-XT-RX ...	Smart-AVI RK8-HDX-POE-S 8-Port Rackmount HDBaseT HDMI and IR Extender Transmitter over a S ...	Smart-AVI DVX-200PS DVI-D/PC CAT5/5e/6 STP Extender. Includes: [DVX-TX200P, DVX-RX200, CCD ...	Smart-AVI DVS-200S DVI-D Point-to-Multipoint CAT5/5e/6 STP Extender, 2-Port Transmitter wi ...	Smart-AVI DVX-4PS Four DVI-D, USB 1.1, Audio, RS-232, CAT5/5e/6 STP Extender. Includes: [D ...	Smart-AVI HDX-LXS HDBaseT HDMI, IR, CAT5/5e/6 Extender, Includes: [HDX-LXTX, HDX-LXRX, 2 x ...	Smart-AVI HFX-S HDMI 2K/4K Multimode Fiber Extender. Includes: [HFX-TX, HFX-RX, 2 X (PS5VD ...	Smart-AVI HDX-W100S HDMI, IR, CAT5/5e/6 Wall Plate Extender. Includes: [HDX-W100TX, HDX-W1 ...	Smart-AVI HDX-POES HDBaseT HDMI and IR Extender over a Single Cat5e/6 Cable Includes: [HDX ...	Smart-AVI USB2NANO-S USB 2.0/1.1 Extender Link. Includes: [USB2NANO-TX, USB2NANO-RX]	Smart-AVI SFX-4P-M-S Quad DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Extende ...	Smart-AVI DVX-2PS Dual DVI-D, USB 1.1, Audio, RS-232, CAT5/5e/6 STP Extender. Includes: [D ...	Smart-AVI SDX-S HDBaseT DVI-D , RS232, CAT5/5e/6, Extender Includes: [SDX-TX, SDX-RX, 2 x ...	Smart-AVI SFX-2P-M-S Dual DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Extende ...	Smart-AVI SDX-4PS HDBaseT Quad DVI-D , USB 1.1 , RS232 , Audio, CAT5/5e/6 Extender. Includ ...	Smart-AVI SWP-T10 HDMI, VGA, Stereo Audio, IR POE Extender with Integrated Scaler and Conv ...	Smart-AVI XTPROS UXGA/YUV/YC, Audio, RS-232, IR CAT5 Extender. Includes: [XTP-TX, XTP-RX, ...	Smart-AVI HDX-400-PROS HDMI Point-to-Multipoint CAT5/5e/6 STP Extender, 4-Port Transmitter ...	Smart-AVI FDX-AVPRO DVI-D, Stereo Audio, Singlemode Fiber Extender Up to 6 miles. Includes ...	Aten VE44PB 4-Output PoH/PoE Power Injector	Aten KE6940AKIT01 USB Single Link DVI-I Dual Display KVM over IP w/Audio and Serial (1 TX ...	Aten KE6900AKIT01 USB Single Link DVI-I Single Display KVM over IP w/Audio and Serial (1 T ...	Aten UCE32100 USB2.0 Cat5 Extender with 4-port Hub	Smart-AVI FVX-3000-PRO DVI-I (DVI/VGA), Stereo Audio, USB 1.1, RS-232, Multimode Fiber Ext ...	Smart-AVI FDX-3000-PRO DVI-D, Stereo Audio, USB 1.1, RS-232, Multimode Fiber Extender Up t ...
Price
In Stock	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Control your displays or devices remotely

The Smart-AVI SDX-Plus-S DVI-D, USB, RS-232 Extender is capable of sending a DVI-D signal up to 400 feet over a single conventional and inexpensive Cat5e/6 cable. Its technology is superior to older DVI extenders that require special Cat6 shielded cable to go a short distance.

The SDX-Plus-S also has stereo audio support, as well as USB keyboard-mouse and RS-232 extension, giving you the ability to control your displays or devices remotely.

Applications

Security
PC Networking
Conference Center Systems
Point of Sale
Camera Surveillance
Video Phone
Control Room Systems
Recording Studio
PC KVM Extension

Application Diagram:

Model: SDX-Plus-S Specifications
Description	DVI-D, USB, RS-232 Extender
VIDEO
Format	DVI-D Single Line
Maximum Pixel Clock	165 MHz
Input Interface (TX)	(1) DVI-D 29-pin female
Output Interface (RX)	(1) DVI-D 29-pin female
Resolution	Up to 1920 x 1200 @60Hz
DDC	5 volts p-p (TTL)
Input Equalization	Automatic
Input Cable Length	Up to 20 ft.
Output Cable Length	Up to 20 ft.
USB
Signal Type	OHCI/UHCI (USB 1.1)
Input Interface (TX)	(1) USB Type B (Female)
Output Interface (RX)	(2) USB Type A (Female)
RS-232
Input Interface (TX)	DB9 (Female)
Output Interface (RX)	DB9 (Female)
Speed	@ 115 Kbps
AUDIO
Frequency Response	30KHz to 80KHz
Audio Input Interface (TX)	(1) 3.5 mm (Female)
Audio Output Interface (RX)	(1) 3.5 mm (Female)
OTHER
Power	External 100-240 VAC/5VDC3A @20W
Dimensions	5.125 in W x 1 in H x 3.625 in D
Weight	0.5 lb
Operating Temp.	0-55 °C (32-131°F)
Storage Temp.	-20-85 °C (-4-185 °F)
Humidity	Up to 95%

General Attributes
Warranty	1 YEARS
Product Weight	0.5 LBS
Shipping Weight	1 LBS
Warranty Details	All Smart-AVI products are warranted to be in good working condition for a period of one (1) year from the date of purchase.
UPC	638936931985
Product Height	1 IN
Product Length	3.625 IN
Product Width	5.125 IN
Shipping Height	1.00 IN
Shipping Length	3.63 IN
Shipping Width	5.13 IN
Country of Origin	United States
