The ideal solution for extending DVI-D signals to remote locations

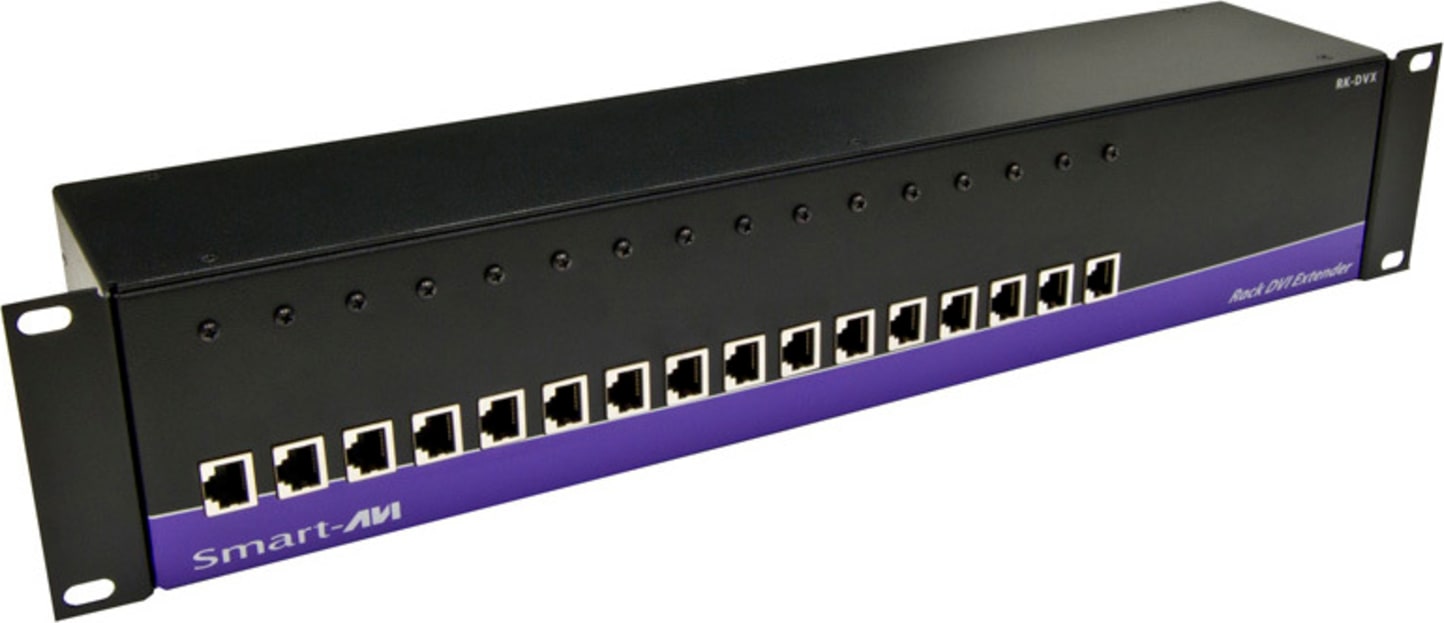

The Smart-AVI RK-DVX-RX16S Powered Rack / Chassis with DVI-D CAT5/5e/6 STP Receiver (16 Card Package) is the ideal solution for extending DVI-D signals to remote locations up to 225 feet away. It is the ideal way to extend up to 16 workstation computers from one location to another location or various locations. It is fully compatible with Mac, PC, and Linux standards. Up to 16 displays can be extended easily from a rack without the complication or expense of multiple extenders.

Rather than buy multiple extenders for rack components, and having to find power strips or numerous power outlets for the adapters, the SmartAVI rack series of extenders allows for up to 16 inputs and 16 outputs from a single rack device. The extender comes in three configurations: four inputs and four outputs, eight inputs and eight outputs, and 16 inputs and 16 outputs. The extender can achieve the full output distance of 225 feet when using a Cat6 23AWG STP cable.

Applications

• Industrial Work Areas: In industrial work areas that may be too harsh for a workstation computer, the RK-DVX200 can consolidate the computers into a safe location.
• Information Kiosks/Displays: As with most information booths and kiosks, there is a risk of damage or theft. The RK-DVX200 is the best way to secure computer hardware by consolidating it to a secure location away from public access.
• Digital Signage: For easy access to a digital signage network, the RK-DVX200 is an excellent deployment option. With the RK-DVX200, up to 16 digital signage devices can be centralized and secured from public access.
• Medical: In the medical field where sensitive electronic devices are frequently used, isolating workstation computers can be a matter of safety. The RK-DVX200 allows the workstation computers to be housed in a central location, away from those sensitive devices.

Application Diagram:
