Supports high resolutions up to 1080p, 2K and 1920x1200 with no loss of picture clarity

The Smart-AVI MXC-DX032X08S DVI-D Matrix Switcher supports DVI-D operation at the maximum TDMS rate of 2x1.65 Gb/s. It is capable to distribute and route any 32 DVI-D input sources onto 8 DVI-D display devices and supports high resolutions up to 1080p, 2K and 1920x1200 with no loss of picture clarity and no ghosting of images. Moreover, the DX032X08S is automatically equalized and can compensate for the long-distance by reducing the number of additional input signals.

EDID Emulation

Each input incorporates our unique “SmartEDID” programmable technology capable of learning video resolutions, audio settings, and 3D data. The EDID memory of each display is stored in single flash memory, giving users the freedom to choose any EDID and emulation of any display. MXCore-DX Series enables DVI-D sources to continuously read the EDID of a monitor with full emulation at any given time.

The EDID management allows learning and saving of up to 100 displays, including audio. The MXCore-DX Series can learn EDID from any display device provided.

HDMI matrix switch made easy

Users can locally switch between sources via the easy-to-operate front panel, or they can do so remotely through an RS-232, IR, or TCP/IP connection. The MXC-DX16X32S can be controlled by SmartAVI’s very own Windows®-based manager software, a cornerstone of all SmartAVI products. Controlling the MXC-DX16X32S is effortless with SmartAVI’s Windows®-based SmartControl software. Users can assign a unique name to each port on the Matrix along with a display for specific project requirements. While all the functions of the Matrix are available locally on the front panel, SmartControl allows customization of all the Matrix’s functions.

Flexible control

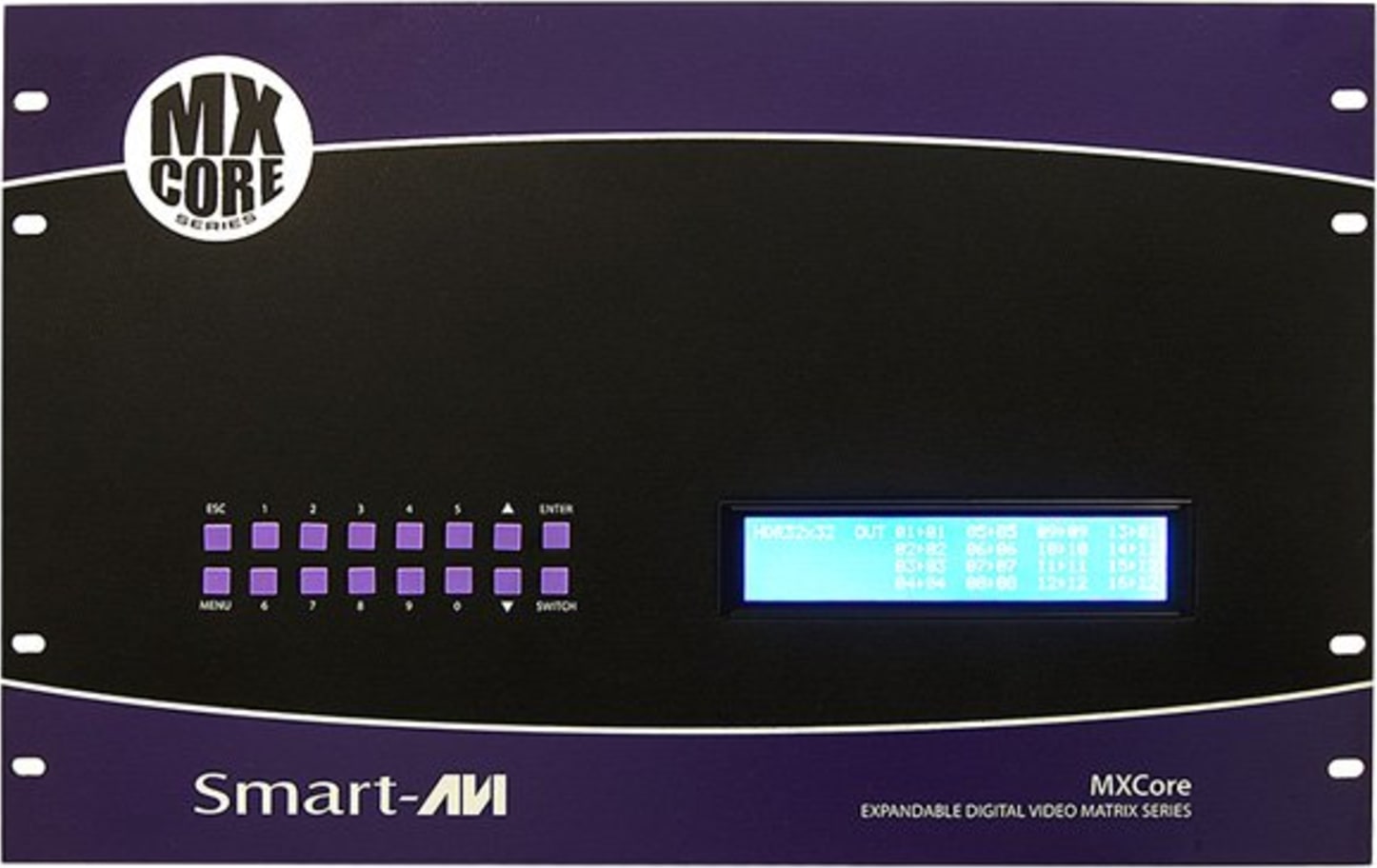

MXCore-DX Series by SmartAVI can be controlled from the easily accessible LCD front panel and keypad that allows users to determine which inputs are connected to which outputs.

RS232 - Controlling the MXCore-DX is effortless with SmartAVI’s Windows®-based SmartControl software. Users can assign a unique name to each port on the Matrix along with a display for specific project requirements.

While all the functions of the Matrix are available locally on the front panel, SmartControl allows customization of all the Matrix’s functions.

IR -Many system professionals prefer the IR control interface because it offers greater flexibility to manage the MXCore-DX at a distance. In some cases, the displays will not be visible from the Matrix, which would then make it necessary to control the Matrix with Infrared command signals.

TCP/IP - If users need to make changes instantly but can’t be there in person, the Net-IP-Pro control module is the solution. SmartAVI’s optional Net-IP-Pro module is effective for real-time remote control management. Simply connect the Net-IP-Pro module to the MXCore-DX Matrix while connected to the Internet and the Matrix can be controlled from anywhere in the world.

Application diagram:
