Capable of receiving 4K (3840x2160 @ 30Hz) resolution HDMI

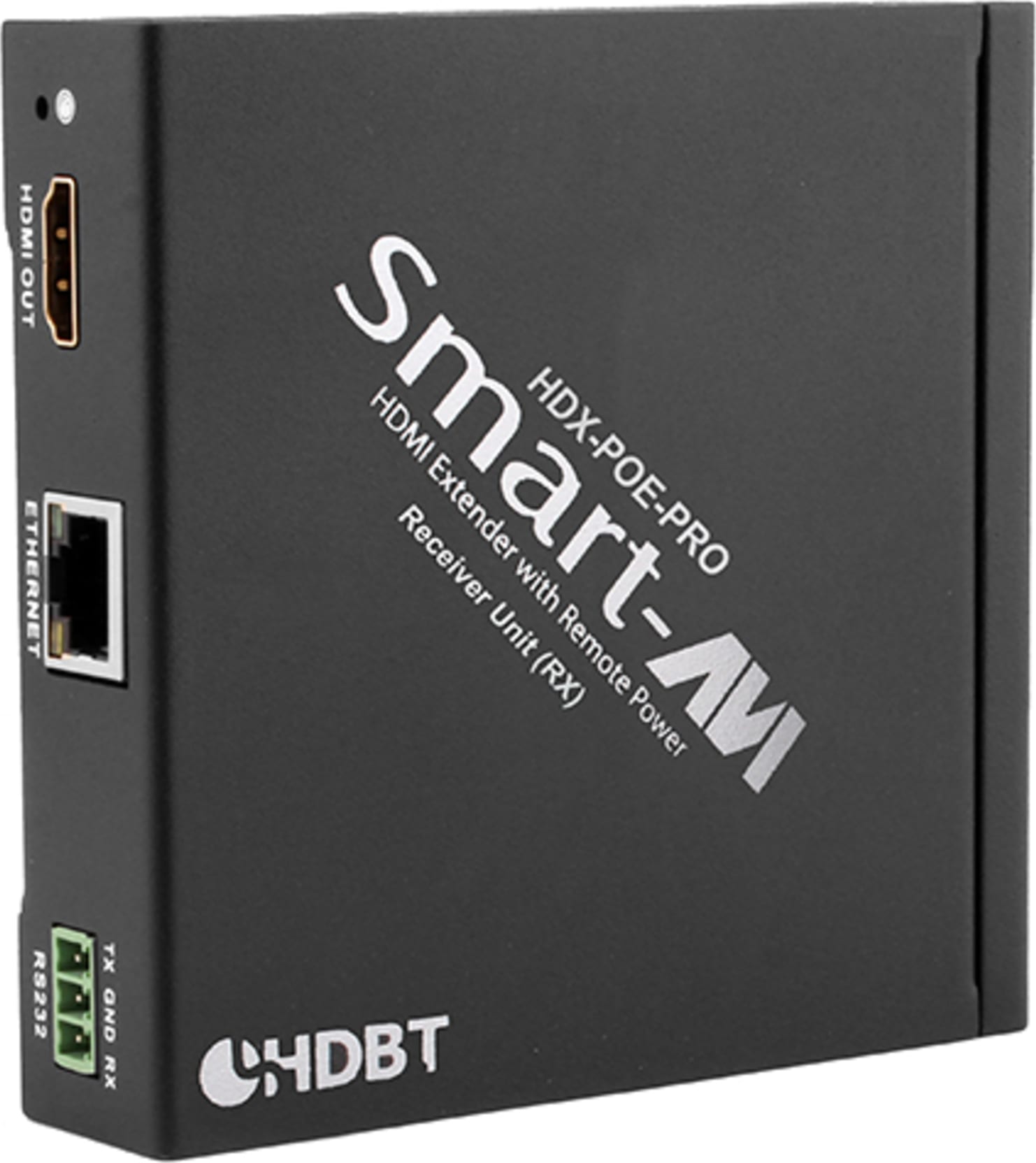

The Smart-AVI HDX-POE-PRO-RX is an HDMI extender receiver unit for HDX-POE-PRO capable of receiving 4K (3840x2160 @ 30Hz) resolution HDMI, IR remote control, RS-232 command, and Ethernet internet signals to output devices up to 328 ft (100m) from a signal source device. Outfitted with HDBaseT technology, the HDX-POE-PRO-RX is capable of POE (Power-over-Ethernet) energy efficiency.

By connecting the HDX-POE-PRO-RX to a SmartAVI HDBaseT solution (like HDR-8x8-XT), the HDX-POE-PRO-RX can operate without the need for external power; this can effectively cut costly energy consumption and save space for other devices in need of external power. It includes a 1-year warranty.

How to set up the HDX-POE-PRO-RX

The HDX-POE-PRO-RX is a plug-and-play solution, easily connecting to SmartAVI HDBaseT devices and integrating seamlessly into existing AV setups. Simply connect the receiver to HDBaseT devices via CAT5e/6/7 cables, which will remotely power the unit without the need for an additional external power supply.

Applications:

The Smart-AVI HDX-POE-PRO-RX pairs well with the HDR-8x8-XT 8x8 HDMI matrix. It can send 4K signals to displays of any size, and excels in large venues like sporting arenas, multiplex cinemas, convention centers, nightclubs, hotel lobbies, school auditoriums, and more.

• Convention centers
• Sports arenas
• Transportation hubs (airpots, train stations)
• Education Facilities (auditoriums, lecture halls)
• Retail spaces
• Industrial facilities
• Control rooms
• Military command centers
• Data centers and server rooms
• Multiplex cinemas
• Nightclubs
• Concert halls
• Production studios

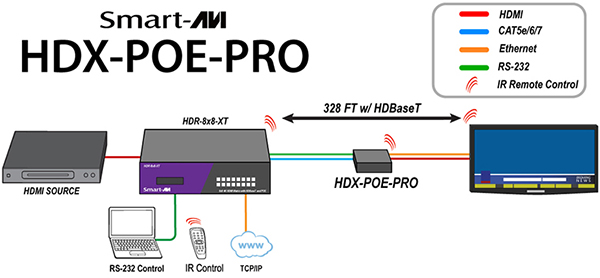

Application diagram:
