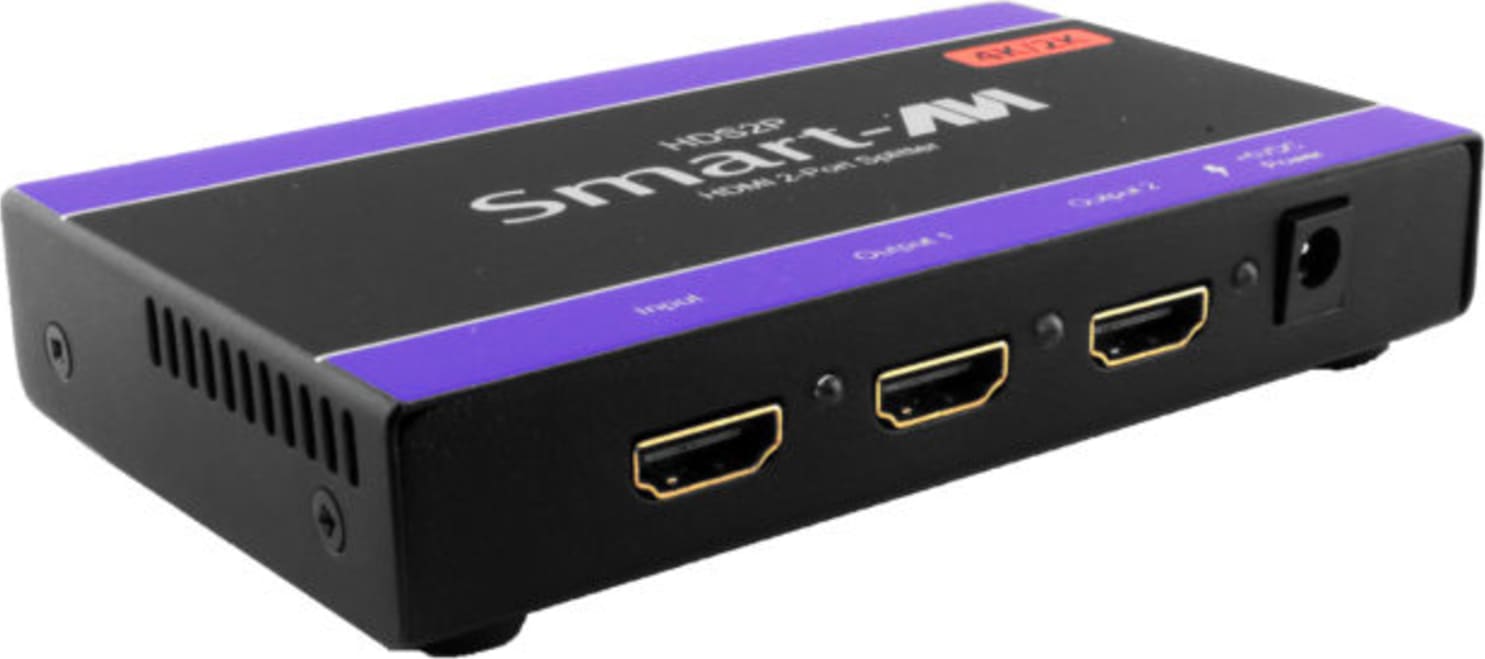

Smart-AVI HDS2PS - 2-Port 4K/2K HDMI Splitter

Name: Smart-AVI HDS2PS - 2-Port 4K/2K HDMI Splitter
Brand: Smart-AVI
SKU: Smart-AVIHDS2PS
Price: 161.69 USD
Availability: InStock

0 reviews | UPC: 638936931329 | Model: Smart-AVI HDS2PS

Compare

HDMI 2-Port Splitter. Includes: [HDS2P, PS5VD2A]

Ultra HD | 4K (4096x2160) Resolution and Full 3D
One HDMI 1.4 input signal split to two HDMI 1.4 sink devices
HDCP 1.3 protocol compliant
Supports CEC
Supports deep color 30bit, 36bit
Supports Blu-ray players
Digital audio format, with DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Supports signal retiming
Input up to 50 feet AWG26 HDMI 1.3 standard cable length
Output up to 80 feet AWG26 cable length
No loss of quality
Hardware-only solution
1-year warranty

View Product Details

List Price: $199.00

Your Price: $161.69

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Smart-AVI HDS2PS 2-Port 4K/2K HDMI Splitter

2-Port 4K/2K HDMI Splitter

Ultra HD | 4K (4096x2160) Resolution and Full 3D
One HDMI 1.4 input signal split to two HDMI 1.4 sink devices
HDCP 1.3 protocol compliant

The Smart-AVI HDS2P 2-port 4K/2K HDMI Splitter gives users the ability to take a single HDMI input and route it to two displays with no loss of signal quality and a hardware-only implementation. There’s no need for multiple source devices for multiple HD displays when using this splitter. The HDS2P splitter delivers up to 10.2 Gbps data throughput and supports HDMI features like 3D video and 4K resolution & audio.

The HDS2P is the easiest and most cost-effective way to get a stunning HD signal to two displays simultaneously and instantly.

Applications

Restaurant/Bar
Home Entertainment
Wall Displays
Digital Media
Airports
Dealer Rooms
Control Rooms
Audio/Visual Presentations
Shopping Centers
Security
Point-of-Sale
Hotels/Resort

Diagram:

Model: HDS2PS Specifications
Description	2-Port 4K/2K HDMI Splitter
Video
HDMI version	HDMI 1.4a
HDCP version	HDCP1.3
HDMI resolution	Full HD 1080p (1920x1080 at 60Hz), 3D and 4Kx2K resolution
Support video color format	24bit/deep color 30bit,36bit
Support audio format	DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth	Up to 10.2 Gbps (all channel)
Input/Output TMDS signal	0.5~1.5Volts p-p(TTL)
Input/Output DDC signal	5Volts p-p (TTL)
Other
Input cable distance	≤15m HDMI AWG26
Output cable distance	≤25m AWG26 HDMI 1.3 standard cable
Max working current	1A.
Power adapter format	Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range	(-15 to +55°C)
Operating Humidity range	5 to 90%RH (No Condensation)
