Ideal for large venues with multiple 4K-ready screens

The Smart-AVI HDR-8x8-XT is an 8x8 matrix switch, enhanced with HDBaseT technology. Users can send eight ultra-HD video sources to eight local displays over HDMI, as well as eight remote displays over CAT5e/6/7 cables up to 328 ft away when paired with receiver units (supports HDX-POE and HDX-POE-PRO*, each sold separately). It is ideal for large venues with multiple 4K-ready screens, the HDR-8x8-XT offer unmatched performance and quality over considerable distances. Arenas, movie theaters, concert venues, nightclubs, event halls, convention centers, and more are all perfect environments for the HDR-8x8-XT.
  Doubling as a transmitter extension unit, the HDR-8x8-XT sends 4K (3840x2160) resolution video further that standard matrix units and effectively cuts costs by utilizing inexpensive CAT5e/6/7 cabling. It also routes internet to remote smart TVs over HDBaseT and power to connected receivers through POE (Power-over-Ethernet).

Easy and flexible to control

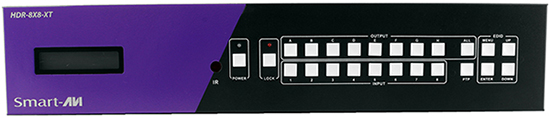

Controlling the HDR-8x8-XT is both easy and flexible. The matrix features simple front-panel buttons for direct switching, support for RS-232 commands, and bi-directional IR remote control. The HDR-8x8-XT can also be controlled using a TCP/IP web console accessible by PC when connected to the matrix over Ethernet. No matter the application or environment, the HDR-8x8-XT is always accessible and in command.

Featuring HDBaseT Power-over-Ethernet support, the HDR-8x8-XT powers connected receiver units (like the HDX-POE) through CAT5e/6/7 cables, cutting costs and power consumption. It also features EDID learning and HDCP management for easy set-up. For powerful matrix routing without the hassle of complicated extension, turn to HDR-8x8-XT 4K 8x8 HDBaseT matrix today.

Delivering the pinnacle in image clarity and performance

The HDR-8x8-XT is ideal for large-scale screens and projectors, 4K ultra-HD video content is quickly gaining ground as the go-to in visual presentation. Outfitted with 4K-ready HDMI connectors, the HDR-8x8-XT lives up to its label, delivering the pinnacle in image clarity and performance. At 3840x2160, 4K resolution is terrific for displaying elaborate dioramas and scenes of all kinds. From movies to live events, 4K video enthralls an audience and brings what they are watching to life in vivid detail!

Applications for HDR-8x8-XT:

The HDR-8x8-XT excels at routing 4K signals in large venues and extended AV setups. Concert halls, sporting arenas, multiplex cinemas, convention centers, lecture halls, and more are great places to set up an HDR-8x8-XT. Perfect for modest HDTVs and enormous jumbotron screens, the HDR-8x8-XT's 4K output ensures the highest picture quality on any display.

• Sporting arenas
• Multiplex cinemas
• Concert halls
• Nightclubs
• Convention centers
• Lecture halls
• Auditoriums
• Hotel lobbies
• TV stations
• Retail electronics stores

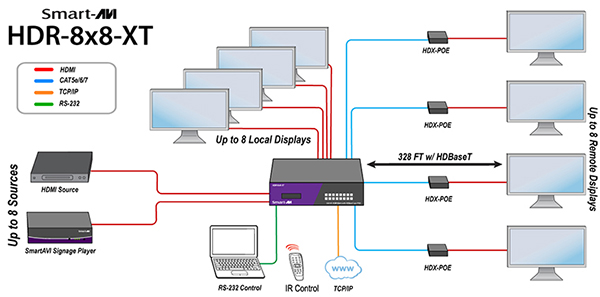

Application diagram:
