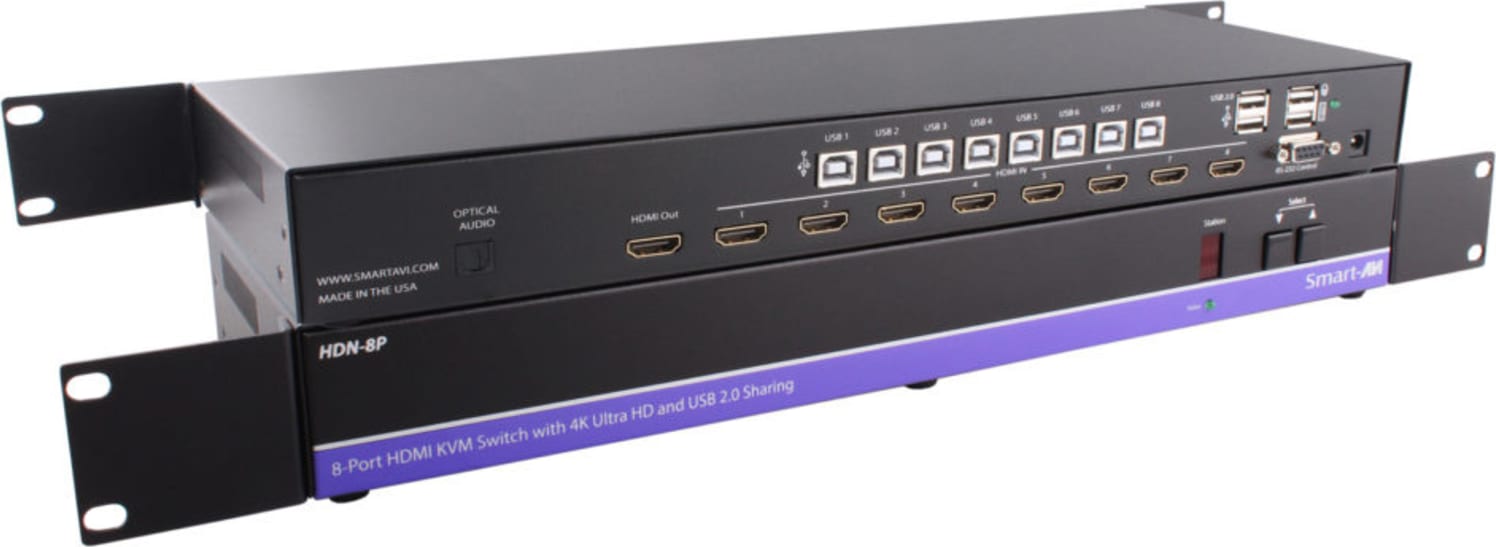

Smart-AVI HDN-8P-S - 8-Port HDMI KVM Switch

Name: Smart-AVI HDN-8P-S - 8-Port HDMI KVM Switch
Brand: Smart-AVI
SKU: Smart-AVIHDN-8P-S
Price: 649.19 USD
Availability: InStock

0 reviews | UPC: 643765529982 | Model: Smart-AVI HDN-8P-S

Compare

8-Port HDMI KVM Switch with 4K support, USB 2.0 and Keyboard/Mouse Emulation. Includes: [HDN-8P, PS5VD4A]

Switches eight Ultra HD sources to one Ultra HD display.
Supports resolutions up to 4K Ultra HD (3820x2160 @30Hz), including 1080p (@60Hz) full HD
Uses HDMI 1.4 ports
Supports 3DTV pass through
Zero pixel loss with TMDS signal correction
Supports all USB 2.0 devices, including keyboard and mouse
Control Sun, Mac or PC workstations from one KVM console
Rack mountable in a standard 19 inch rack
Flash upgradable firmware
Supports HDCP
Supports LPCM 7.1, Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio
Supports control via RS-232
Hot key commands for quick channel selection
Independent (asynchronous) switching of KVM and peripheral USB ports. Users can scan a document and save it in another computer
Complete keyboard emulation for errorfree booting
Front panel keys for manual switching
Supports DVI sources/display with DVI-to-HDMI adaptors (not included)

View Product Details

List Price: $799.00

Your Price: $649.19

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Smart-AVI HDN-8P-S 8-Port HDMI KVM Switch with 4K support, USB 2.0 and Keyboard/Mouse Emul ...	Smart-AVI DPN-4DUO-S 4-Port Dual Head DisplayPort KVM Switch with USB 2.0 and Stereo Audio ...	Smart-AVI SPS-1000S 8-Port Multi-Platform Presentation Switcher. Includes: [SPS-1000, DL12 ...	Smart-AVI HKM-02S 2-Port HDMI KVM Switch with USB 2.0 and Stereo Audio support. Includes: ...	Smart-AVI HKM-04S 4-Port HDMI KVM Switch with USB 2.0 and Stereo Audio support. Includes: ...	Smart-AVI DPSMT-2S 2-Port single-head DP to 2xHDMI Secure KVM w/ audio	Smart-AVI DPSMT-2S-P 2-Port single-head DP to 2xHDMI Secure KVM w/ audio and CAC	Smart-AVI DPMST-4S 4-Port single-head DP to 2xHDMI Secure KVM w/ audio	Smart-AVI DPMST-4S-P 4-Port single-head DP to 2xHDMI Secure KVM w/ audio and CAC	Smart-AVI DV-SW8-P-S 8-Port DVI-I Dual Link Switch with Audio. Includes: [DV-SW8-P, CCRS23 ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Smart-AVI HDN-8P-S 8-Port HDMI KVM Switch with 4K Support

8-Port HDMI KVM Switch

Supports 3DTV pass-through
Rack-mountable in a standard 19-inch rack
Supports all USB 2.0 devices, including keyboard and mouse

The Smart-AVI HDN-8P-S 8-Port HDMI KVM Switch with 4K Support utilizes SmartPreview technology which enables simultaneous picture-in-picture monitoring of the other sources connected to the switch. This helpful technology allows users to keep tabs on the other connected workstations without constantly needing to switch back and forth. The HDN-8P-S multi-platform KVM switch is used for managing eight computers through a single HDMI monitor, USB keyboard, USB mouse, and other USB 2.0 devices. This is the first KVM switch on the market that features support for 4K Ultra HD (3840x2160 @30Hz or 4Kx2K @60Hz YUV4:2:0) workstations.

USB emulation technology

The USB emulation technology offered by HDN-8P-S enables immediate hotkey source switching through a remote USB keyboard and mouse. HDN-8P-S is HDMI 1.4 and HDCP compliant, which supports 4K Ultra HD resolutions and 12-bit deep color at 1080p @60Hz. RS-232 control and front panel switching are supported. The switch also transmits digital audio.

Applications

Take Control of your home theater The HDAV-TXS has been carefully designed to be compact and aesthetically pleasing for simple and professional home theater integration. While most home theater systems are relatively compact in component placement, the HDAV-TXS makes extending your video and audio signals up to 1,000 feet possible; this is useful in a design that calls for the home theater devices to be set up in a different location, away from the viewing area.

Server Collocation
Digital Signage
Education
Airports
Dealer Rooms
Control Rooms
Audio/Visual Presentations
Shopping Centers
Hotels/Resorts
KVM Switches

Diagram

Model: HDN-8P Specification
Video
Format	HDMI 1.4
Maximum Pixel Clock	300 MHz
Input Interface	(8) HDMI (female)
Output Interface	(1) HDMI (female)
Resolution	Up to 4Kx2K (3840x2160 @30Hz) or 4Kx2K @60Hz YUV4:2:0, 1080P @60Hz and 1080P 3D @60Hz
DDC	5 volts p-p (TTL)
Input Equalization	Automatic
Input Cable Length	Up to 20 ft.
Output Cable Length	Up to 20 ft.
USB
Signal Type	USB 2.0, 1.1, and 1.0 w/ internal hub
Input Interface	(8) USB Type B
Output Interface	(2) USB 1.1 Type A for keyboard and mouse (2) USB 2.0 Type A Transparent
Control
Front Pane	Tactile Switches
RS-232	Via Control @ 9600 bps
Hot keys	Via Keyboard
Emulation	Keyboard and mouse only
Other
Power	External 100-240 VAC/ 5VDC4A @ 20W
Consumption	20 W (Max)
Dimensions	1.75” H x 6.25” D x 14.75” W
Weight	3.5 lbs
Approvals	UL, CE, ROHS Compliant
Operating Temp.	-5 to +35°C(+23 to +95°F)
Storage Temp.	-4-185 °F (-20-85 °C)
Humidity	5 to 90%RH (No Condensation)

General Attributes
Warranty	1 YEARS
Product Weight	3.5 LBS
Warranty Details	All Smart-AVI products are warranted to be in good working condition for a period of one (1) year from the date of purchase.
Product Height	1.75 IN
Product Length	6.25 IN
Product Width	14.75 IN
Shipping Height	1.75 IN
Shipping Length	6.25 IN
Shipping Width	14.75 IN
Country of Origin	United States
