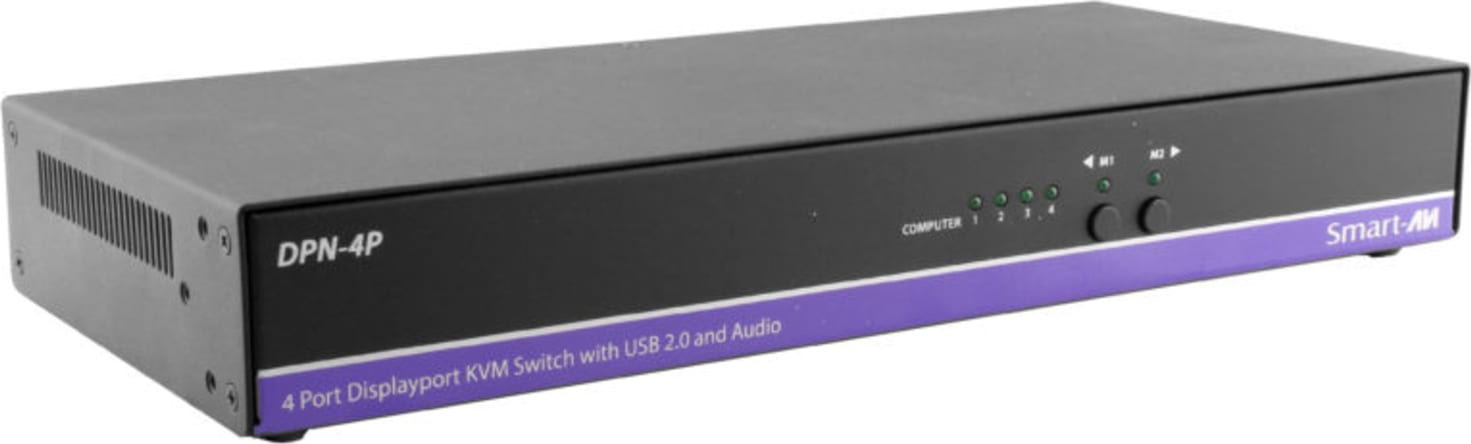

Smart-AVI DPN-4PS - 4-Port DisplayPort KVM Switch with USB 2.0 and Front Panel Push Buttons

Name: Smart-AVI DPN-4PS - 4-Port DisplayPort KVM Switch with USB 2.0 and Front Panel Push Buttons
Brand: Smart-AVI
SKU: Smart-AVIDPN-4PS
Price: 446.06 USD
Availability: InStock

0 reviews | Model: Smart-AVI DPN-4PS

Compare

4-Port DisplayPort KVM Switch with USB 2.0 and Stero Audio Support. Includes: [DPN-4P, PS5VD4A]

Switch KVM control on four connected computers from one workstation with a DisplayPort monitor.
Supports resolutions up to 3840x2160 (@30Hz)
DisplayPort 1.2 compliant
Zero pixel loss with TMDS signal correction
Supports all USB 2.0 devices, including keyboard and mouse
Supports Windows, Mac and Linux
Rack mountable in a standard 19 inch rack
Supports control via RS-232
Hot key commands for quick channel selection
Independent (asynchronous) switching of KVM and peripheral USB ports. Users can scan a document and save in another computer
Complete keyboard emulation for error free booting
Front panel keys for manual switching
HDMI and DVI supported with adaptors, backwards compatible with prior DisplayPort versions
1-year warranty

View Product Details

List Price: $549.00

Your Price: $446.06

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Smart-AVI DPN-4PS 4-Port DisplayPort KVM Switch with USB 2.0 and Stero Audio Support. Incl ...	Smart-AVI SDHN-4D-P 4-Port Dual-head Secure Pro DP to HDMI KVM Switch with KB/Mouse USB em ...	Smart-AVI DSK-2DS 2-Port DVI USB KVM Switch with Stereo Audio and Microphone support. Incl ...	Smart-AVI SDPN-2D 2-Port Dual-head Secure DP KVM Switch with KB/Mouse USB emulation	Smart-AVI HDN-4Duo-S 4-Port Dual Head HDMI KVM Switch with 4K support, USB 2.0 and Keyboar ...	Smart-AVI HDN-4QuadS 4-Port Quad Head HDMI KVM Switch with 4K support, USB 2.0 and Keyboar ...	Smart-AVI UHDN-4P-DUOS 4-Port, Dual Head HDMI 4K-60Hz KVM Switch. Includes: [UHDN-4P-Duo a ...	Smart-AVI UHDN-4P-QUADS 4-Port, Quad Head 4K-60Hz KVM Switch. Includes: [UHDN-4P-Quad and ...	Smart-AVI DPN-4QUAD-S 4-Port Quad Head DisplayPort KVM Switch with USB 2.0 and Stereo Audi ...	Smart-AVI SDHN-2D-P 2-Port Dual-head Secure Pro DP to HDMI KVM Switch with KB/Mouse USB em ...	Smart-AVI SDVN-8S-P 8-Port Single-head Secure Pro DVI-I KVM Switch with KB/Mouse USB emula ...	Smart-AVI SDVN-4S 4-Port Single-head Secure DVI-I KVM Switch with KB/Mouse USB emulation	Smart-AVI SDVN-8D-P 8-Port Dual-head Secure Pro DVI-I KVM Switch with KB/Mouse USB emulati ...	Smart-AVI SDPN-4S-P 4-Port Single-head Secure Pro DP KVM Switch with KB/Mouse USB emulatio ...	Aten CS1182D 2 Port Single Display DVI Secure KVM with PP 3.0	Aten CS1182DP 2 Port Single Display DisplayPort Secure KVM with PP 3.0	Aten CS1182H 2 Port Single Display HDMI Secure KVM with PP 3.0	Aten CS1184H 4 Port Single Display HDMI Secure KVM with PP 3.0	Aten CS1148D 8-Port USB DVI Dual Display Secure KVM Switch (PSS PP v3.0 Compliant)	Aten CS1148DP 8 Port Dual Display DisplayPort Secure KVM with PP 3.0	Aten CS1188D 8 Port Single Display DVI Secure KVM with PP 3.0	Aten CS1148H 8 Port Dual Display HDMI Secure KVM with PP 3.0	Aten CS1142DP 2 Port Dual Display DisplayPort Secure KVM with PP 3.0	Aten CS1142D 2 Port Dual Display DVI Secure KVM with PP 3.0	Aten CS1188DP 8 Port Single Display DVI Secure KVM with PP 3.0	Aten CS1142H 2-Port Dual Display HDMI Secure KVM with PP 3.0	Aten CS1144H 4 Port Dual Display HDMI Secure KVM with PP 3.0	Aten CS1188H 8 Port Single Display HDMI Secure KVM with PP 3.0	Aten CS1942DP 2-Port USB 3.0 4K Dual Display DisplayPort KVMP Switch	Aten CS1944DP 2 Port USB3.0 4K DisplayPort Dual Display KVMP	Aten CS1144DP 4-Port Secure Dual DP KVM PP3.0	Aten CS1144D 4-Port Secure Dual DVI KVM PP3.0	Aten CM1164A KVMP 4-PORT DVI QUADINONE REPLACES CM116	Aten CM1284 4 Port HDMI Quad in One KVMP	Smart-AVI HKM-PROS 3-Port HDMI KVM Switch with USB 3.0, MHL and Stereo Audio support. Incl ...	Smart-AVI DVN-4Quad-DLS DVN-4Quad-DL Dual-Link, 4x4 DVI-D, USB 2.0, Audio Switch. Includes ...	Smart-AVI D2H-4P-QUAD-S 4-Port DisplayPort In and 4-Port HDMI Out KVM Switch. [D2H-4P-QUAD ...	Smart-AVI DVN-4Duo-DLS 4-Port Dual-Head, Dual-Link DVI-D KVM Switch. Includes: [DVN-4Duo-D ...	Smart-AVI DVN-16Pro 16-Port DVI-D KVM Switch with USB 2.0 and Stereo Audio support and Key ...	Smart-AVI D2H-4P-DUO-S 4-Port Dual Head DisplayPort In, HDMI Out KVM Switch with USB 2.0 a ...	Smart-AVI DPN-2P-S 2-port DisplayPort 4k/60 KVM Switch, Control USB 2.0 Keyboard-mouse, mi ...	Aten CL3116NX 19in wide screen 16-port LCD KVM switches	Aten CL3108NX 19in wide screen 8-port LCD KVM switches	Aten CS1964 4-Port USB3.0 4K DisplayPort triple Display KVMP Switch	Aten CL3884NW 18.5 FHD 4-Port USB HDMI Multi-View Dual Rail LCD KVM Switch	Aten CE620-NK USB DVI HDBaseT 2.0 KVM Extender	Aten US234 2-Port USB 3.0 Peripheral Sharing Device	Aten CS1844 4-Port USB 3.0 4K HDMI Dual Display	Aten CS1842 4-Port USB 3.0 4K HDMI Dual Display	Aten CS19208 8-Port USB3.0 4K DisplayPort KVM	Aten CS19216 16-Port USB3.0 4K DisplayPort KVM	Aten KE6940AIT USB Single Link DVI-I Dual Display KVM over IP Transmitter with Audio and S ...	Aten KE6900AIT USB Single Link DVI-I Single Display KVM over IP Transmitter with Audio and ...	Smart-AVI SM-QKVM4K-S 4-Port HDMI, USB 2.0 KVM Switch with Multiview Preview Screen and Au ...	Smart-AVI SM-QKVMDP-S 4-Port DP, USB 2.0 KVM Switch with Multiview Preview Screen and Audi ...	Smart-AVI SM-HDMV9X-PLUS-S 9-Port HDMI/USB Multiviewer and KVM Switch with USB 2.0 and Aud ...	Smart-AVI SM-HDMV16X-PLUS-S 16-Port HDMI/USB Multiviewer and KVM Switch with USB 2.0 and A ...	Smart-AVI SC-RM8S MUX Controller Unit. Includes: [SC-RM8 and PS5VD2A]	Smart-AVI SM-QKVM-PRO-S QuadKVMPro: 4-Port DVI-D/USB KVM Switch with Multiview Preview Scr ...	Smart-AVI SC-HUB16-S 16-Port RS232 Selctor SmartMux Communications Hub. Includes: [SC-HUB1 ...	Smart-AVI SM-HDMV-PLUS-S 4-Port HDMI/USB Multiviewer and KVM Switch with USB 2.0 and Audio ...	Smart-AVI SM-HDMV-KM-S 4-Port HDMI/USB Multiviewer and KVM Switch with Fast Switching via ...	Smart-AVI SM-HDMV-8X-S 8-Port HDMI/USB Multiviewer and KVM Switch with USB 2.0 and Audio S ...	Smart-AVI MXU-88S 8x8 HDMI/USB 2.0 Matrix Switch. Includes: [MXU-88 and PS12VD5A]
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Smart-AVI DPN-4PS 4-Port DisplayPort KVM Switch with USB 2.0 and Front Panel Push Buttons

4-Port DisplayPort KVM Switch with USB 2.0 and Front Panel Push Buttons

Supports resolutions up to 3840x2160 (@30Hz)
DisplayPort 1.2 compliant
Supports all USB 2.0 devices, including keyboard and mouse

The Smart-AVI DPN-4PS is a dedicated multi-platform KVM switch capable of managing four 4K computers through a single DisplayPort monitor, USB keyboard, USB mouse, and other USB 2.0 devices. DisplayPort is one of the latest options in screen connectivity that delivers top quality high-definition video, and this device is DisplayPort 1.2 compliant with support for screen resolutions up to 4K HD to (3840x2160 @30Hz). HDMI and DVI video connections are supported with the proper video converters, and the device is backwards compatible with prior DisplayPort versions.

The DPN-4PS provides a simplified management approach for four DisplayPort equipped computers USB 2.0 outputs for a keyboard, mouse and other USB peripheral devices. This dynamic KVM console can be controlled keyboard hot keys or RS-232 commands, as well as directly through the console’s easy-to-read front panel. The DPN-4PS features EDID Pass-Through technology, which enables smooth and efficient switching, making the device easy to implement in virtually any scenario. This plug-and-play EDID functionality makes set up hassle free and simple.

The USB emulation technology utilized by DPN-4PS enables immediate hot key source switching through the connected USB keyboard and mouse. Additional USB peripherals can be attached, like a USB printer. RS-232 control and front panel switching are supported.

Full USB keyboard and mouse emulation

The USB keyboard and mouse emulation utilized by the DPN-4PS provides quick source switching via keyboard hot keys. The DPN-4PS simulates the presence of a keyboard and mouse for every attached computer through a USB cable. This is essential as it simulates the existence of the keyboard and mouse to all the computers in order to switch without interruptions.

Real-World Applications

The DPN-4PS has a broad range of applications, but the main function is to centralize the access of up to four computers that support DisplayPort displays in a single workstation. Not only does it function as a KVM console, but it also supports USB 2.0 functionality. This allows users to access nearly USB device, including those not supported by other KVM switches. The DPN-4PS is the ideal solution for medical, industrial, studio and defense applications, where it is not practical or safe to have multiple CPUs in the vicinity of the workstation.

Diagram:

Model: DPN-4PS Specifications
Description	4-Port DisplayPort KVM Switch with USB 2.0 and Front Panel Push Buttons
Video
Format	DisplayPort 1.2
Input Interface	(4) DisplayPort (female)
Output Interface	(1) DisplayPort (female)
Resolution	Up to 3840x2160 (@30Hz)
Input Equalization	Automatic
USB
Signal Type	USB 2.0, 1.1, and 1.0 w/ internal hub
Input Interface	(4) USB Type B (female)
Output Interface	(2) USB 1.1 Type A (female) for keyboard and mouse (2) USB 2.0 Type A Transparent
Control
Front Panel	Buttons, Select/Switch between Video & Audio sources and view the current selected channel.
RS-232	DB9 Female - 9600 N,8,1, No flow control
Hot Keys	Via Keyboard
Emulation	Keyboard and mouse only
Other
Power	External 100-240 VAC/ 5VDC2A
Dimensions	2” H x 6” D x 12.75” W
Weight	3.75 lbs
Approvals	UL, CE, ROHS Compliant
Operating Temp.	+23 to +95°F (-5 to +35°C)
Storage Temp.	-4 to 185°F (-20 to 85°C)
Humidity	up to 90% (No Condensation)
