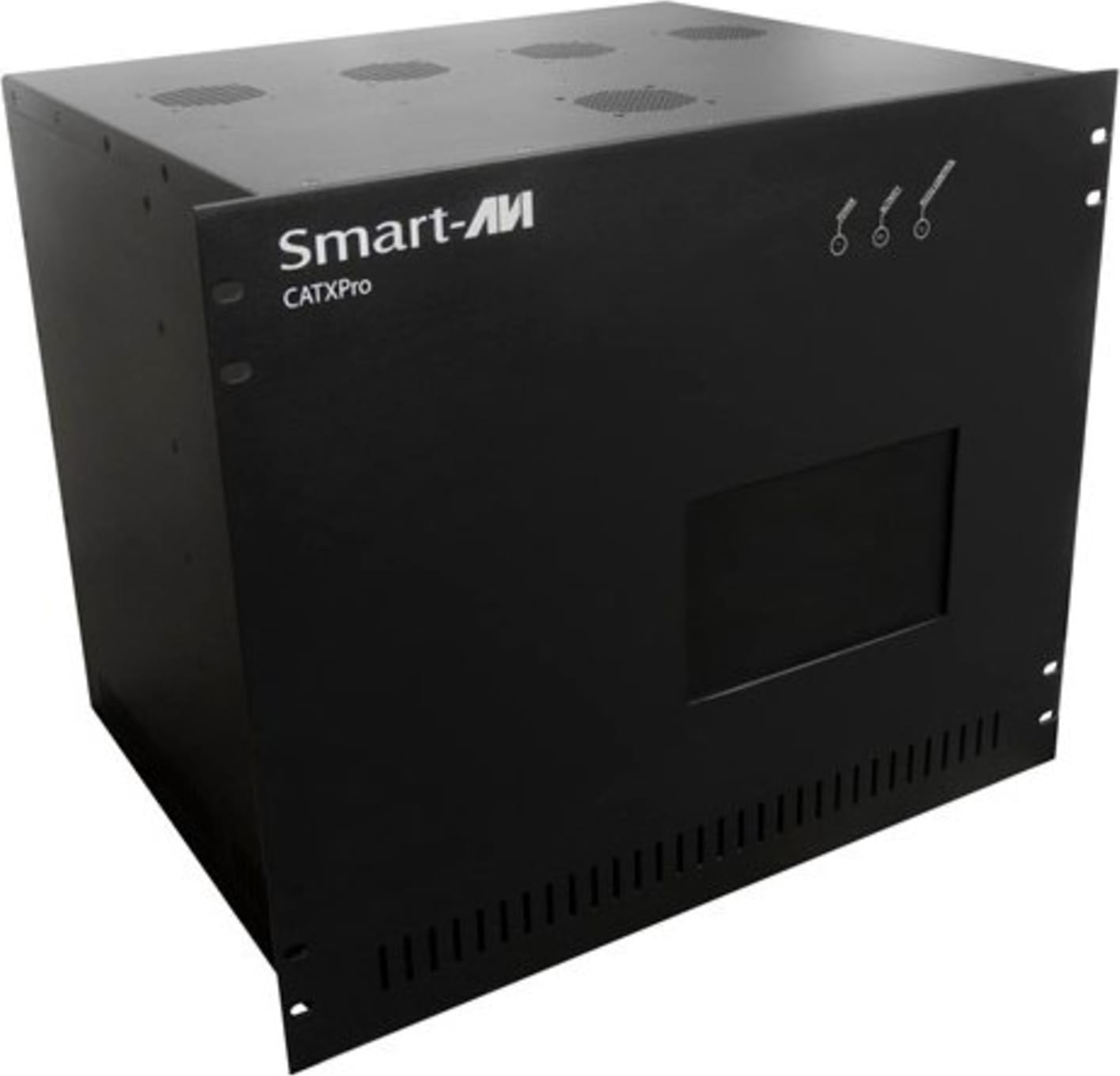

Smart-AVI CSWX32X48S CAT5 Audio/Video and IR/RS232 32 IN X 48 OUT Matrix

CATXPro Matrix Switch

• 32 IN X 48 OUT
• 250MHz video bandwidth
• Infrared, RS232 and TCP/IP control

The Smart-AVI CSWX32X48S CATXPro Matrix Switch connects 32 video sources via transmitters and 48 video displays via receivers with extension up to 1,000 feet via CAT5 cabling. It is capable of routing audio, video, IR and RS/232 signals from several different video sources out to multiple displays (projectors, monitors, etc.) and speakers. Video is transmitted at a resolution of 1920 x 1200 to insure high resolution images. Buffered video outputs and analog delivery of stereo audio maintains optimum integrity throughout the system. Special remote boxes offer compatibility with Video Composite , UXGA, Component Video and S-Video. Furthermore, a single audio/video output can be routed to one or multiple destinations.

Flexible control

• RS-232: Controlling the CATXPro has never been simpler with SmartControl software. With SmartControl, you can assign a unique name to each port on the AVRouter, as well as each display, customizing projects to meet your needs. Although all the functions of the matrix are available locally on the front panel of the CATXPro, using SmartControl allows for customization of all the matrix functions.
• USB: Computers that do not have an RS-232 port can connect to the CATXPro via SmartAVI’s USB to RS-232 converter. Utilize all the control of an RS-232 control interface with the simple and common USB interface. This solution is perfect for laptops and newer computers that only have a USB port.
• IR: Many system professionals prefer the IR control interface because it offers greater flexibility to manage the CATXPro at a distance. In some cases, the displays will not be visible from the matrix. In these situations, it is necessary to control the matrix with Infrared control.
