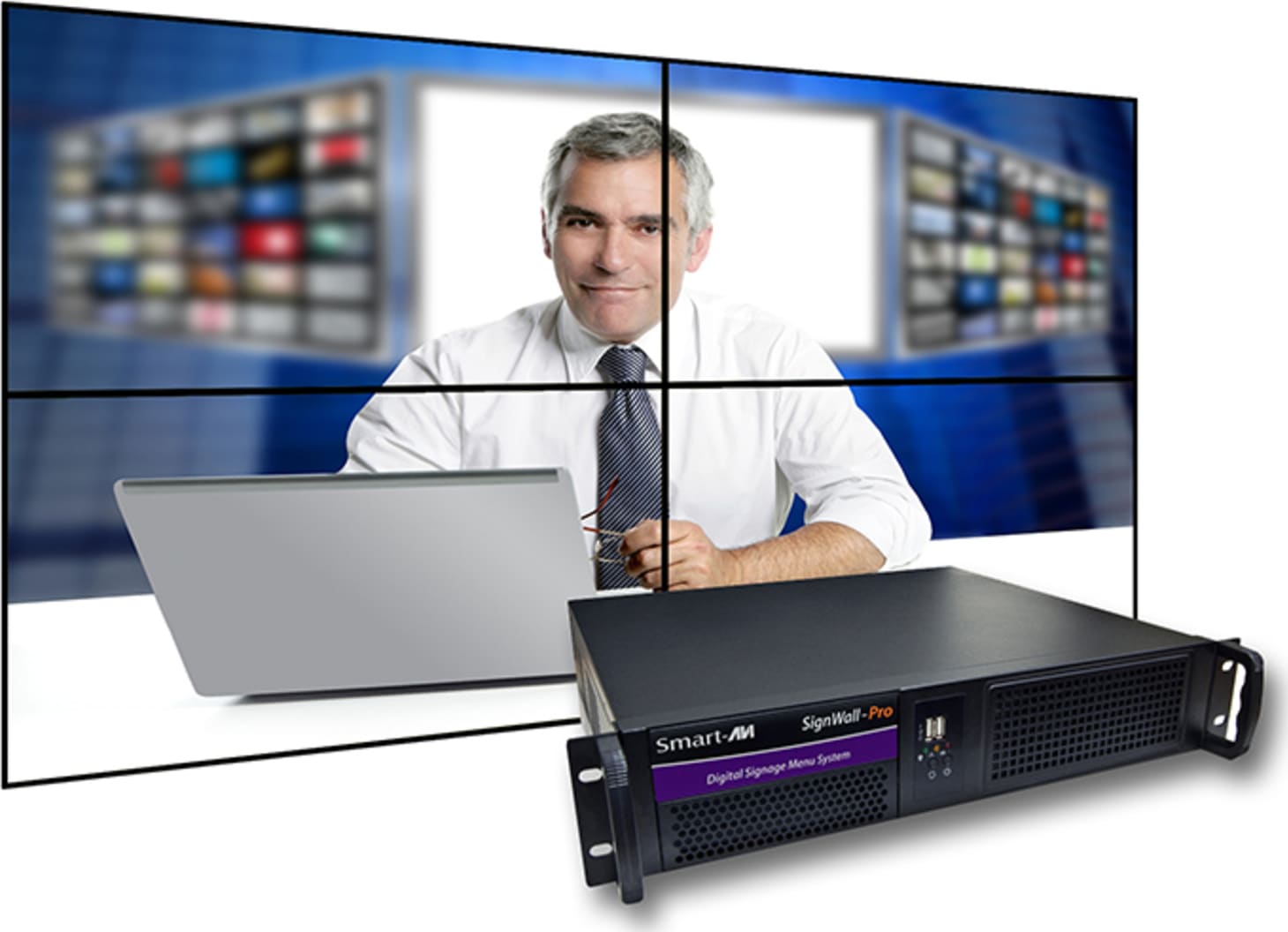

| Model: AP-SVCH-001 Specifications |
| Supported Formats |
| Image |
JPG, GIF, Animated GIF |
| Video |
AVI, WMV9, MPEG-2 PS, MPEG-1, MPEG-2 MP@ML, MPEG-4.2 ASP, MPEG-4.10/H.264, [email protected] |
| Audio |
MPEG-1 Layer I, II, MPEG-4 AAC |
| Other |
Excel, Powerpoint, PDF, HTML, Flash, Quicktime, RSS |
| Video Interface |
| Adapter |
AMD RADEON 5570 GPU @ 650MHz 900345 |
| Memory |
High speed DDR3 Memory |
| Resolution |
Up to 1920 x 1200 @60Hz
Standard Digital
7680 x 1080 (2x2) Eyefinity mode.
1920 x 4320 (1x4) Eyefinity mode.
5760 x 1080 (1x3) Eyefinity mode.
1920 x 3240 (3x1) Eyefinity mode |
| Connector |
(4) DVI-D via VHDCI Breakout Cable |
| Audio interface |
| Connector |
Stereo 3.5mm Female, SPDIF |
| Other interfaces |
| Network |
RJ-45 Gigabit |
| Power |
Internal 100-240 VAC, 50-60 HZ, 500 Watts |
| Environmental |
| Operating temperature |
35º F to 96º F |
| Storage temperature |
-20º F to 140º F |
| Warranty |
1 Year |
| Live capture technical specifications |
| Live Capture HD Input (Features) |
1080p/60 Hz
Can capture HDMI, DVI, YPbPr
Capture LPCM audio signal via HDMI
Can switch signal dynamically, DVI/HDMI, YPbPr
Compatible with CVBS and S-Video
Supports automatic detection of input video format, automatic detection of the valid area of video
Supports for multi-stage image zoom and provides with three scales for image aspect ratio
Supports color adjustment, it can adjust image brightness, contrast, hue, saturation, Gamma; also R, G, B brightness, and contrast can be adjusted separately |
| Hardware Color Conversion |
Output RGB24, RGB32, YUY2, UYVY, I420 |
| De-Interlace |
Vertical Blend and Motion Adaptive |
| System specifications |
| RAM |
4GB (2 x 2GB) 240-Pin DDR3 SDRAM DDR3 1333 (PC3 10666) Desktop Memory |
| Processor |
Intel Core i5 Haswell 3.1 GHz(3.4 GHz Turbo Boost) LGA 1155 95W Quad-Core Desktop Processor
Intel Core i7 Haswell 3.4 GHz(3.8 GHz Turbo Boost) LGA 1155 95W Quad-Core Desktop Processor |
| CVBS Input |
Standard PAL/NTSC |
| Storage |
120GB Internal Solid State Drive (SSD) |
| Operating System |
Windows 7 Pro 64 Bit |
| Input Interface |
1 HDMI interface(DVI)
1 DB9 interface(to YPbPr, S-Video, CVBS,1 unbalanced stereo audio line in) |
| Maximum Sampling Rate |
CVBS: 54MHz (4x Oversampling) HDMI/DVI: 225MHz |
| YPbPr Input Mode |
480i, 576i, 480p, 576p, 720p, 1080i,1080p |
| DVI Input Mode |
480i, 576i, 480p, 576p, 720p, 1080i,1080p |
| HDMI Input Mode |
Up to HDMI 1.3 standard, support 36bit DeepColor |
