Simpson 147 Discontinued Products

Name: Simpson 147 Discontinued Products
Brand: Simpson
SKU: Simpson147
Availability: InStock

0 reviews | Model: Simpson 147

Compare

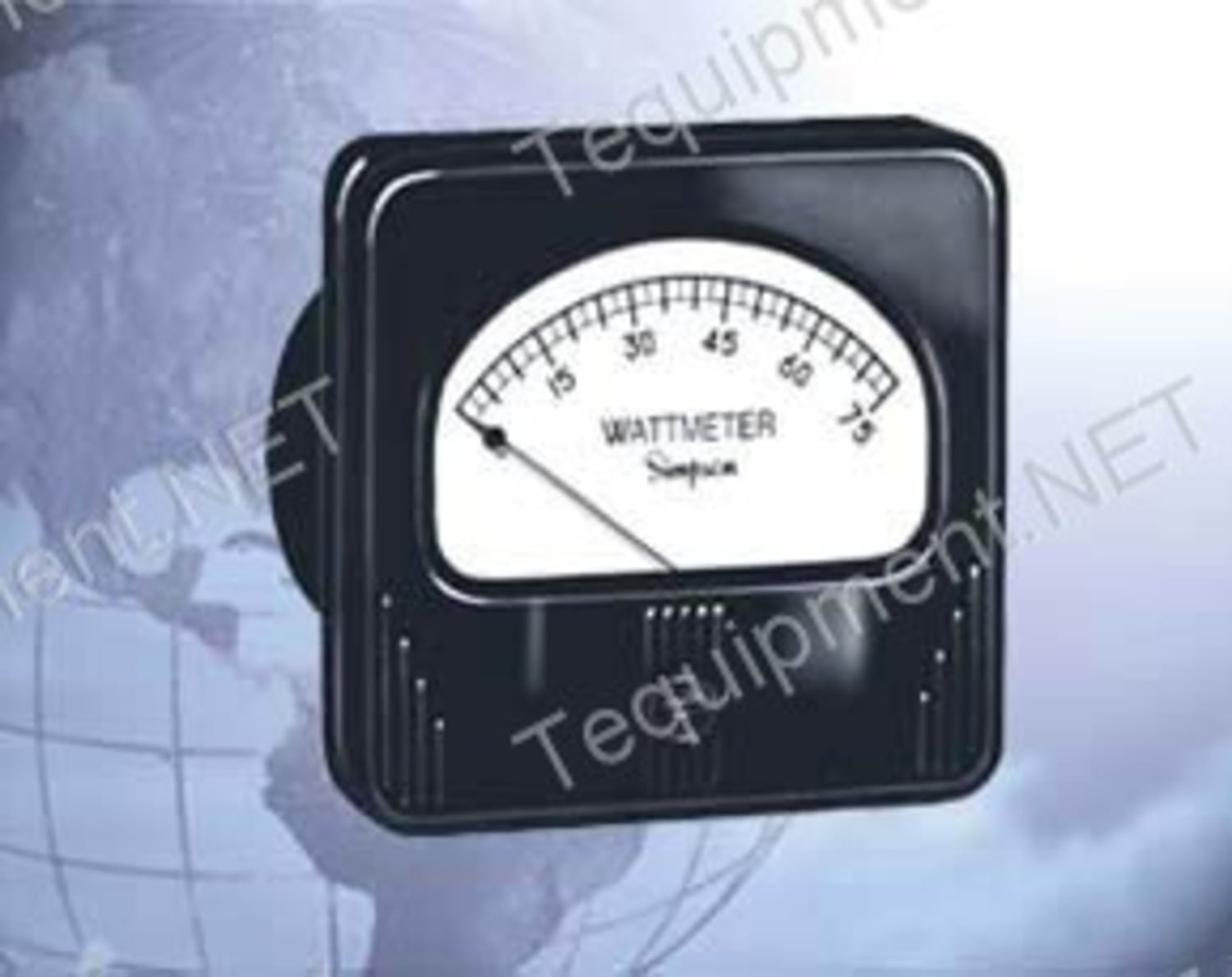

Simpson 147

Phenolic Cases and Glass Windows
Three Popular Sizes: 2-1/2", 3-1/2", 4-1/2"
UL Recognized
Calibration Not Affected When Mounted on Steel

View Product Details

In Stock:

View Payment Options

Recommended for you

For unsurpassed stability and quality performance, look to Simpson’s rectangular style meters. The rectangular style offers a popular look with sharp, beveled edges and glass windows for easy viewing. AC units have either iron-vane or rectifier type movements. The magnetically damped ironvane movement allows the meter to be mounted in steel panels with no effect to its calibration. All ranges are calibrated to 60 Hz. Iron-vane type voltage meters have frequency ranges of 25-125 Hz (for ±1% deviation from value at 60 Hz). Calibration to 800 Hz available on special order (All rectifier types have 25 Hz to 10 KHz range). Three different standard sizes of 2-1/2", 3-1/2", and 4-1/2" are available to measure varying AC voltage ranges. This style meter is ideal for many other electrical functions.

Ordering Options

Accuracy	±2% full scale (F.S.) (iron-vane); ±3% F.S. (rectifier)
Movement	Models 55, 155: Iron-vane, magnetically damped
Models 45, 145	Rectifier type, self-shielding
Suspension	Pivot and jewel
Tracking	±3%
Shielding	Calibration is unaffected by magnetic panel mounting.
Response Time	1.5 seconds maximum
Overload (1 sec.)	10 times F.S.
Overload (Continuous)	1.5 times F.S.
Repeatability	2%
Dial	Sharp clear scale. Each dial arc is calibrated to track the specific type of movement used.
Case	High density black phenolic.
Resistance	±15%
Operating Temperature	-4ºF to +149ºF (-20ºC to +65ºC)
Pointer	Spade pointer, with black matte finish
Scale Length	Model 45: 2.5" (63.5mm) Model 55: 2.3" (58.4mm) Model 145: 1.8" (45.7mm) Model 155: 1.6" (40.6mm)
Net Weight	Model 45: 8oz (0.20kg) Models 55 & 155: 5oz (0.14kg) Model 145: 7oz (0.20kg)
