Simpson TV2TUA200 Panel Meter 2.5 TV TV2 0-200 DCUA

Name: Simpson TV2TUA200 Panel Meter 2.5 TV TV2 0-200 DCUA
Brand: Simpson
SKU: SimpsonTV2TUA200
Price: 127.91 USD
Availability: InStock

0 reviews | Catalog: TV2TUA200 | Model: Simpson TV2TUA200

Simpson Tru-Vue Style Analog Panel Meter

Compare

TV2 0-200 DCUA 2.5 TV

TV2 0-200 DCUA 2.5 TV
Clear acrylic case updates panel design
Black knife-edge pointer for precion reading
Special colored scales or logos available

View Product Details

List Price: $150.50

Your Price: $127.91

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

General Specifications
Accuracy	2% F.S. (iron vane), ±3% F.S. (rectifier)
Movement	DC; Annular, self-shielding AC; Models 953 & 954: Iron-vane, magnetically damped others: Annular, rectified
Suspension	Pivot and jewel or taut band
Tracking	3%
Repeatability	2%, taut band: 0.5%
Shielding	Calibration is unaffected by stray magnetic field or panel mounting.
Response Time	1.5 seconds maximum above10mA
Overload (1 sec.) Overload	10 times F.S.
(Continuous)	1.5 times F.S.
Dial	Sharp clear scale. Each dial arc is calibrated to track the specific type of movement used
Operating Temperature	-4°F to +149°F (-20°C to +65°C)
Resistance	±15% of meter impedance
Case	Clear plastic
Pointer	Knife edge, black matte finish

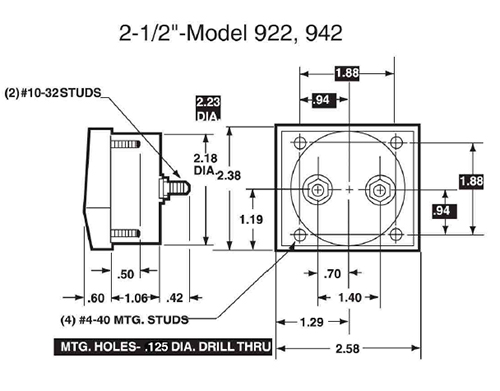

Scale Length	Models 922 & 942: 2.40” (60.96mm)
Net Weight	Models 922 & 942: 4oz (.11kg)

Tech Specs

Panel Meters/Panel Meters Template
Type (Panel Meter )	Analog
Style (Panel Meter)	Rectangular/Square
Number of Inputs (Panel Meters)	Single
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Current
Size-Circular	2.23 IN
Size-Face Width	2 1/2 in
Process Output	No
Control / Alarm Setpoints	No
Water Proof	No
Splash Proof	No
Relay Output	No
Test Equipment General Attributes
Country of Origin	United States
